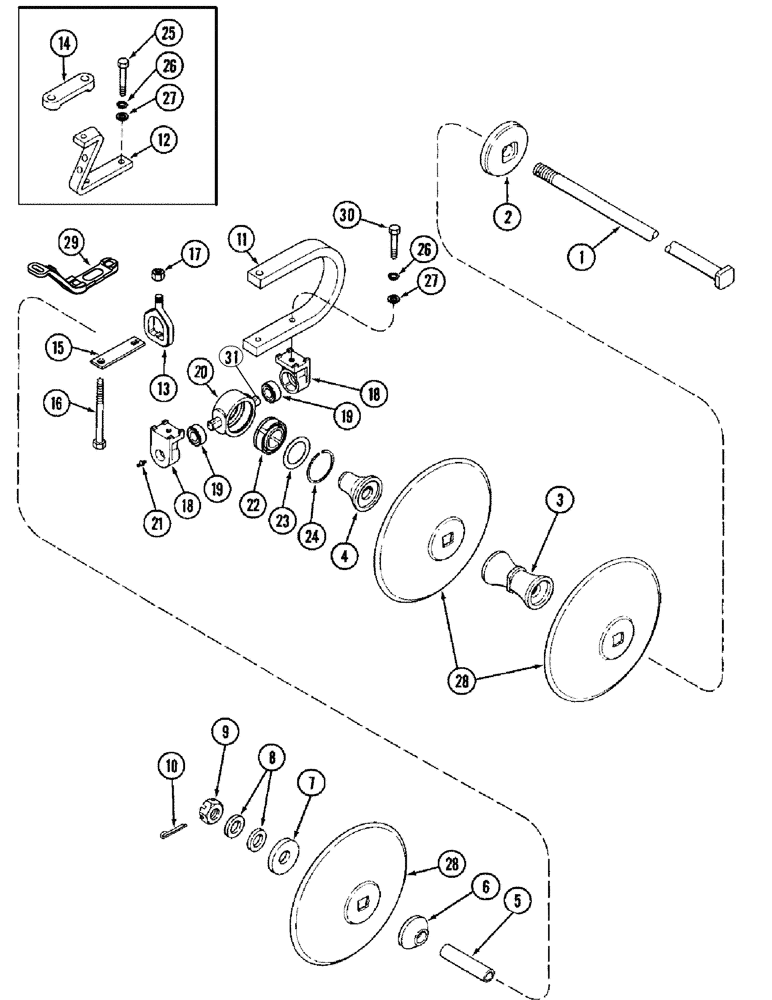

Запчасти Case IH 3950 (9-13) - CUSHION DISK GANG, 7-1/2 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

1263536C6

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

BOLT - arbor, 1244 mm (49 inch) long, 7 blade 7-1/2 ich spacing

1шт.

1

1263612C5

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled

BOLT - arbor, 1438 mm (56-5/8 inch) long, 8 blade 7-1/2 inch spacing

1шт.

1

1263613C5

BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

BOLT - arbor, 1635 mm (64-3/8 inch) long, 9 blade 7-1/2 inch spacing

1шт.

1

1986246C5

SPECIAL BOLT,Square Head, 1-1/2" - 6 x 71.85", Carbon Steel

BOLT - arbor, 1825 mm (71-7/8 inch) long, 10 blade 7-1/2 inch spacing

1шт.

1

1263614C5

BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

BOLT - arbor, 2019 mm (79-1/2 inch) long, 11 blade 7-1/2 inch spacing

1шт.

1

1986269C5

SPECIAL BOLT,Square, 1 1/2" - 6 x 87.17", Carbon Steel

BOLT - arbor, 2214 mm (87-3/16 inch) long, 12 blade 7-1/2 inch spacing

1шт.

1

1263616C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2584mm, Drilled

BOLT - arbor, 2584 mm (101-3/4 inch) long, 14 blade 7-1/2 inch spacing

1шт.

1

1986270C5

SPECIAL BOLT,Square, 1 1/2" - 6 x 110.2", Carbon Steel

BOLT - arbor, 2799 mm (110-1/4 inch) long, 15 blade 7-1/2 inch spacing

1шт.

2

1344908C1

WASHER

- bumper

1шт.

3

1263631C1

SPOOL

- spacing, 7-1/2 inch spacing

1шт.

4

101191C1

SPOOL

- bearing, 4 inch long

1шт.

5

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch long

1шт.

6

101189C1

SPOOL

- bearing, 1-1/2 inch long

1шт.

7

139773C1

WASHER

WASHER - end

1шт.

8

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

- arbor bolt

1шт.

9

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1-1/2 inch NC

1шт.

10

432-1648

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

11

193831A1

SPRING

- cushion gang

1шт.

12

194634A2

SUPPORT

- scraper/trunnion, right-hand (Shown)(If used)

1шт.

12

194633A2

SUPPORT

- scraper/trunnion, left-hand (If used)

1шт.

13

195495A1

EYEBOLT,Spring, 7/8" - 9 x 176mm

BOLT - spring eye

1шт.

14

195496A1

SUPPORT

- cushion spring (If used)

1шт.

15

244620A1

RETAINER

BAR - bolt retainer

1шт.

16

413-1496

BOLT,Hex, 7/8" - 9 x 6", Gr 5

- hex, 7/8 NC x 6 inch

1шт.

17

230-42114

LOCK NUT,7/8"-9, GA

NUT - hex, self-locking, 7/8 inch NC

1шт.

18

195109A1

TRUNNION

PIVOT - trunnion

1шт.

19

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

- pivot

1шт.

20

194704A1

BEARING ASSY,44.96mm ID x 110mm OD x 38.25mm W

TRUNNION ASSEMBLY - bearing Incl 21 - 24,31

1шт.

21

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

22

193906A1

BALL BEARING,44.98mm ID x 110mm OD x 42.85mm W

BEARING - trunnion

1шт.

23

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

WASHER - retaining

1шт.

24

101-21433

SNAP RING,#433, 4.641", Int

RING, SNAP, #433, 4.641", Int

1шт.

25

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

26

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

27

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

1шт.

28

31394R1

DISK HARROW

DISK - solid, 406 x 4.5 mm

1шт.

28

31000R1

DISC

DISK - solid, 559 x 5 mm

1шт.

28

30999R1

DISC

DISK - solid, 508 x 5 mm

1шт.

28

31230R1

DISC

DISK - solid, 457 x 5 mm

1шт.

28

31232R2

DISC

DISK - solid, 508 x 6.5 mm

1шт.

29

329523A1

SUPPORT

- scaper angel, right-hand (Shown)(if used)

1шт.

29

329521A1

SUPPORT

- scaper angel, left-hand (If used)

1шт.

30

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

31

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

Trunion Bearing Housing Incl in 20

1шт.
