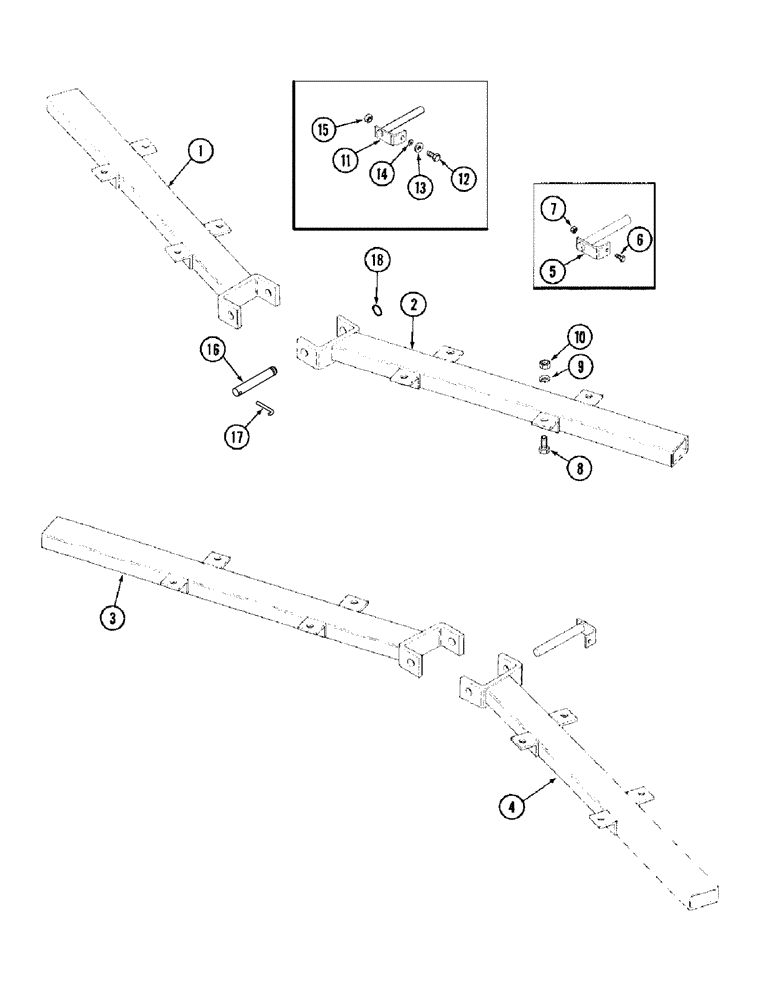

Запчасти Case IH 3950 (9-10) - WING GANG FRAME (09) - CHASSIS/ATTACHMENTS

1

129770C2

TUBE,1384 mm Length

FRAME - wing gang, left-hand front (Shown)

1шт.

Used on disk harrows coded A, B, C, and D.

1шт.

1

129523C1

TUBE,1930 mm Length

FRAME - wing gang, left-hand front

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

Used with wing frame 229416A2, See Figure 9-02

1шт.

1

357767A1

TUBE,1930 mm Length

FRAME - wing gang, left-hand front

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

Used with wing frame 357765A2, See Figure 9-02

1шт.

1

129776C1

TUBE,2495 mm Length

FRAME - wing gang, left-hand front

1шт.

Used on disk harrows coded M, N, O, and P.

1шт.

1

187764A2

TUBE,3075 mm Length

FRAME - wing gang, left-hand front

1шт.

Used on disk harrows coded Q, R, S, T, U, and V.

1шт.

2

129771C2

TUBE,1384 mm Length

FRAME - wing gang, right-hand front (Shown)

1шт.

Used on disk harrows coded A, B, C, and D.

1шт.

2

129524C1

TUBE

FRAME - wing gang, right-hand front

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

Used with wing frame 229417A2, See Figure 9-02

1шт.

2

357768A1

TUBE,1930 mm Length

FRAME - wing gang, right-hand front

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

Used with wing frame 357766A2, See Figure 9-02

1шт.

2

129777C1

TUBE

FRAME - wing gang, right-hand front

1шт.

Used on disk harrows coded M, N, O, and P.

1шт.

2

187765A2

TUBE,3075 mm Length

FRAME - wing gang, right-hand front

1шт.

Used on disk harrows coded Q, R, S, T, U, and V.

1шт.

3

129772C3

FRAME

- wing gang, left-hand rear (Shown)

1шт.

Used on disk harrows coded A, B, C, and D.

1шт.

3

129599C2

TUBE,2142 mm Length

FRAME - wing gang, left-hand rear

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

Used with wing frame 229416A2, See Figure 9-02

1шт.

3

361807A1

TUBE,2142 mm Length

FRAME - wing gang, left-hand rear

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

Used with wing frame 357765A2, See Figure 9-02

1шт.

3

129778C3

TUBE,2670 mm Length

FRAME - wing gang, left-hand rear

1шт.

Used on disk harrows coded M, N, O, and P.

1шт.

3

121423C3

TUBE,3285 mm Length

FRAME - wing gang, left-hand rear

1шт.

Used on disk harrows coded Q, R, S, T, U, and V.

1шт.

4

129773C3

TUBE,1613 mm Length

FRAME - wing gang, right-hand rear (Shown)

1шт.

Used on disk harrows coded A, B, C, and D.

1шт.

4

129600C2

TUBE,2142 mm Length

FRAME - wing gang, right-hand rear

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

Used with wing frame 229417A2, See Figure 9-02

1шт.

4

361808A1

TUBE,2142 mm Length

FRAME - wing gang, right-hand rear

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

Used with wing frame 357766A2, See Figure 9-02

1шт.

4

129779C3

FRAME

- wing gang, right-hand rear

1шт.

Used on disk harrows coded M, N, O, and P.

1шт.

4

121424C3

TUBE,3285 mm Length

FRAME - wing gang, right-hand rear

1шт.

Used on disk harrows coded Q, R, S, T, U, and V.

1шт.

5

139640C1

PIN

- wing hinge (If used)

4шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(If used) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

7

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, , If used Flg, 1/2"-13

4шт.

8

413-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 5

- hex, 7/8 NC x 2-1/4 inch

16шт.

9

492-11088

LOCK WASHER,7/8"

7/8"

16шт.

10

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

16шт.

11

255752A1

PIN ASSY.

PIN - wing hinge (If used)

4шт.

12

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

13

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

14

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

- 1/2 x 3/8 inch

4шт.

15

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

4шт.

16

324477A1

SCREW

PIN - wing hinge (If used)

4шт.

17

491601R1

ROD

PIN

4шт.

18

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.
