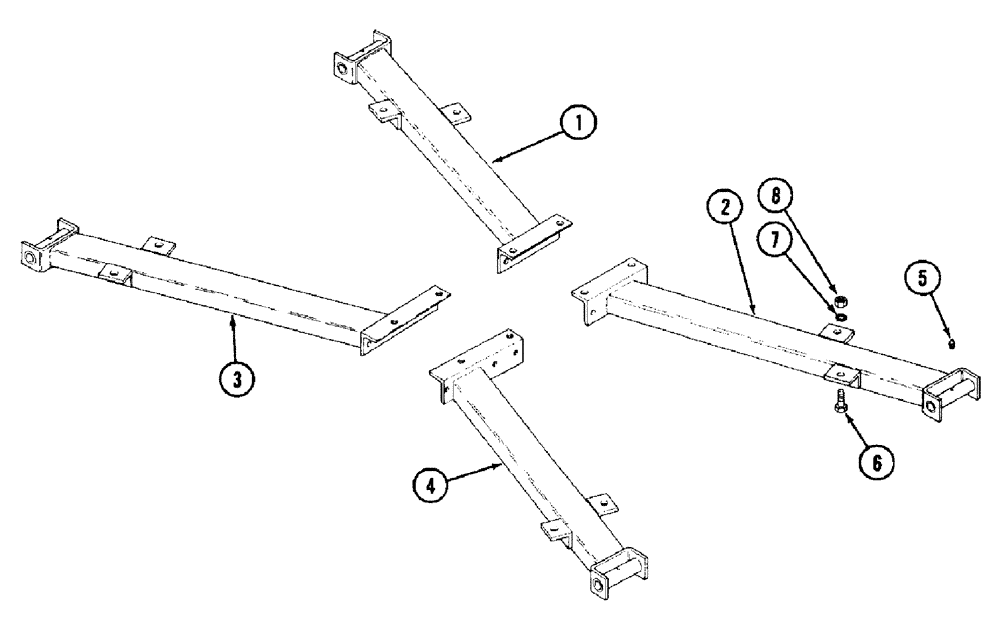

Запчасти Case IH 3950 (9-09) - MAIN GANG FRAME (09) - CHASSIS/ATTACHMENTS

1

111551A1

BAR

FRAME - gang, left-hand front (Shown)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

1

121417C2

BAR

FRAME - gang, left-hand front

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

2

111552A1

BAR

FRAME - gang, right-hand front (Shown)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

2

121418C2

FUNNEL

FRAME - gang, right-hand front

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

3

320300A1

TUBE,744, 504 mm Length

FRAME - gang, left-hand rear (P.I.N. JAG0753803 and after)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

3

129859C2

BAR ASSY.

FRAME - gang, left-hand rear (Shown) (Prior to P.I.N. JAG0753803)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

3

121418C2

FUNNEL

FRAME - gang, left-hand rear

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

4

320301A1

TUBE,744, 504 mm Length

Frame - gang, right-hand rear (P.I.N. JAG0753803 and after)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

4

129860C2

BAR ASSY.

FRAME - gang, right-hand rear (Shown) (Prior to P.I.N. JAG0753803)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

4

121417C2

BAR

FRAME - gang, right-hand rear

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

6

413-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 5

- hex, 7/8 NC x 2-1/4 inch

16шт.

7

492-11088

LOCK WASHER,7/8"

7/8"

16шт.

8

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

16шт.
