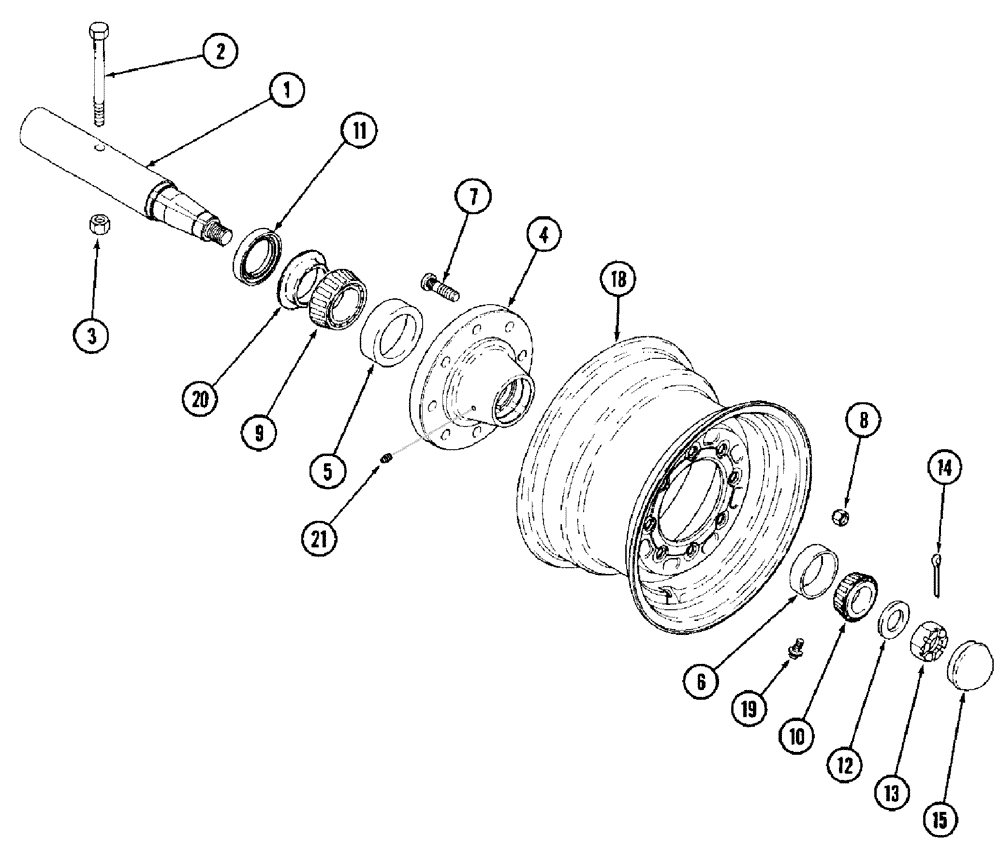

Запчасти Case IH 3950 (9-08) - SPINDLES, HUBS AND WHEELS, 8 BOLT HUBS (09) - CHASSIS/ATTACHMENTS

1

427951A1

SPINDLE

- wheel hub

1шт.

2

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

3

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

87407202

HUB

ASSEMBLY - wheel, 8 bolt, Inc. 4 - 8, 20, 21

1шт.

4

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

5

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - tapered roller bearing, 3-35/64 inch OD

1шт.

6

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

7

557309R1

BOLT

- fluted, 5/8 NF x 2-9/16 inch

8шт.

8

554480R1

WHEEL NUT

- hex, special, 5/8 inch NF

8шт.

9

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - tapered roller bearing, 2-1/16 inch ID

1шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID

1шт.

11

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

- oil

1шт.

12

496-11119

WASHER,1 3/16" x 2 1/4" x .134" HDN

- flat, 1-3/16 x 2-1/4 x 9/64 inch, hardened

1шт.

13

425-1318

SLOTTED NUT,1 1/8"-12, G5

NUT - hex, slotted, 1-1/8 inch NF

1шт.

14

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

15

560950R1

HUB CAP

CAP - wheel hub

1шт.

18

534362R1

WHEEL

- transport, 15 x 10, 8 bolt

1шт.

19

810769C1

VALVE

- inflation

1шт.

20

169328C1

SLEEVE

RING - wear, oil seal

1шт.

21

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.
