Запчасти Case IH 3950 (9-08[01]) - KIT BEARING 8 BOLT HUB (09) - CHASSIS/ATTACHMENTS

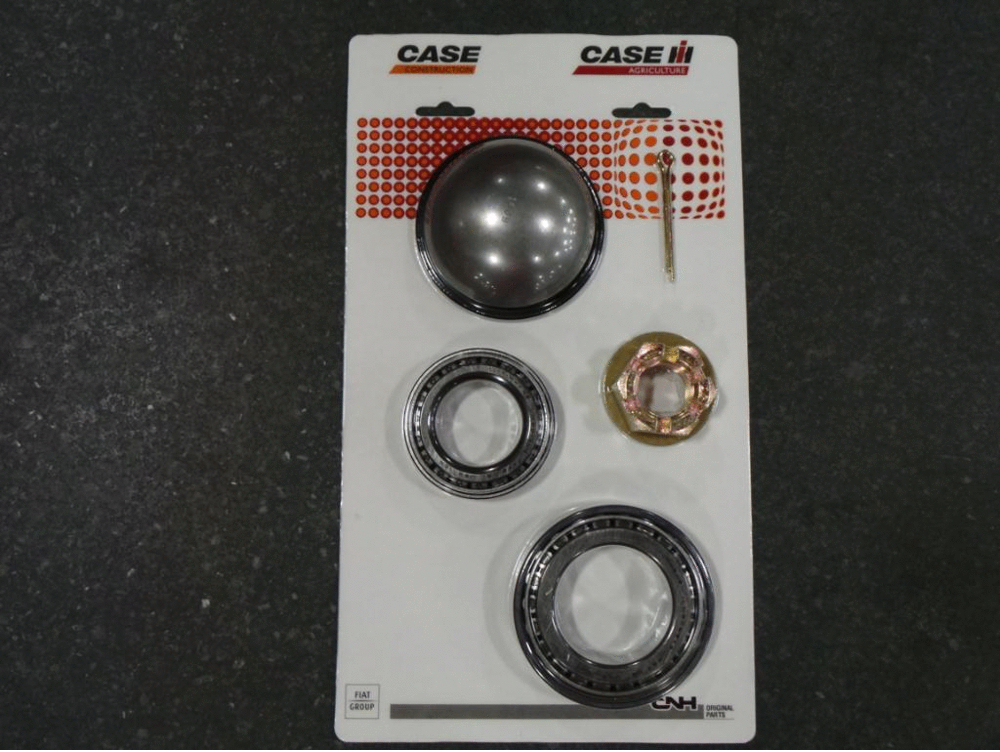

Схема запчастей Case IH 3950 - (9-08[01]) - KIT BEARING 8 BOLT HUB (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

B94340

KIT

Includes 2 - 9

1шт.

2

169328C1

SLEEVE

Steering Hub Oil Seal

1шт.

3

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

Steering Knuckle

1шт.

4

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

1шт.

5

86632555

SLOTTED NUT,1 1/8"-12, G5

1шт.

6

86632593

WASHER,1.19" ID x 2.25" OD x 0.13" Thk

1шт.

7

86900188

CAP

Hub Cap

1шт.

8

87400

COTTER PIN,3/16" x 2"

1шт.

9

648861

BEARING ASSY,53.98mm ID x 123.83mm OD x 36.51mm W

1шт.

Выбрано товаров: 9
