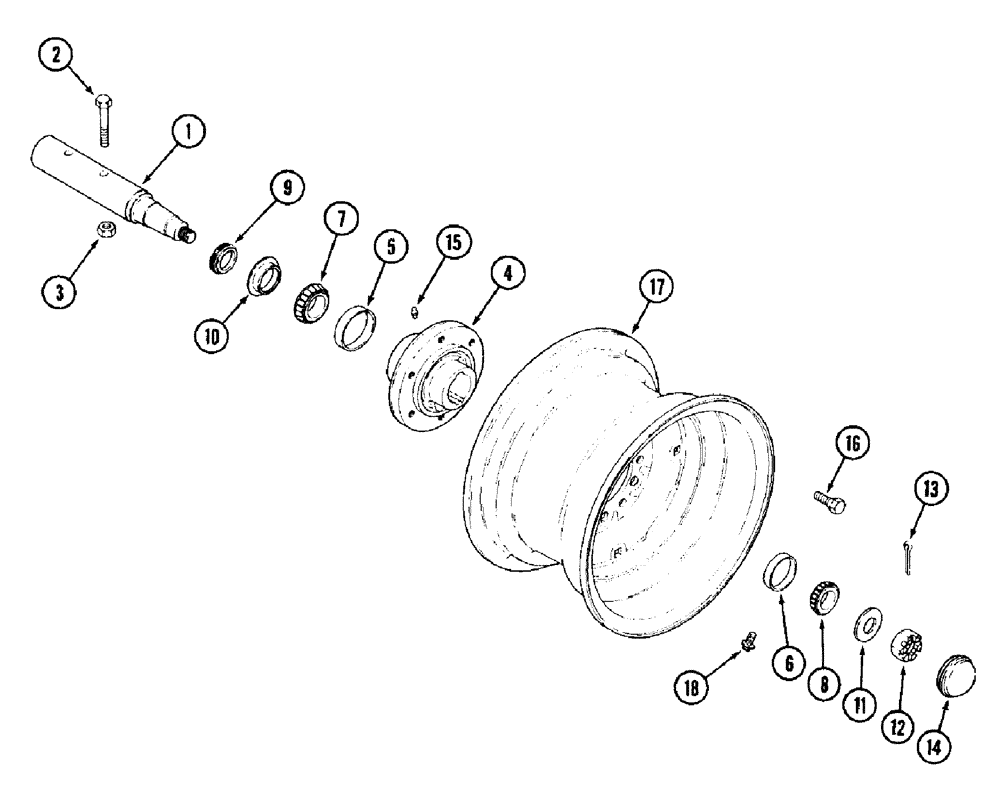

Запчасти Case IH 3950 (9-07) - SPINDLES, HUBS AND WHEELS, 6 BOLT HUBS (09) - CHASSIS/ATTACHMENTS

1

1978726C1

SPINDLE

- wheel hub, 6 bolt

1шт.

2

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

3

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

606468R21

HUB

ASSEMBLY - wheel, 6 bolt, Inc.4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

5

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

6

651817R1

BEARING CUP

CUP - tapered roller bearing

1шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

1шт.

9

594702R91

SEAL

- oil

1шт.

10

594703R1

SLEEVE

RING - wear, 1/2 inch wide

1шт.

11

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, 29/32 x 1-3/4 x 1/8 inch, hardened

1шт.

12

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted, special, 7/8 inch NC

1шт.

13

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

14

224066C1

HUB CAP

CAP - wheel hub

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

16

277538A1

BOLT,1/2" - 20 x 1.42"

- wheel, 1/2 NF x 2 inch

6шт.

17

1277504C1

RIM

WHEEL - 15 (381) x 10 inch (254 mm), 6 bolt

1шт.

18

810769C1

VALVE

- inflation

1шт.

123096A2

WHEEL BEARING KIT

KIT - repair, wheel bearing, Inc. 5 - 10

1шт.
