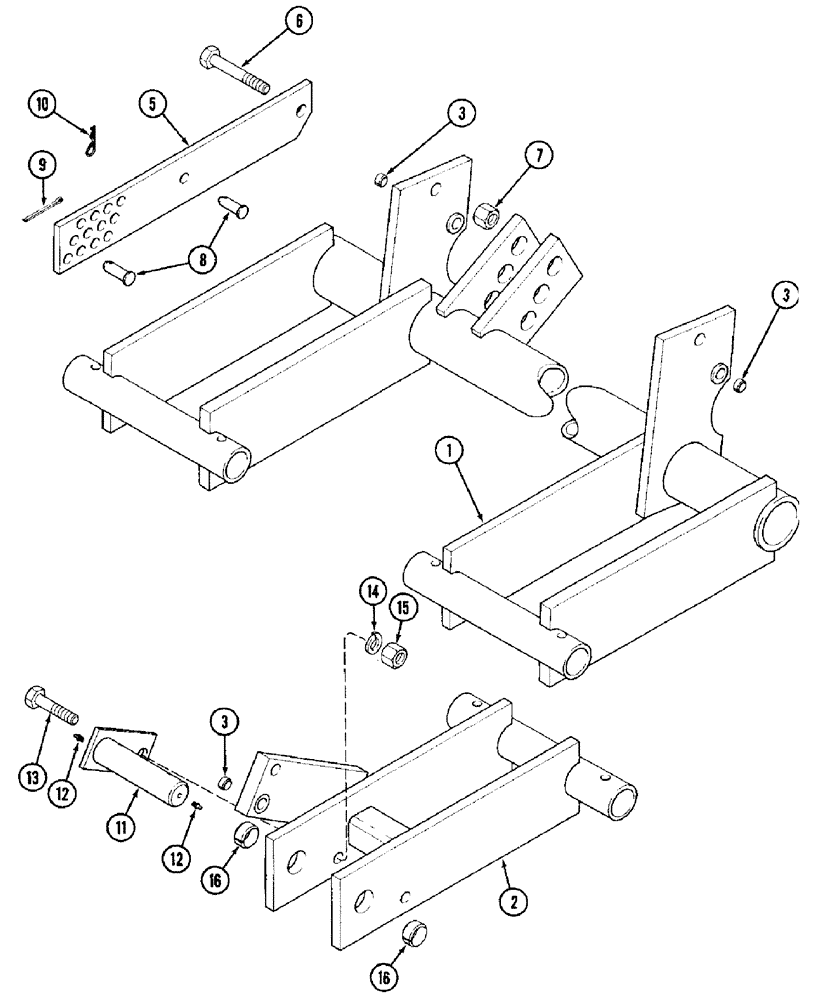

Запчасти Case IH 3950 (9-06) - WHEEL AXLE (09) - CHASSIS/ATTACHMENTS

1

1978718C2

AXLE

- wheel (Shown)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

1

199002A2

AXLE HOUSING

AXLE - wheel

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

2

1978724C3

ARM ASSY.

ARM - wing wheel, right-hand, right-hand (Shown)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

2

1978723C3

ARM ASSY.

ARM - wing wheel, left-hand, left-hand

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

2

225054A2

CENTER AXLE

ARM - wing wheel, right-hand

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

2

225053A2

CENTER AXLE

ARM - wing wheel, left-hand

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

3

64601C1

BUSHING

- tension

4шт.

5

139490C5

BAR

- gauging

8шт.

6

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

4шт.

7

231-41114

LOCK NUT,7/8"-9, GB

NUT - hex, self-locking, 7/8 inch NC

4шт.

8

439-51236

HEADED PIN,19.05mm OD x 57.15mm L

PIN - headed, 3/4 x 2-1/4 inch

8шт.

9

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

10

1978738C1

HAIR PIN COTTER

3/16"

4шт.

11

1284054C1

PIN ASSY.

PIN - wing wheel

2шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

13

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

- hex, 7/8 NC x 2 inch

2шт.

14

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

15

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - tension

4шт.

Order 91317C91

1шт.

1284112C91

PACKAGE

KIT - repair, wing wheel pivot

1шт.

91317C91

RING, SET

KIT - repair, arm pivot

1шт.
