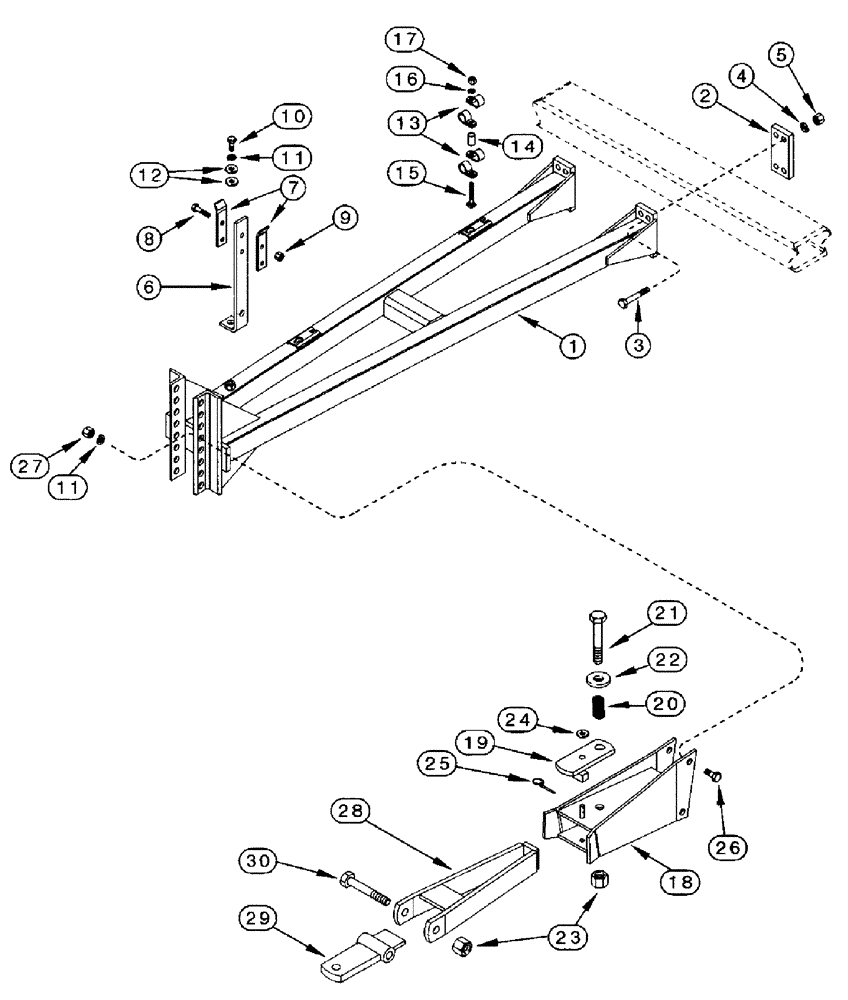

Запчасти Case IH 3950 (9-04) - TRAILING HITCH ATTACHMENT (09) - CHASSIS/ATTACHMENTS

278503A1

ATTACHMENT

- trailing hitch (Machinery item), Inc. 1 - 30

1шт.

1

249795A1

TRAILER HITCH

HITCH - trailing hitch

1шт.

2

249794A1

PLATE

- trailing hitch mount

2шт.

3

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- hex, 5/8 NC x 8-1/2 inch

8шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

425-1010

NUT,5/8"-11, G5

8шт.

6

283538A1

SUPPORT

- hydraulic hose

1шт.

7

58644C1

HOLDER

- hydraulic hose

2шт.

8

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

9

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

10

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch

1шт.

11

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

12

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

2шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

8шт.

14

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

2шт.

15

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - carriage, 3/8 NC x 2-1/4 inch

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

1976393C1

SUPPORT

- hitch

1шт.

19

1976396C2

LATCH ASSY.

LATCH - tank hitch

1шт.

20

1986194C1

SPRING

- tank hitch

1шт.

21

413-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- hex, 1 NC x 6-1/2 inch

1шт.

22

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

23

23443R1

LOCK NUT,1"-8, GC

NUT - hex, 1 inch NC

2шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

25

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

1шт.

26

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

27

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

28

1976399C1

GUIDE

- tongue

1шт.

29

1976402C1

TOW BAR

TONGUE - hitch

1шт.

30

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

- hex, 1 NC x 7 inch

1шт.
