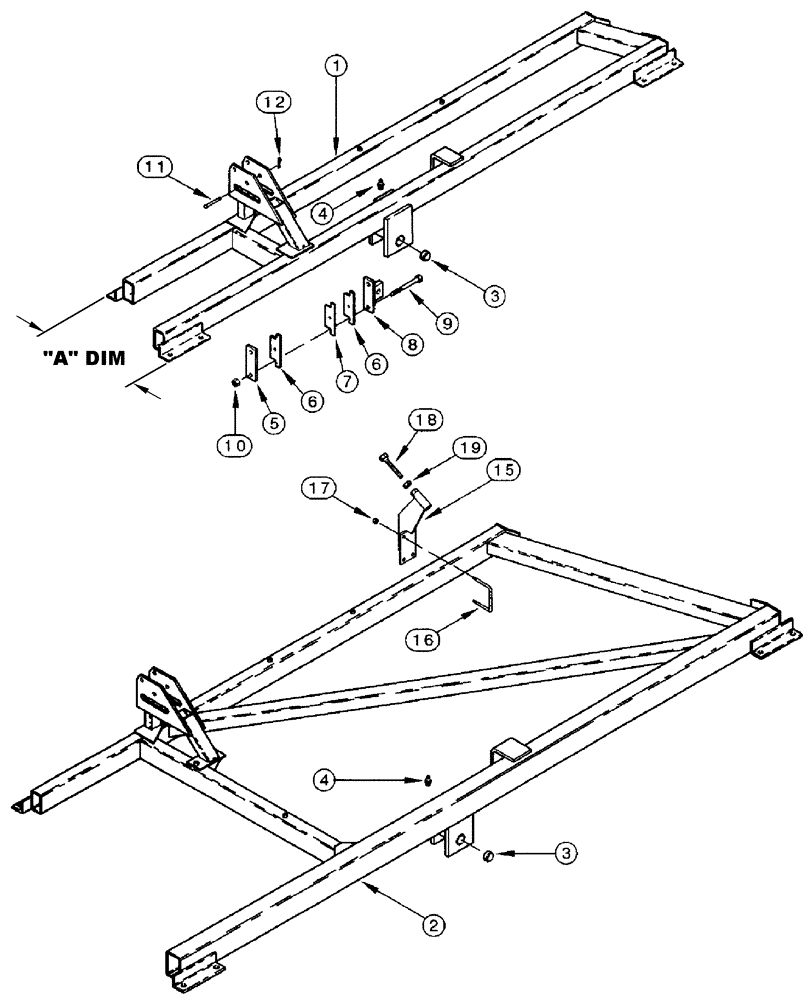

Запчасти Case IH 3950 (9-02) - WING FRAME (09) - CHASSIS/ATTACHMENTS

1

229414A2

FRAME

ASSEMBLY - wing, right-hand (Shown)

1шт.

Used on disk harrows coded A, B, C, and D.

1шт.

1

229413A2

FRAME

ASSEMBLY - wing, left-hand

1шт.

Used on disk harrows coded A, B, C, and D.

1шт.

1

229417A2

FRAME

ASSEMBLY - wing, right-hand (A Dim. 48-3/4 inch (1238 mm)

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

1

357766A1

FRAME

ASSEMBLY - wing, right-hand (A Dim. 41-1/2 inch (1053 mm)

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

1

229416A2

FRAME

ASSEMBLY - wing, left-hand (A Dim. 48-3/4 inch (1238 mm)

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

1

357765A1

FRAME

ASSEMBLY - wing, left-hand (A Dim. 41-1/2 inch (1053 mm)

1шт.

Used on disk harrows coded E, F, G, H, I, J, K, and L.

1шт.

2

187641A2

FUNNEL

FRAME ASSEMBLY - wing, right-hand (Shown)

1шт.

Used on disk harrows coded M, N, O, P, Q, R, S, T, U, and V.

1шт.

2

187572A2

FUNNEL

FRAME ASSEMBLY - wing, left-hand

1шт.

Used on disk harrows coded M, N, O, P, Q, R, S, T, U, and V.

1шт.

3

380134A1

BUSHING,44.65mm ID x 51.61mm OD x 31.75mm L

- frame tension

2шт.

3a

1284053C1

TUBE,44.958 - 46.05 mm ID, 60.325 mm OD, 146 mm Length

SUPPORT - wing wheel pivot (Not shown) 2-3/8 OD

1шт.

3a

251055A1

ASSEMBLY

SUPPORT - wing wheel pivot (Not shown) 2-3/4 OD

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

129683C1

BAR

- wing cylinder anchor

2шт.

6

129685C1

BAR

- spacer

4шт.

7

129686C1

BAR

- spacer

2шт.

8

129682C2

ANCHOR

SUPPORT - wing cylinder anchor (Replaces 129682C1)

2шт.

9

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

4шт.

10

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

4шт.

11

439-5892

HEADED PIN,1/2" x 5 3/4", G5

PIN - headed, 1/2 x 5-3/4 inch

2шт.

12

1978738C1

HAIR PIN COTTER

3/16"

2шт.

15

195708A1

BAR ASSY.

BRACKET - wing stop

2шт.

Used on disk harrows coded M, N, O, P, Q, R, S, T, U, and V.

1шт.

16

409848A1

U-BOLT,5/8" - 11 x 127.80mm W x 107.81mm L, Spcl

- 5/8 inch NC

4шт.

17

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

8шт.

18

413-1632

BOLT,Hex, 1" - 8 x 2", Gr 5

- hex, 1 NC x 2 inch

2шт.

19

425-1416

JAM NUT,Jam, 1"-8, G5

- hex, jam, 1 inch NC

2шт.

1284112C91

PACKAGE

KIT - repair, wing wheel pivot

1шт.
