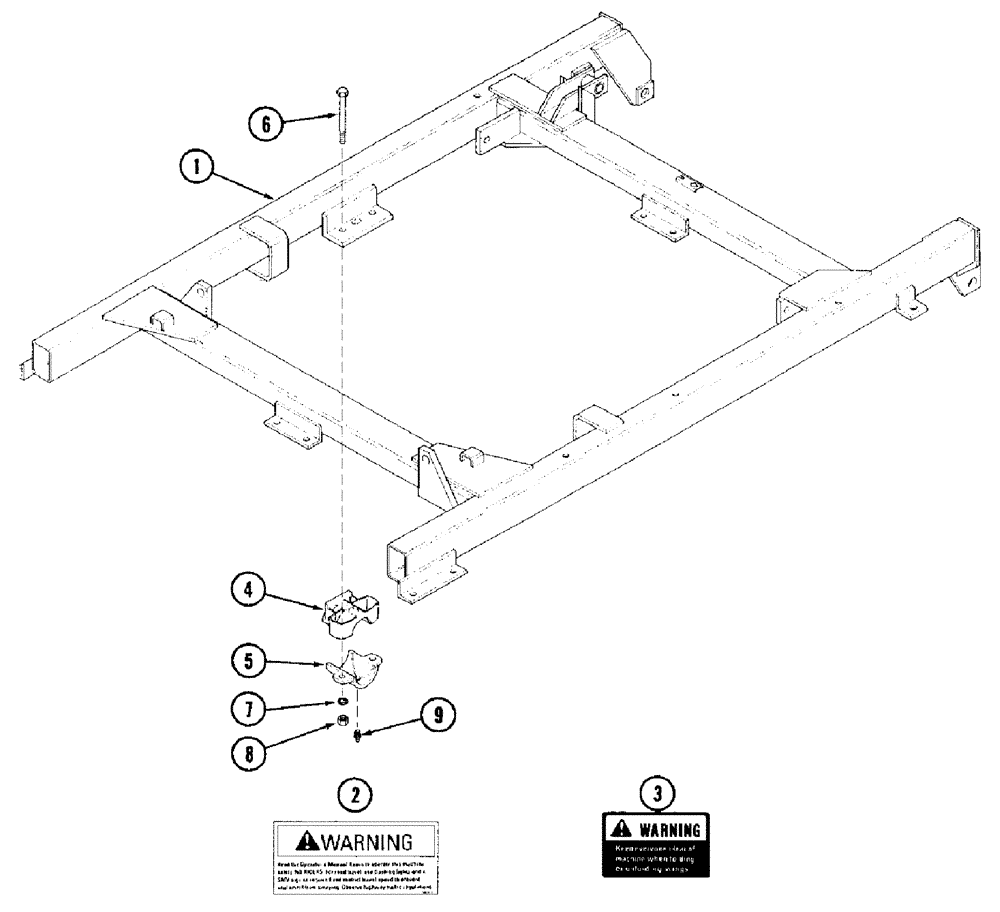

Запчасти Case IH 3950 (9-01) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

323440A1

FRAME ASSY

FRAME - main, includes decals (P.I.N. JAG0753803 and after)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

1

111576A2

FUNNEL

FRAME - main, includes decals (Shown) (Prior to P.I.N. JAG0753803)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

Includes Ref. No. 4 - 8 with 7/8 inch mounting hole

1шт.

1

1986404C2

FRAME ASSY

FRAME - main, includes decals

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

Includes Ref. No. 4 - 8 with 7/8 inch mounting hole

1шт.

2

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual

1шт.

3

59051C2

PRODUCT GRAPHIC

DECAL - Warning, keep everyone clear of machine when folding or unfolding wings

2шт.

4

96273C1

BEARING HALF

BEARING - wheel shaft, 3/4 inch mounting hole

2шт.

4

251151A1

BEARING CAP

BEARING - wheel shaft, 7/8 inch mounting hole

2шт.

5

1284387C1

CAP

- wheel shaft bearing, 3/4 inch mounting hole

2шт.

5

251153A1

BEARING CAP,73 mm

- wheel shaft bearing, 7/8 inch mounting hole

2шт.

6

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

6

413-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 5

- 7/8 NC x 5 inch

4шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

7

492-11088

LOCK WASHER,7/8"

7/8"

4шт.

8

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

8

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.
