Запчасти Case IH 3950 (8-06) - HYDRAULIC WING FOLD CYLINDER, 4 INCH BORE X 42 INCH STROKE (08) - HYDRAULICS

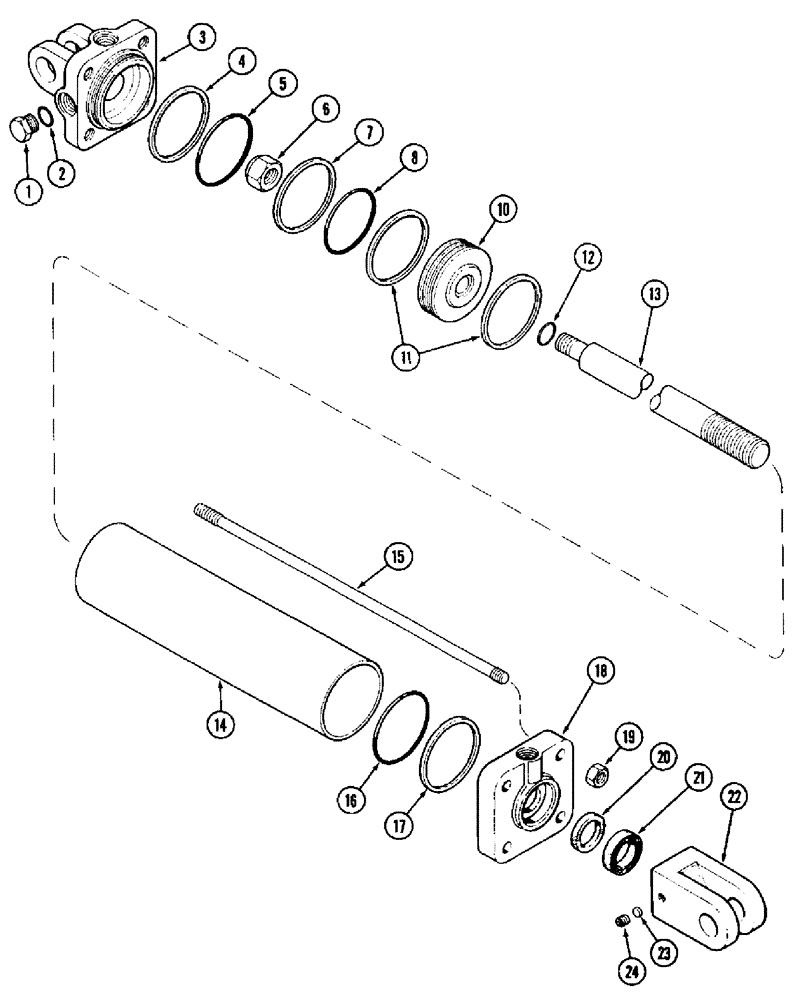

Схема запчастей Case IH 3950 - (8-06) - HYDRAULIC WING FOLD CYLINDER, 4 INCH BORE X 42 INCH STROKE (08) - HYDRAULICS
20
6
13
23
8
14
3
19
16
21
10
2
22
15
12
7
4
1
5
11
18
24
17

Артикул

Название

Примечание

Количество

1344929C2

CYLINDER

ASSEMBLY - 102 (4) ID x 1067 mm (42 inch) stroke, Inc. 1 - 24

1шт.

Used on disk harrows coded M, N, O, P, Q, R, S, T, U, and V.

1шт.

87388875R

REMAN-HYD CYLINDER

3950, Reman For New P/N 1344929C2

1шт.

87388875C

CORE-HYD CYLINDER

Return Number

1шт.

1

214389

PLUG,3/4" - 16 ORB

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

1282336C1

HEAD

- cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

10

92521C1

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

13

1986507C1

ROD

- piston

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

15

1986510C1

BOLT

- tie, cylinder

4шт.

16

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

18

1282337C1

GLAND

- cylinder

1шт.

19

25-1010

NUT,5/8"-11, G5

4шт.

20

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

21

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

22

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

23

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

24

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

79979C3

SEAL KIT

KIT - seal, Inc. 2, 4, 5, 7, 8, 12, 16, 17, 20, 21

1шт.
