Запчасти Case IH 3950 (8-04) - HYDRAULIC TRANSPORT CYLINDER, 3-1/2 INCH BORE X 8 INCH (08) - HYDRAULICS

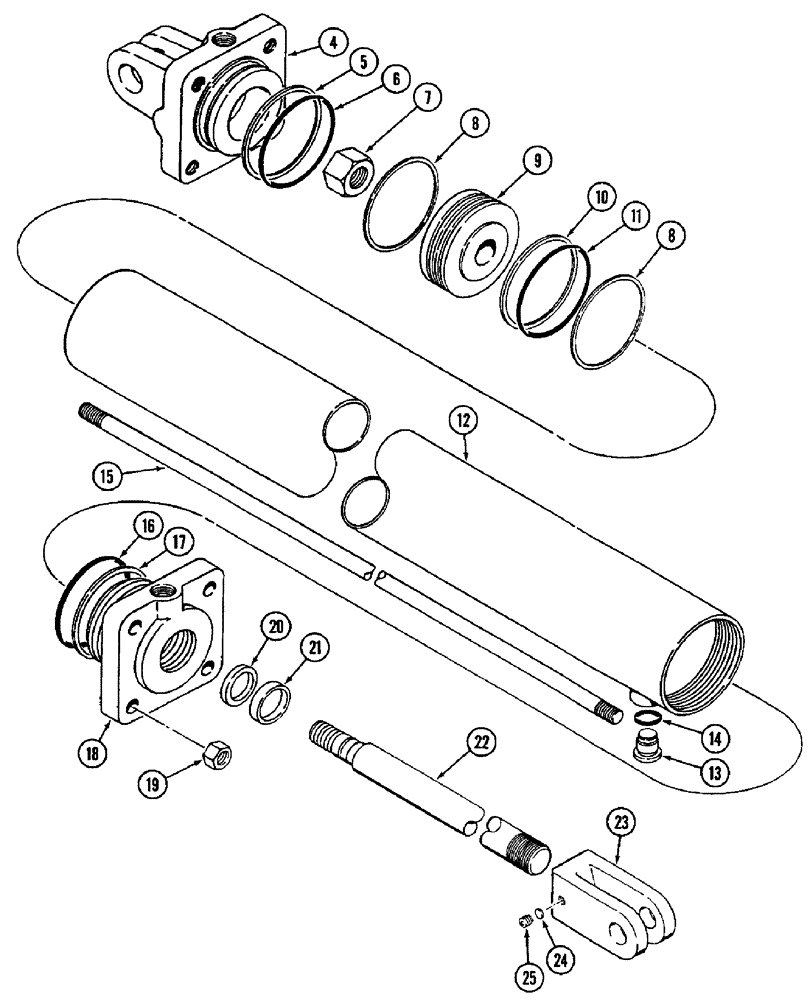

Схема запчастей Case IH 3950 - (8-04) - HYDRAULIC TRANSPORT CYLINDER, 3-1/2 INCH BORE X 8 INCH (08) - HYDRAULICS
10
18
13
15
22
6
25
16
7
4
12
5
14
19
9
11
20
8
17
8
24
23
21

Артикул

Название

Примечание

Количество

1282324C93

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, Inc. 4 - 25

1шт.

84255910R

REMAN-HYD CYLINDER

3950, Reman For New P/N 1282324C93

1шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

4

1542789C1

HEAD

- cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - Cylinder head

1шт.

7

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

8

NSS

NOT SOLD SEPARAT

RING - wear, piston, grade 8

2шт.

9

85179C1

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston seal

1шт.

12

145424C2

HYD TUBE,3.5" ID, 10.167" Length

TUBE - cylinder, Inc. 13, 14

1шт.

13

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch, gland

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

18

1272826C1

HEAD

GLAND - cylinder

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

21

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

22

145231C1

PISTON ROD

ROD - piston

1шт.

23

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

24

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

25

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

84919C2

GASKET KIT

KIT - seal, Inc. 5, 6, 8, 11, 14, 16, 17, 20, 21

1шт.

Выбрано товаров: 26
