Запчасти Case IH 3950 (8-03) - HYDRAULIC LEVELING HITCH SYSTEM (IF EQUIPPED) (08) - HYDRAULICS

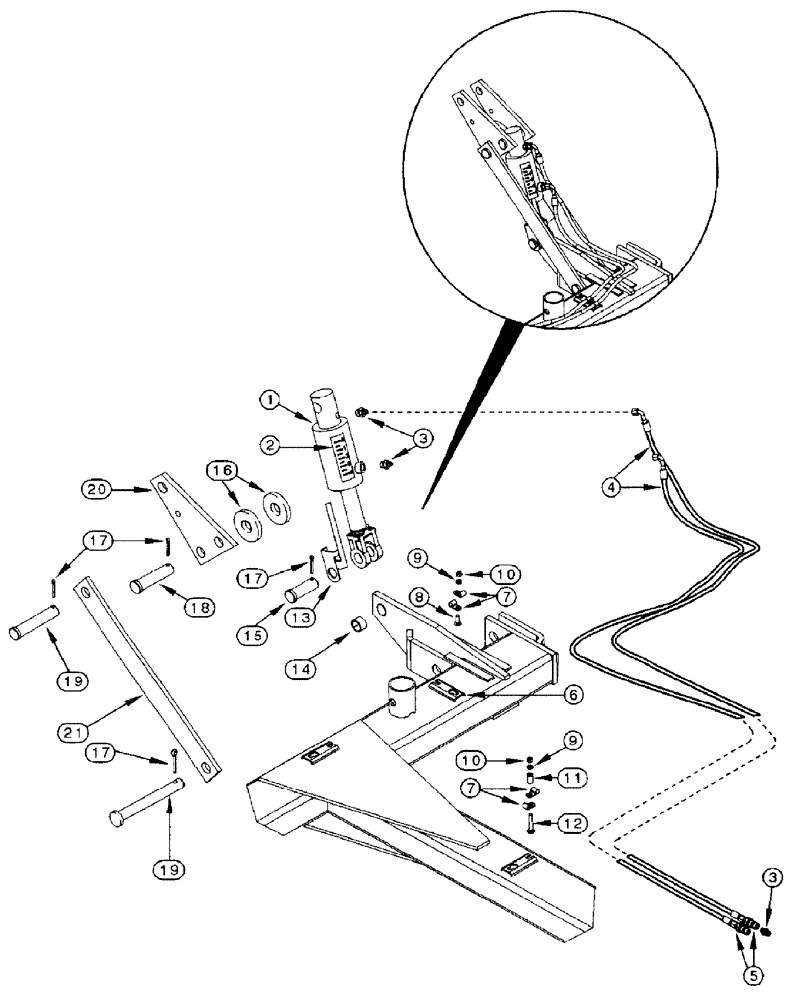

Схема запчастей Case IH 3950 - (8-03) - HYDRAULIC LEVELING HITCH SYSTEM (IF EQUIPPED) (08) - HYDRAULICS
10
19
3
17
2
8
5
7
16
7
17
15
19
6
11
9
10
3
18
4
20
13
21
14
17
12
9
1

Артикул

Название

Примечание

Количество

278504A1

ATTACHMENT

- hydraulic leveling (Machinery item), Inc. 1 - 18

1шт.

1

248945A1

CYLINDER

ASSEMBLY - leveling hitch, (3-1/2) ID x (3-1/2 inch) stroke, See Figure 8-07

1шт.

2

275739A1

DECAL

- leveling hitch

1шт.

3

1263477C3

HYD CONNECTOR

ADAPTER - restrictor

4шт.

4

275943A1

HOSE,6.35mm ID x 4750mm L

- 4750 mm (187 inch) long

2шт.

5

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - hose support

1шт.

7

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

6шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

9

492-11038

LOCK WASHER,3/8"

3шт.

10

425-106

NUT,3/8"-16, Cl 5

3шт.

11

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

2шт.

12

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - carriage, 3/8 NC x 2-1/4 inch

2шт.

13

275447A1

INDICATOR

- leveling hitch

1шт.

14

112886C1

BUSHING

- tension

1шт.

15

427-20350

CLEVIS PIN,31.75mm OD x 88.9mm L

PIN - clevis, 1-1/4 x 3-1/2 inch

1шт.

16

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 1/8 inch

6шт.

17

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

18

427-20500

CLEVIS PIN,31.75mm OD x 125mm L

PIN - headed, 1-1/4 x 4-1/2 inch

1шт.

19

427-20625

CLEVIS PIN,31.75mm OD x 158.75mm L

PIN - clevis, 1-1/4 x 6-1/4 inch, hardened

2шт.

20

139483C1

BAR

- bellcrank

2шт.

21

147755C2

BAR

BRACE - hitch crank

2шт.

Выбрано товаров: 22
