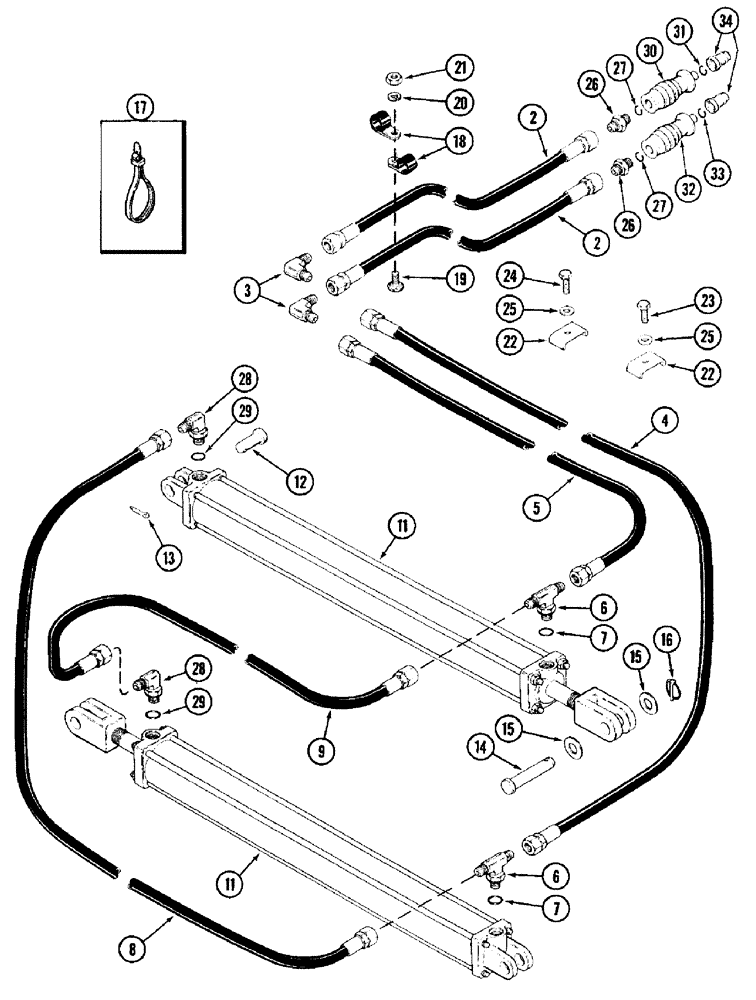

Запчасти Case IH 3950 (8-02) - HYDRAULIC FOLD SYSTEM (08) - HYDRAULICS

2

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - 4445 mm (175 inch) long

2шт.

3

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, 9/16-18 inch flare x flare

2шт.

4

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE - 3175 mm (125 inch) long

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

4

1254526C2

HOSE ASSY.

HOSE - 3429 mm (135 inch) long

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

5

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE - 3175 mm (125 inch) long

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

5

129768C1

HYDRAULIC HOSE

HOSE - 2921 mm (115 inch) long

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

6

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 adj O-ring branch x 9/16-18 inch flare x flare

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

812382C1

HYDRAULIC HOSE

HOSE - 1270 mm (50 inch) long

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

8

147876C1

HYDRAULIC HOSE

HOSE - 1143 mm (45 inch) long

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

9

812382C1

HYDRAULIC HOSE

HOSE - 1270 mm (50 inch) long

1шт.

Used on disk harrows coded A, B, C, D, E, F, G, and H.

1шт.

9

139517C1

HYDRAULIC HOSE

HOSE - 2032 mm (80 inch) long

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U, and V.

1шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - wing fold, See Figure 8-5

2шт.

Used on disk harrows coded A, B, C, D, E, F, G, H, I, J, K, and L.

1шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - wing fold, See Figure 8-6

2шт.

Used on disk harrows coded M, N, O, P, Q, R, S, T, U, and V.

1шт.

12

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch, hardened

2шт.

13

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

14

427-20500

CLEVIS PIN,31.75mm OD x 125mm L

PIN - headed, 1-1/4 x 4-1/2 inch

2шт.

15

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

- flat, 1-5/16 x 63/64 x 11/64 inch, hardened

4шт.

16

A30338

PIN

- lock

2шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

6шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

16шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

8шт.

20

492-11038

LOCK WASHER,3/8"

8шт.

21

425-106

NUT,3/8"-16, Cl 5

8шт.

22

129886C2

CLAMP

-

1шт.

23

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

1шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

25

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

26

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Inc. 27

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. 29

2шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

236882A1

GRIP

KIT - HYDRA-GRIP, black, 1/2 inch PT (If used)

1шт.

236879A1

GRIP

KIT - HYDRA-GRIP, black, 3/4-16 inch O-ring boss, Inc. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

HYDRA-GRIP - black, extend, 3/4-16 inch O-ring boss, Inc. 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

32

NSS

NOT SOLD SEPARAT

HYDRA-GRIP - black, retract, 3/4-16 inch O-ring boss, Inc. 33

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

34

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.
