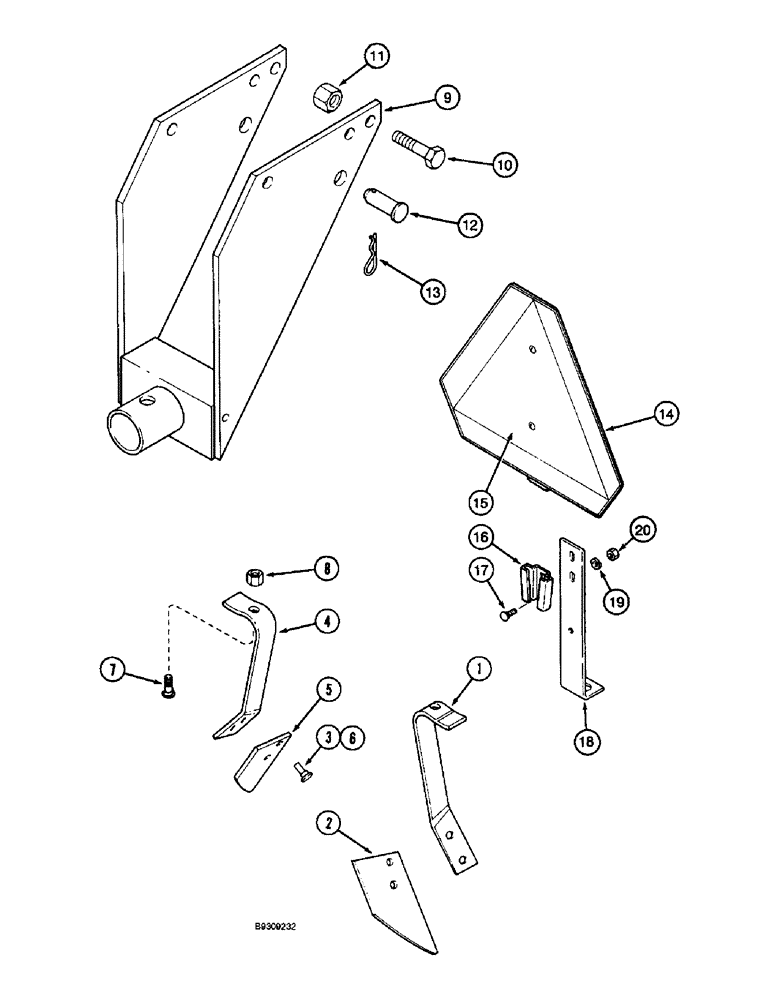

Запчасти Case IH 3900 (9-42) - DISK SCRAPER / REAR JACKSTAND ASSEMBLY / SMV EMBLEM (09) - CHASSIS/ATTACHMENTS

121120C92

SCRAPER

ASSEMBLY - disk, RH front/LH rear, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - scraper, right-hand

1шт.

2

121118C1

BLADE

- scraper

1шт.

3

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

121119C92

SCRAPER

ASSEMBLY - disk,LH front/RH rear, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - scraper, left-hand

1шт.

5

121118C1

BLADE

- scraper

1шт.

6

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

7

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special

1шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

1986459C1

TUBE

JACKSTAND ASSEMBLY - rear, order from Machinery Price List, Includes: Ref. 9 - 13

1шт.

9

1986014C1

BAR

BRACKET - jackstand

1шт.

10

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

11

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

12

439-51228

HEADED PIN,3/4" x 1 3/4"

PIN - headed, 3/4 x 1-3/4 inch

2шт.

13

1978739C1

PIN

- hair

2шт.

14

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle

1шт.

15

321-4311

DECAL

- SMV emblem

1шт.

16

A59457

BRACKET

- mounting

1шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

18

131946C1

SUPPORT

BRACKET - mounting

1шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
