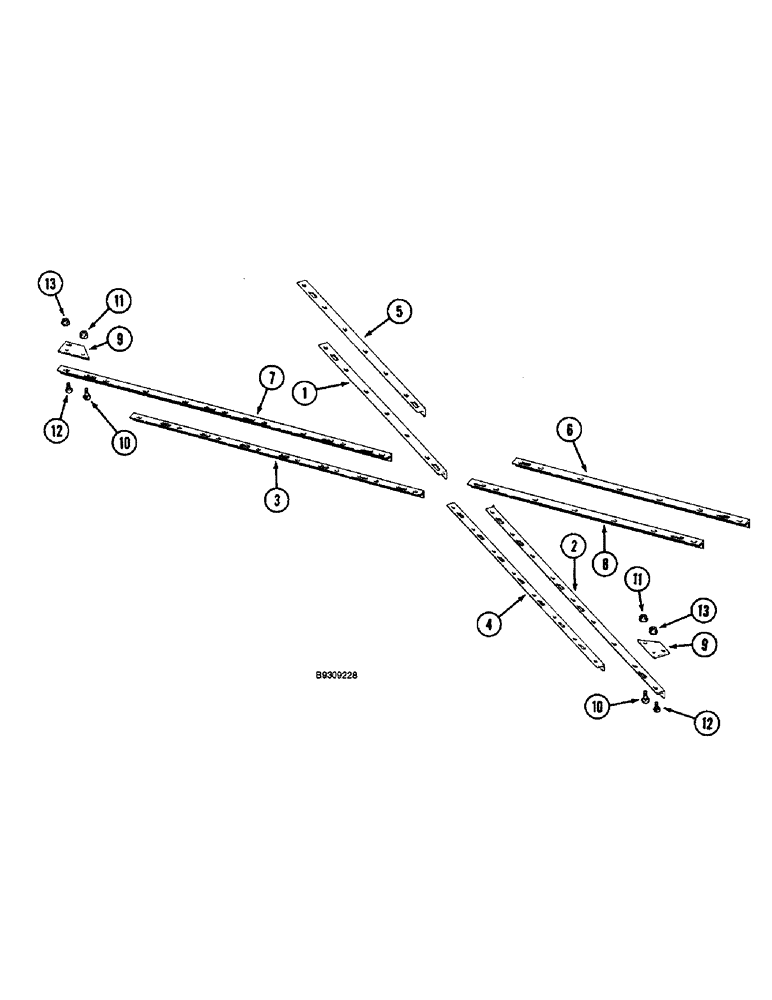

Запчасти Case IH 3900 (9-34) - WING GANG SCRAPER SUPPORT, 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

121499C1

SCRAPER

SUPPORT - scraper, 52-13/16 inch long, left-hand front (See Note A)

1шт.

Used on Disk Harrow coded C, D and E.

1шт.

1

121129C3

ANGLE

SUPPORT - scraper, 70-5/16 inch long, left-hand front, not shown (See Note B)

1шт.

Used on Disk Harrow coded F, G, H, M, N and O.

1шт.

1

121160C2

ANGLE

SUPPORT - scraper, 88-3/8 inch long, left-hand front, not shown (See Note C)

1шт.

Used on Disk Harrow coded P, Q and R.

1шт.

1

121166C3

ANGLE

SUPPORT - scraper, 57-3/8 inch long, left-hand front, not shown

1шт.

Used on Disk Harrow coded W, X and Y.

1шт.

2

121500C1

ANGLE

SUPPORT - scraper, 52-13/16 inch long, right-hand front

1шт.

Used on Disk Harrow coded C, D and E.

1шт.

2

121128C3

ANGLE

SUPPORT - scraper, 70-5/16 inch long, right-hand front, not shown

1шт.

Used on Disk Harrow coded F, G, H, M, N and O.

1шт.

2

121159C2

ANGLE

SUPPORT - scraper, 88-3/8 inch long, right-hand front, not shown

1шт.

Used on Disk Harrow coded P, Q and R.

1шт.

2

121165C3

ANGLE

SUPPORT - scraper, 57-3/8 inch long, right-hand front, not shown

1шт.

Used on Disk Harrow coded W, X and Y.

1шт.

3

121130C1

ANGLE

SUPPORT - scraper, 66-7/16 inch long, left-hand rear

1шт.

Used on Disk Harrow coded C, D and E.

1шт.

3

129740C2

ANGLE

SUPPORT - scraper, left-hand rear, not shown

1шт.

Used on Disk Harrow coded F, G and H.

1шт.

3

121188C2

ANGLE

SUPPORT - scraper, left-hand rear, not shown

1шт.

Used on Disk Harrow coded M, N and O.

1шт.

3

121035C1

ANGLE

SUPPORT - scraper, left-hand rear, not shown

1шт.

Used on Disk Harrow coded P, Q and R.

1шт.

3

121166C3

ANGLE

SUPPORT - scraper, 57-3/8 inch long, left-hand rear, not shown

1шт.

Used on Disk Harrow coded W, X and Y.

1шт.

4

121131C1

ANGLE

SUPPORT - scraper, 66-7/16 inch long, right-hand rear

1шт.

Used on Disk Harrow coded C, D and E.

1шт.

4

129741C2

ANGLE

SUPPORT - scraper, right-hand rear, not shown

1шт.

Used on Disk Harrow coded C, D and E.

1шт.

4

121189C2

ANGLE

SUPPORT - scraper, right-hand rear, not shown

1шт.

Used on Disk Harrow coded M, N and O.

1шт.

4

121036C1

ANGLE

SUPPORT - scraper, right-hand rear, not shown

1шт.

Used on Disk Harrow coded P, Q and R.

1шт.

4

121165C3

ANGLE

SUPPORT - scraper, 57-3/8 inch long, right-hand rear, not shown

1шт.

Used on Disk Harrow coded W, X and Y.

1шт.

5

121499C1

SCRAPER

SUPPORT - scraper, 52-13/16 inch long, left-hand front, not shown

1шт.

Used on Disk Harrow coded W, X and Y.

1шт.

6

121500C1

ANGLE

SUPPORT - scraper, 52-13/16 inch long, right-hand front, not shown

1шт.

Used on Disk Harrow coded W, X and Y.

1шт.

7

121123C2

ANGLE

SUPPORT - scraper, left-hand rear, not shown

1шт.

Used on Disk Harrow coded W, X and Y.

1шт.

8

121122C2

ANGLE

SUPPORT - scraper, right-hand rear, not shown

1шт.

Used on Disk Harrow coded W, X and Y.

1шт.

9

1986108C1

BAR

- furrow filler scraper extension

2шт.

10

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

1шт.

11

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8

1шт.

12

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining

2шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
