TANDEM DISC HARROW
/
(3900) - CASE IH FLEX WING TANDEM DISK HARROW (1/91-12/97)
/
(09) - CHASSIS/ATTACHMENTS
/

(9-32) - WING GANG SCRAPER SUPPORTS, 7-1/2 INCH SPACING

Запчасти Case IH 3900 (9-32) - WING GANG SCRAPER SUPPORTS, 7-1/2 INCH SPACING (09) - CHASSIS/ATTACHMENTS

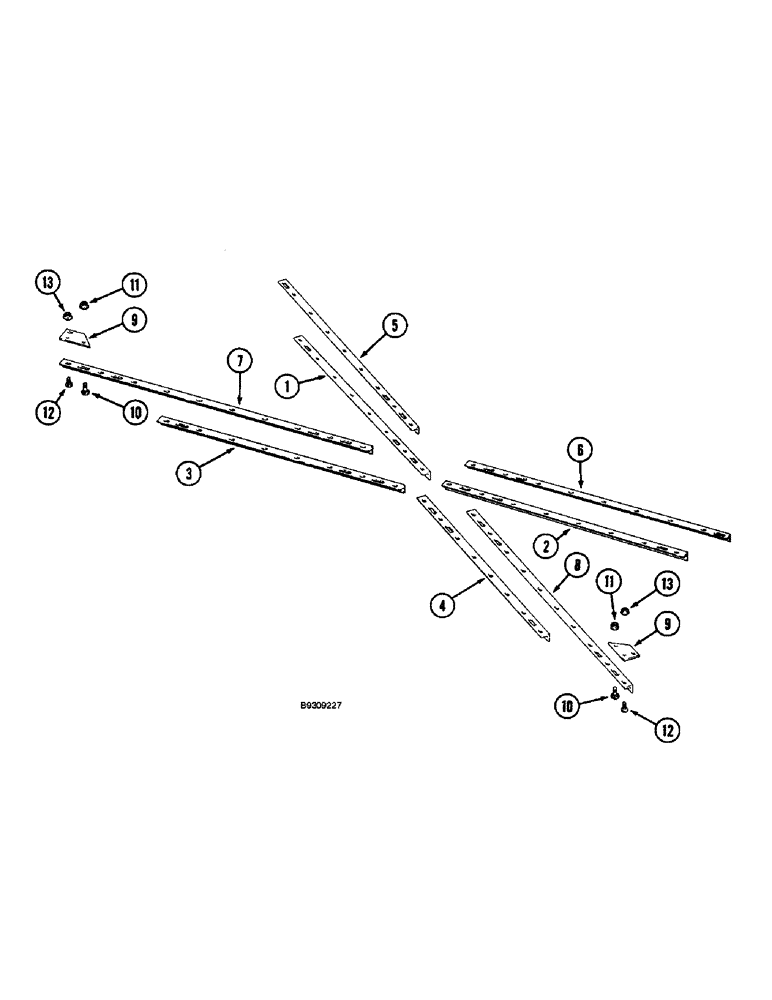

Схема запчастей Case IH 3900 - (9-32) - WING GANG SCRAPER SUPPORTS, 7-1/2 INCH SPACING (09) - CHASSIS/ATTACHMENTS
2
8
4
11
9
13
12
5
7
10
8
13
3
11
12
10
1
9

№

Артикул

Название

Примечание

Количество

1

129813C2

ANGLE

SUPPORT - scraper, 52-5/16 inch long, left-hand front, not shown

1шт.

Used on Disk Harrow coded A and B.

1шт.

1

121149C2

ANGLE

SUPPORT - scraper, 74-7/8 inch long, left-hand front, not shown

1шт.

Used on Disk Harrow coded I, J, K and L.

1шт.

1

129817C1

ANGLE

SUPPORT - scraper, 97-7/16 inch long, left-hand front, not shown

1шт.

Used on Disk Harrow coded S and T.

1шт.

1

1986253C1

ANGLE

SUPPORT - scraper, 55-15/16 inch long, left-hand front

1шт.

Used on Disk Harrow coded U and V.

1шт.

2

129814C2

ANGLE

SUPPORT - scraper, 52-5/16 inch long, right-hand front, not shown

1шт.

Used on Disk Harrow coded A and B.

1шт.

2

121148C2

ANGLE

SUPPORT - scraper, 74-7/8 inch long, right-hand front, not shown

1шт.

Used on Disk Harrow coded I, J, K and L.

1шт.

2

129818C1

ANGLE

SUPPORT - scraper, 97-7/16 inch long, right-hand front, not shown

1шт.

Used on Disk Harrow coded S and T.

1шт.

2

1986254C1

ANGLE

SUPPORT - scraper, 55-15/16 inch long, right-hand front

1шт.

Used on Disk Harrow coded U and V.

1шт.

3

121138C1

ANGLE

SUPPORT - scraper, 63-1/2 inch long, left-hand rear, not shown

1шт.

Used on Disk Harrow coded A and B.

1шт.

3

139550C1

ANGLE

SUPPORT - scraper, left-hand rear, not shown

1шт.

Used on Disk Harrow coded I, J, K and L.

1шт.

3

139551C1

ANGLE

SUPPORT - scraper, left-hand rear, not shown

1шт.

Used on Disk Harrow coded S and T.

1шт.

3

1986253C1

ANGLE

SUPPORT - scraper, 55-15/16 inch long, left-hand rear

1шт.

Used on Disk Harrow coded U and V.

1шт.

4

121138C1

ANGLE

SUPPORT - scraper, 63-1/2 inch long, right-hand rear, not shown

1шт.

Used on Disk Harrow coded A and B.

1шт.

4

139550C1

ANGLE

SUPPORT - scraper, right-hand rear, not shown

1шт.

Used on Disk Harrow coded I, J, K and L.

1шт.

4

139551C1

ANGLE

SUPPORT - scraper, right-hand rear, not shown

1шт.

Used on Disk Harrow coded S and T.

1шт.

4

1986254C1

ANGLE

SUPPORT - scraper, 55-15/16 inch long, right-hand rear

1шт.

Used on Disk Harrow coded U and V.

1шт.

5

121142C2

ANGLE

SUPPORT - scraper, 59-13/16 inch long, left-hand front, not shown

1шт.

Used on Disk Harrow coded U and V.

1шт.

6

121141C2

ANGLE

SUPPORT - scraper, 59-13/16 inch long, right-hand front, not shown

1шт.

Used on Disk Harrow coded U and V.

1шт.

7

1986449C1

ANGLE

SUPPORT - scraper, left-hand rear, not shown

1шт.

Used on Disk Harrow coded U and V.

1шт.

8

1986449C1

ANGLE

SUPPORT - scraper, right-hand rear, not shown

1шт.

Used on Disk Harrow coded U and V.

1шт.

9

1986108C1

BAR

- furrow filler scraper extension

2шт.

Used on Disk Harrow coded U and V.

1шт.

10

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

1шт.

11

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8

1шт.

12

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining

2шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
