TANDEM DISC HARROW
/
(3900) - CASE IH FLEX WING TANDEM DISK HARROW (1/91-12/97)
/
(09) - CHASSIS/ATTACHMENTS
/

(9-30) - MAIN GANG SCRAPER SUPPORTS, 7-1/2 INCH SPACING / 9 INCH SPACING

Запчасти Case IH 3900 (9-30) - MAIN GANG SCRAPER SUPPORTS, 7-1/2 INCH SPACING / 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS

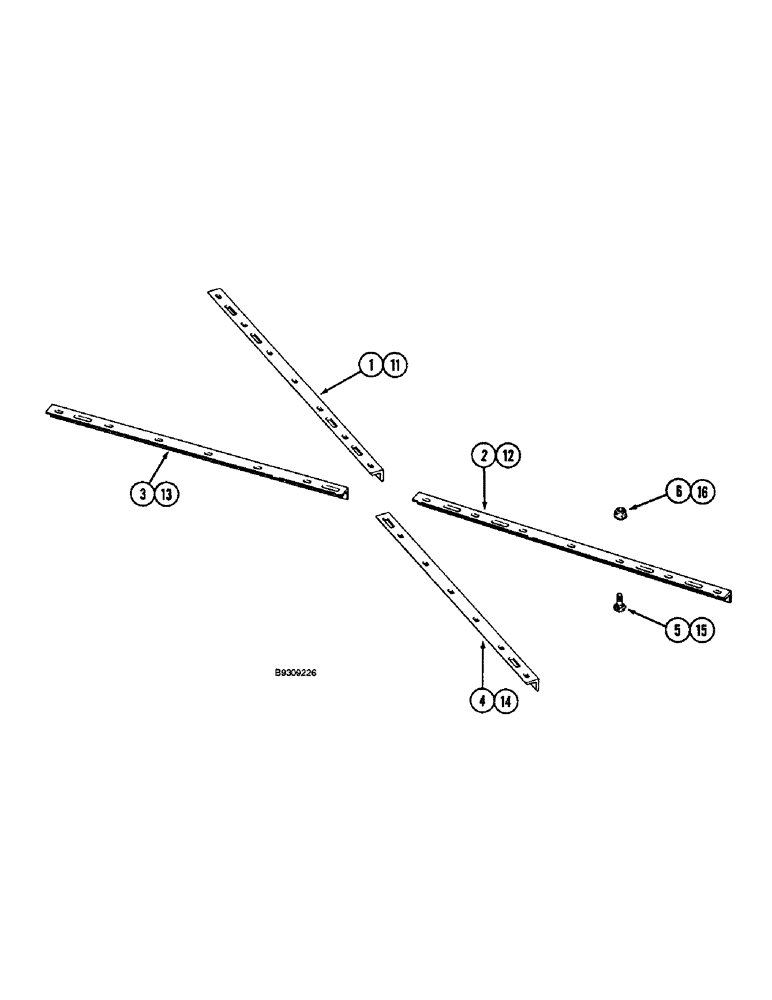

Схема запчастей Case IH 3900 - (9-30) - MAIN GANG SCRAPER SUPPORTS, 7-1/2 INCH SPACING / 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS
15
3
13
11
6
4
2
1
5
16
12
14

№

Артикул

Название

Примечание

Количество

1

121173C2

ANGLE

SUPPORT - scraper, 48-7/16 inch long, left-hand front, 7-1/2 inch spacing

1шт.

Used on Disk Harrow coded A, B, I and J.

1шт.

1

121138C1

ANGLE

SUPPORT - scraper, 63-1/2 inch long, left-hand front, not shown, 7-1/2 inch spacing

1шт.

Used on Disk Harrow coded K, L, S, T, U and V.

1шт.

2

121173C2

ANGLE

SUPPORT - scraper, 48-7/16 inch long, right-hand front, 7-1/2 inch spacing

1шт.

Used on Disk Harrow coded A, B, I and J.

1шт.

2

121138C1

ANGLE

SUPPORT - scraper, 63-1/2 inch long, right-hand front, not shown, 7-1/2 inch spacing

1шт.

Used on Disk Harrow coded K, L, S, T, U and V.

1шт.

3

129906C1

ANGLE

SUPPORT - scraper, 44-13/16 inch long, left-hand rear, 7-1/2 inch spacing

1шт.

Used on Disk Harrow coded A, B, I and J.

1шт.

3

121141C2

ANGLE

SUPPORT - scraper, 59-13/16 inch long, left-hand rear, not shown, 7-1/2 inch spacing

1шт.

Used on Disk Harrow coded K, L, S, T, U and V.

1шт.

4

129905C1

NUT

SUPPORT - scraper, 44-13/16 inch long, right-hand rear, 7-1/2 inch spacing

1шт.

Used on Disk Harrow coded A, B, I and J.

1шт.

4

121142C2

ANGLE

SUPPORT - scraper, 59-13/16 inch long, right-hand rear, not shown, 7-1/2 inch spacing

1шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch, 7-1/2 inch spacing

8шт.

6

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8, 7-1/2 inch spacing

8шт.

11

121164C3

ANGLE

SUPPORT - scraper, 48-7/16 inch long, left-hand front, 9 inch spacing

1шт.

Used on Disk Harrow coded C, D, E, F, G and H.

1шт.

11

121131C1

ANGLE

SUPPORT - scraper, 66-7/16 inch long, left-hand front, not shown, 9 inch spacing

1шт.

Used on Disk Harrow coded M, N, O, P, Q, R, S, W, X and Y.

1шт.

12

121163C3

ANGLE

SUPPORT - scraper, 48-7/16 inch long, right-hand front, 9 inch spacing

1шт.

Used on Disk Harrow coded C, D, E, F, G and H.

1шт.

12

121130C1

ANGLE

SUPPORT - scraper, 66-7/16 inch long, right-hand front, not shown, 9 inch spacing

1шт.

Used on Disk Harrow coded M, N, O, P, Q, R, S, W, X and Y.

1шт.

13

129788C2

ANGLE

SUPPORT - scraper, 43-13/16 inch long, left-hand rear, 9 inch spacing

1шт.

Used on Disk Harrow coded C, D, E, F, G and H.

1шт.

13

121500C1

ANGLE

SUPPORT - scraper, 52-13/16 inch long, left-hand rear, not shown, 9 inch spacing

1шт.

Used on Disk Harrow coded M, N, O, P, Q, R, S, W, X and Y.

1шт.

14

129789C2

ANGLE

SUPPORT - scraper, 48-13/16 inch long, right-hand rear, 9 inch spacing

1шт.

Used on Disk Harrow coded C, D, E, F, G and H.

1шт.

14

121499C1

SCRAPER

SUPPORT - scraper, 52-13/16 inch long, right-hand rear, not shown, 9 inch spacing

1шт.

Used on Disk Harrow coded M, N, O, P, Q, R, S, W, X and Y.

1шт.

15

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch, 9 inch spacing

8шт.

16

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8, 9 inch spacing

8шт.

Выбрано товаров: 35
