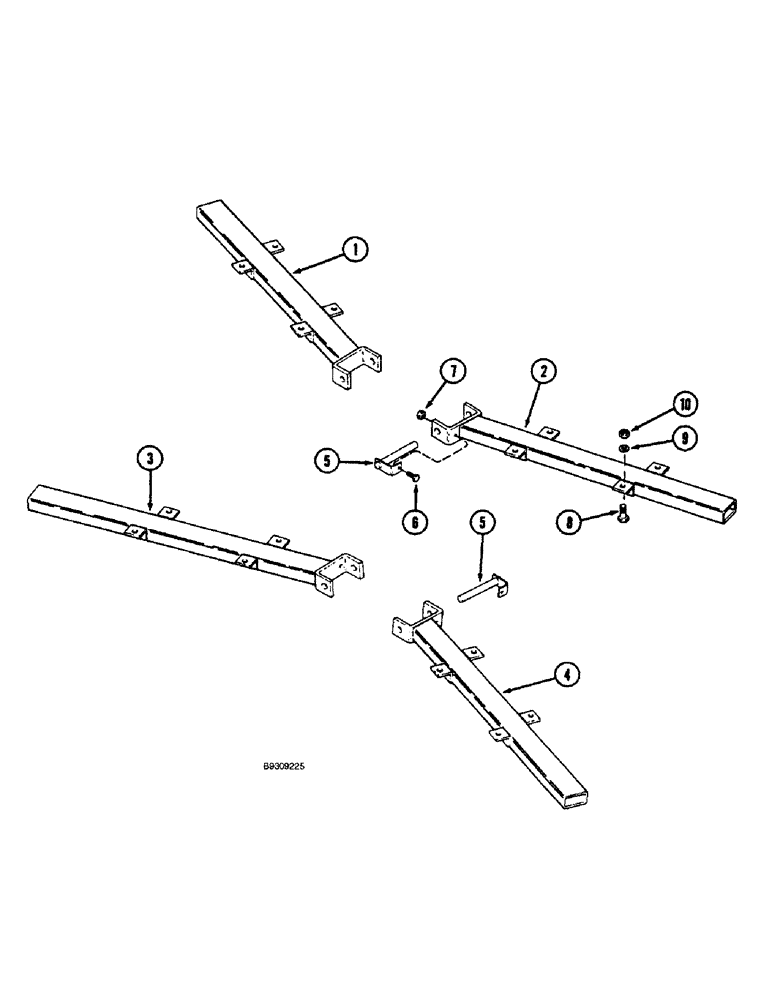

Запчасти Case IH 3900 (9-28) - WING GANG FRAME (09) - CHASSIS/ATTACHMENTS

1

129770C1

TUBE,1384 mm Length

FRAME - wing gang, left-hand front

1шт.

Used on Disk Harrow coded A, B, C, D and E.

1шт.

1

129523C1

TUBE,1930 mm Length

FRAME - wing gang, left-hand front, not shown

1шт.

Used on Disk Harrow coded F, G, H, I, J, K, L, M, N and O.

1шт.

1

129776C1

TUBE,2495 mm Length

FRAME - wing gang, left-hand front, not shown

1шт.

Used on Disk Harrow coded P, Q, R, S and T.

1шт.

1

121425C1

TUBE,3075 mm Length

FRAME - wing gang, left-hand front, not shown

1шт.

Used on Disk Harrow coded U, V, W, X and Y.

1шт.

2

129771C1

TUBE

FRAME - wing gang, right-hand front

1шт.

Used on Disk Harrow coded A, B, C, D and E.

1шт.

2

129524C1

TUBE

FRAME - wing gang, right-hand front, not shown

1шт.

Used on Disk Harrow coded F, G, H, I, J, K, L, M, N and O.

1шт.

2

129777C1

TUBE

FRAME - wing gang, right-hand front, not shown

1шт.

Used on Disk Harrow coded P, Q, R, S and T.

1шт.

2

121426C1

TUBE

FRAME - wing gang, right-hand front, not shown

1шт.

Used on Disk Harrow coded U, V, W, X and Y.

1шт.

3

129772C2

FRAME

- wing gang, left-hand rear

1шт.

Used on Disk Harrow coded A, B, C, D and E.

1шт.

3

129599C2

TUBE,2142 mm Length

FRAME - wing gang, left-hand rear, not shown

1шт.

IF 129599C2/129599C3 IS INCORRECT, PART NUMBER 361807A1 HAS A SHORTER DISTANCE BETWEEN THE TABS. MS 11-30-99

1шт.

Used on Disk Harrow coded F, G, H, I, J, K, L, M, N and O.

1шт.

3

129778C2

TUBE,2670 mm Length

FRAME - wing gang, left-hand rear, not shown

1шт.

Used on Disk Harrow coded P, Q, R, S and T.

1шт.

3

121423C2

TUBE,3285 mm Length

FRAME - wing gang, left-hand rear, not shown

1шт.

Used on Disk Harrow coded U, V, W, X and Y.

1шт.

4

129773C2

TUBE

FRAME - wing gang, right-hand rear

1шт.

Used on Disk Harrow coded A, B, C, D and E.

1шт.

4

129600C2

TUBE,2142 mm Length

FRAME - wing gang, right-hand rear, not shown

1шт.

Used on Disk Harrow coded F, G, H, I, J, K, L, M, N and O.

1шт.

4

129779C2

FRAME

- wing gang, right-hand rear, not shown

1шт.

Used on Disk Harrow coded P, Q, R, S and T.

1шт.

4

121424C2

TUBE

FRAME - wing gang, right-hand rear, not shown

1шт.

Used on Disk Harrow coded U, V, W, X and Y.

1шт.

5

139640C1

PIN

- wing hinge

4шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

7

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

4шт.

8

413-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 5

- hex, 7/8 NC x 2-1/4 inch

16шт.

9

492-11088

LOCK WASHER,7/8"

7/8"

16шт.

10

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

16шт.
