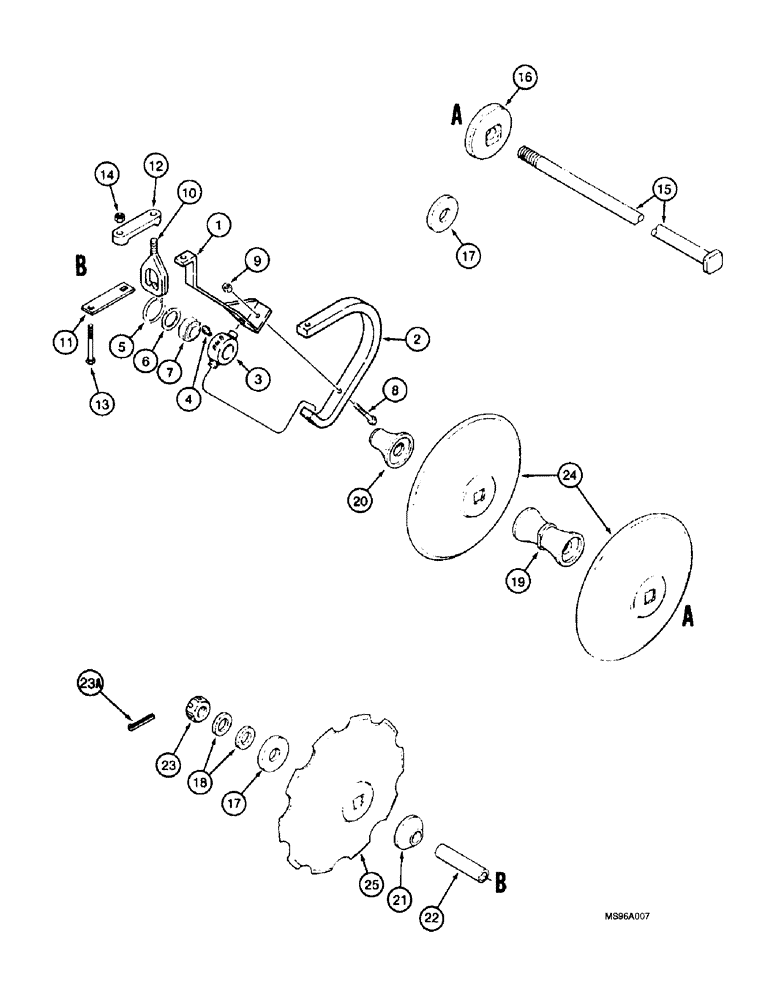

Запчасти Case IH 3900 (9-22) - CUSHION DISK GANG, TRUNNION MOUNTED BEARING, P.I.N. JAG0183120 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

100516A1

SUPPORT

- scraper/trunnion, right-hand

1шт.

1

100515A1

SUPPORT

- scraper/trunnion, left-hand

1шт.

2

100513A1

SPRING

- cushion gang

1шт.

100517A1

BALL BEARING,44.96mm ID x 57.53mm OD x 46.04mm W

TRUNNION ASSEMBLY - bearing, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

TRUNNION - bearing

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

100-21334

SNAP RING,3.346", Int, #334

Ring, Snap, 3.346", Int, #334

1шт.

6

100724A1

WASHER,59mm ID x 84mm OD x 3mm Thk

WASHER - retaining, bearing

1шт.

7

100519A1

BALL BEARING,44.96mm ID x 85mm OD x 42.85mm W

BEARING - trunnion

1шт.

8

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

9

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

10

100514A1

BOLT

BOLT - spring eye

1шт.

11

1978954C1

LARGE PLATE

BAR - bolt retainer

1шт.

12

1980776C1

SUPPORT

- disk

1шт.

13

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

1шт.

14

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

15

1263536C4

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

- arbor, 48-11/32 inch (1228 mm) long, 7 blade 7-1/2 inch spacing

1шт.

15

1263612C3

BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled

- arbor, 59-9/64 inch (1426 mm) long, 8 blade 7-1/2 inch spacing

1шт.

15

1263613C3

BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

- arbor, 63-3/4 inch (1619 mm) long, 9 blade 7-1/2 inch spacing

1шт.

15

1986246C3

BOLT

- arbor, 71-3/8 inch (1813 mm) long, 10 blade 7-1/2 inch spacing

1шт.

15

1263614C3

BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

- arbor, 79-1/64 inch (2007 mm) long, 11 blade 7-1/2 inch spacing

1шт.

15

1986269C3

BOLT

BOLT - arbor, 86-17/32 inch (2198 mm) long, 12 blade 7-1/2 inch spacing

1шт.

15

1263616C3

BOLT,Arbor, 1-1/2" - 6 x 2584mm, Drilled

- arbor, 101-47/64 inch (2584 mm) long, 14 blade 7-1/2 inch spacing

1шт.

15

1986270C3

BOLT

- arbor, 109-7/16 inch (2780 mm) long, 15 blade 7-1/2 inch spacing

1шт.

15

1263536C4

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

- arbor, 48-11/32 inch (1228 mm) long, 6 blade 9 inch spacing

1шт.

15

1263537C4

BOLT,Arbor, 1-1/2" - 6 x 1472mm, Drilled

- arbor, 57-23/64 inch (1457 mm) long, 7 blade 9 inch spacing

1шт.

15

1263538C4

BOLT,Arbor, 1-1/2" - 6 x 1708mm, Drilled

- arbor, 66-1/2 inch (1689 mm) long, 8 blade 9 inch spacing

1шт.

15

1263539C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1937mm, Drilled

BOLT - arbor, 75-5/8 inch (1921 mm) long, 9 blade 9 inch spacing

1шт.

15

1263540C4

BOLT,Arbor, 1-1/2" - 6 x 2171mm, Drilled

- arbor, 84-23/32 inch (2152 mm) long, 10 blade 9 inch spacing

1шт.

15

1263541C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2403mm, Drilled

BOLT - arbor, 93-3/4 inch (2381 mm) long, 11 blade 9 inch spacing

1шт.

15

1986271C3

BOLT

BOLT - arbor, 112 inch (2845 mm) long, 13 blade 9 inch spacing

1шт.

16

1344908C1

WASHER

- bumper

2шт.

17

139773C1

WASHER

WASHER - end

1шт.

18

1284383C1

WASHER

- arbor bolt

1шт.

19

1263631C1

SPOOL

- spacing, 7-1/2 inch spacing

1шт.

19

139918C1

SPACER

SPOOL - spacing, 9 inch spacing

1шт.

20

101191C1

SPOOL

- bearing, 4 inch long

1шт.

21

101189C1

SPOOL

- bearing, 1-1/2 inch long

1шт.

21

101190C1

SPOOL

- bearing, 3 inch long

1шт.

22

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch long

1шт.

22

112410C1

TUBE

BUSHING - support, 9 inch long

1шт.

23

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1-1/2 inch NC

1шт.

23a

432-1648

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

24

31387R1

DISC

DISK - solid, 510 x 4 mm

1шт.

24

31391R1

DISK HARROW

DISK - solid, 455 x 4 mm

1шт.

24

31394R1

DISK HARROW

DISK - solid, 406 x 4.5 mm

1шт.

24

31390R1

DISK HARROW

DISK - solid, 559 x 4.5 mm

1шт.

24

31388R1

DISC

DISK - solid, 508 x 4.5 mm

1шт.

24

31392R1

DISK HARROW

DISK - solid, 457 x 4.5 mm

1шт.

24

31394R1

DISK HARROW

DISK - solid, 406 x 4.5 mm

1шт.

24

31269R1

DISC

DISK - solid, 559 x 4.5 mm, No. 11 edge

1шт.

24

31345R1

DISC

DISK - solid, 559 x 5 mm, No. 11 edge

1шт.

24

31000R1

DISC

DISK - solid, 559 x 5 mm

1шт.

24

30999R1

DISC

DISK - solid, 508 x 5 mm

1шт.

24

31230R1

DISC

DISK - solid, 457 x 5 mm

1шт.

24

31393R1

DISK HARROW

DISK - notched, 559 x 4.5 mm

1шт.

25

31389R1

DISK HARROW

DISK - notched, 508 x 4.5 mm

1шт.

25

31395R1

DISK HARROW

DISK - notched, 457 x 4.5 mm

1шт.

25

31197R1

DISK HARROW

DISK - notched, 559 x 5 mm

1шт.

25

31196R1

DISK HARROW

DISK - notched, 508 x 5 mm

1шт.

26

192568A1

BLOCK

SHIM - trunnion bearing, if used

1шт.
