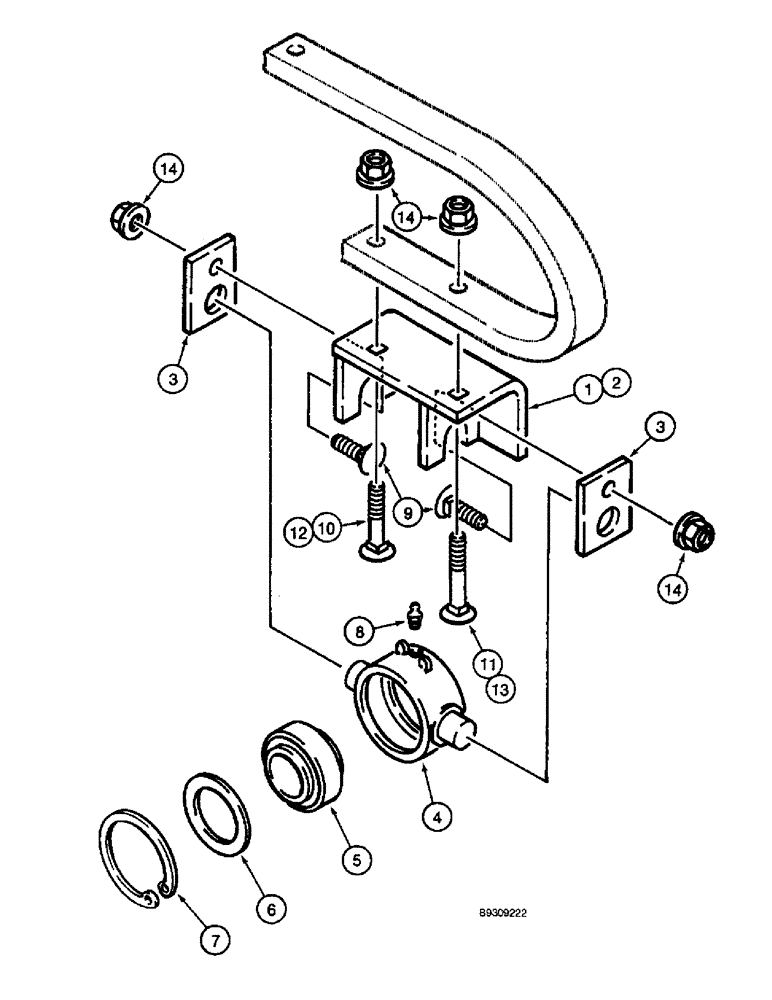

Запчасти Case IH 3900 (9-20) - TRUNNION BEARING RETROFIT COMPONENTS (09) - CHASSIS/ATTACHMENTS

116335A1

PACKAGE

KIT - bearing conversion, right-hand, Includes: Ref. 1 - 14

1шт.

116335A1 and 116336A1 conversion kits are available to convert cushion gang bearings to trunnion mounted bearings for 3900 disk harrows prior to P.I.N. JAG0183120. See service bulletin NTE SB 003 93.

1шт.

116336A1

PACKAGE

KIT - bearing conversion, left-hand, Includes: Ref. 1 - 14

1шт.

116335A1 and 116336A1 conversion kits are available to convert cushion gang bearings to trunnion mounted bearings for 3900 disk harrows prior to P.I.N. JAG0183120. See service bulletin NTE SB 003 93.

1шт.

1

111239A1

BRACKET

- bearing, right-hand, included with 116335A1 kit

1шт.

2

111240A1

BRACKET

- bearing, left-hand, included with 116336A1 kit

1шт.

3

111236A1

LARGE PLATE

PLATE - keeper, trunnion

2шт.

100517A1

BALL BEARING,44.96mm ID x 57.53mm OD x 46.04mm W

TRUNNION ASSEMBLY - bearing, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

TRUNNION - bearing

1шт.

5

100519A1

BALL BEARING,44.96mm ID x 85mm OD x 42.85mm W

BEARING - trunnion

1шт.

6

100724A1

WASHER,59mm ID x 84mm OD x 3mm Thk

WASHER - retaining, bearing

1шт.

7

100-21334

SNAP RING,3.346", Int, #334

Ring, Snap, 3.346", Int, #334

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

9

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

2шт.

10

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

BOLT - carriage, 5/8 NC x 3 inch, used on early production 3900 disk harrows

1шт.

11

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

BOLT - carriage, 5/8 NC x 3-1/2 inch, used on early production 3900 disk harrows

1шт.

12

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2-1/4 inch, used on late production 3900 disk harrows

1шт.

13

433-1044

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

BOLT - carriage, 5/8 NC x 2-3/4 inch, used on late production 3900 disk harrows

1шт.

14

231-53410

FLANGE NUT,Flg, 5/8"-11

NUT, LOCK, Flg, 5/8"-11

4шт.
