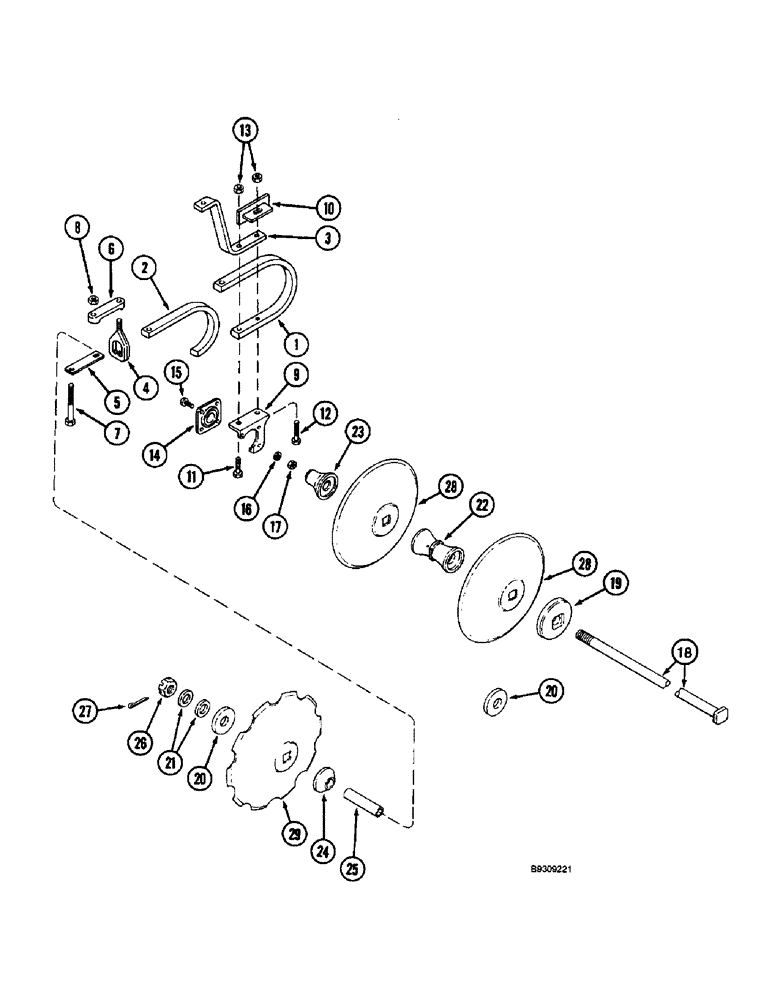

Запчасти Case IH 3900 (9-16) - CUSHION DISK GANG, PRIOR TO P.I.N. JAG0183120 (09) - CHASSIS/ATTACHMENTS

1

147763C1

SPRING

SUPPORT - bearing, left-hand

1шт.

1

147764C1

SPRING

SUPPORT - bearing, right-hand

1шт.

2

1263531C1

SPRING

- helper, left-hand

1шт.

2

1263532C1

SPRING

- helper, right-hand

1шт.

3

1980788C1

SUPPORT

- scraper, left-hand

1шт.

3

1980789C1

SUPPORT

- scraper, right-hand

1шт.

4

1978953C1

BOLT

- spring eye

1шт.

5

1978954C1

LARGE PLATE

BAR - bolt retainer

1шт.

6

1980776C1

SUPPORT

- disk

1шт.

7

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch

1шт.

8

231-42112

NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

9

147873C1

SUPPORT

RETAINER - bearing

1шт.

9

147874C1

SUPPORT

RETAINER - bearing

1шт.

10

1263626C2

ANGLE

BRACKET - stiffener

1шт.

11

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

12

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

13

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8

1шт.

14

ST491A

BALL BEARING,45mm ID

BEARING - flange

1шт.

14

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

18

1263536C4

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

- arbor, 48-11/32 inch (1228 mm) long, 7 blade 7-1/2 inch spacing

1шт.

18

1263612C3

BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled

- arbor, 59-9/64 inch (1426 mm) long, 8 blade 7-1/2 inch spacing

1шт.

18

1263613C3

BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

- arbor, 63-3/4 inch (1619 mm) long, 9 blade 7-1/2 inch spacing

1шт.

18

1986246C3

BOLT

- arbor, 71-3/8 inch (1813 mm) long, 10 blade 7-1/2 inch spacing

1шт.

18

1263614C3

BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

- arbor, 79-1/64 inch (2007 mm) long, 11 blade 7-1/2 inch spacing

1шт.

18

1986269C3

BOLT

BOLT - arbor, 86-17/32 inch (2198 mm) long, 12 blade 7-1/2 inch spacing

1шт.

18

1263616C3

BOLT,Arbor, 1-1/2" - 6 x 2584mm, Drilled

- arbor, 101-47/64 inch (2584 mm) long, 14 blade 7-1/2 inch spacing

1шт.

18

1986270C3

BOLT

- arbor, 109-7/16 inch (2780 mm) long, 15 blade 7-1/2 inch spacing

1шт.

18

1263536C4

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

- arbor, 48-11/32 inch (1228 mm) long, 6 blade 9 inch spacing

1шт.

18

1263537C4

BOLT,Arbor, 1-1/2" - 6 x 1472mm, Drilled

- arbor, 57-23/64 inch (1457 mm) long, 7 blade 9 inch spacing

1шт.

18

1263538C4

BOLT,Arbor, 1-1/2" - 6 x 1708mm, Drilled

- arbor, 66-1/2 inch (1689 mm) long, 8 blade 9 inch spacing

1шт.

18

1263539C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1937mm, Drilled

BOLT - arbor, 75-5/8 inch (1921 mm) long, 9 blade 9 inch spacing

1шт.

18

1263540C4

BOLT,Arbor, 1-1/2" - 6 x 2171mm, Drilled

- arbor, 84-23/32 inch (2152 mm) long, 10 blade 9 inch spacing

1шт.

18

1263541C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 2403mm, Drilled

BOLT - arbor, 93-3/4 inch (2381 mm) long, 11 blade 9 inch spacing

1шт.

18

1986271C3

BOLT

BOLT - arbor, 112 inch (2845 mm) long, 13 blade 9 inch spacing

1шт.

19

1344908C1

WASHER

- bumper

2шт.

20

139773C1

WASHER

WASHER - end

1шт.

21

1284383C1

WASHER

- arbor bolt

1шт.

22

1263631C1

SPOOL

- spacing, 7-1/2 inch spacing

1шт.

22

139918C1

SPACER

SPOOL - spacing, 9 inch spacing

1шт.

23

101191C1

SPOOL

- bearing, 4 inch long

1шт.

24

101189C1

SPOOL

- bearing, 1-1/2 inch long

1шт.

24

101190C1

SPOOL

- bearing, 3 inch long

1шт.

25

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch long

1шт.

25

112410C1

TUBE

BUSHING - support, 9 inch long

1шт.

26

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1-1/2 inch NC

1шт.

27

432-1648

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

28

31387R1

DISC

DISK - solid, 510 x 4 mm

1шт.

28

31391R1

DISK HARROW

DISK - solid, 455 x 4 mm

1шт.

28

31394R1

DISK HARROW

DISK - solid, 406 x 4.5 mm

1шт.

28

31390R1

DISK HARROW

DISK - solid, 559 x 4.5 mm

1шт.

28

31388R1

DISC

DISK - solid, 508 x 4.5 mm

1шт.

28

31392R1

DISK HARROW

DISK - solid, 457 x 4.5 mm

1шт.

28

31394R1

DISK HARROW

DISK - solid, 406 x 4.5 mm

1шт.

28

31000R1

DISC

DISK - solid, 559 x 5 mm

1шт.

28

31269R1

DISC

DISK - solid, 559 x 4.5 mm, No. 11 edge

1шт.

28

31345R1

DISC

DISK - solid, 559 x 5 mm, No. 11 edge

1шт.

28

30999R1

DISC

DISK - solid, 508 x 5 mm

1шт.

28

31230R1

DISC

DISK - solid, 457 x 5 mm

1шт.

28

31393R1

DISK HARROW

DISK - notched, 559 x 4.5 mm

1шт.

29

31389R1

DISK HARROW

DISK - notched, 508 x 4.5 mm

1шт.

29

31395R1

DISK HARROW

DISK - notched, 457 x 4.5 mm

1шт.

29

31197R1

DISK HARROW

DISK - notched, 559 x 5 mm

1шт.

29

31196R1

DISK HARROW

DISK - notched, 508 x 5 mm

1шт.
