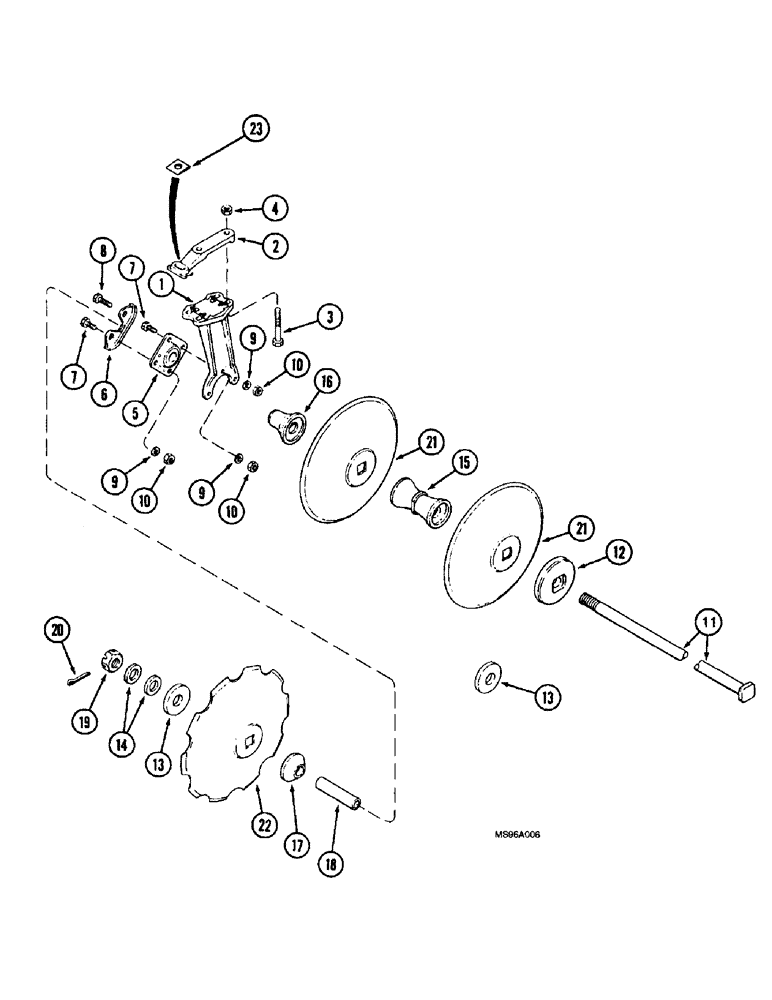

Запчасти Case IH 3900 (9-12) - RIGID DISK GANG (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
129532C2
HOLDER
SUPPORT - bearing
1шт.
2
139583C5
SUPPORT
- scraper angle
1шт.
3
413-1284
BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5
- hex, 3/4 NC x 5-1/4 inch
1шт.
4
231-42112
NUT,3/4"-10, GB
NUT - hex, self-locking, 3/4 inch NC
1шт.
5
ST491A
BALL BEARING,45mm ID
BEARING - flange
1шт.
5
ST491A-IMPGV
BEARING
Value, 1-3/4 In. Round Bore Bearing Assy
1шт.
6
129753C1
BEARING COVER
- bearing wear
1шт.
7
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
1шт.
8
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1шт.
9
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
10
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
1шт.
11
1263536C4
BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled
- arbor, 48-11/32 inch (1228 mm) long, 7 blade 7-1/2 inch spacing
1шт.
11
1263612C3
BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled
- arbor, 59-9/64 inch (1426 mm) long, 8 blade 7-1/2 inch spacing
1шт.
11
1263613C3
BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled
- arbor, 63-3/4 inch (1619 mm) long, 9 blade 7-1/2 inch spacing
1шт.
11
1986246C3
BOLT
- arbor, 71-3/8 inch (1813 mm) long, 10 blade 7-1/2 inch spacing
1шт.
11
1263614C3
BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled
- arbor, 79-1/64 inch (2007 mm) long, 11 blade 7-1/2 inch spacing
1шт.
11
1986269C3
BOLT
BOLT - arbor, 86-17/32 inch (2198 mm) long, 12 blade 7-1/2 inch spacing
1шт.
11
1263616C3
BOLT,Arbor, 1-1/2" - 6 x 2584mm, Drilled
- arbor, 101-47/64 inch (2584 mm) long, 14 blade 7-1/2 inch spacing
1шт.
11
1986270C3
BOLT
- arbor, 109-7/16 inch (2780 mm) long, 15 blade 7-1/2 inch spacing
1шт.
11
1263536C4
BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled
- arbor, 48-11/32 inch (1228 mm) long, 6 blade 9 inch spacing
1шт.
11
1263537C4
BOLT,Arbor, 1-1/2" - 6 x 1472mm, Drilled
- arbor, 57-23/64 inch (1457 mm) long, 7 blade 9 inch spacing
1шт.
11
1263538C4
BOLT,Arbor, 1-1/2" - 6 x 1708mm, Drilled
- arbor, 66-1/2 inch (1689 mm) long, 8 blade 9 inch spacing
1шт.
11
1263539C4
SQUARE BOLT,Arbor, 1-1/2" - 6 x 1937mm, Drilled
BOLT - arbor, 75-5/8 inch (1921 mm) long, 9 blade 9 inch spacing
1шт.
11
1263540C4
BOLT,Arbor, 1-1/2" - 6 x 2171mm, Drilled
- arbor, 84-23/32 inch (2152 mm) long, 10 blade 9 inch spacing
1шт.
11
1263541C4
SQUARE BOLT,Arbor, 1-1/2" - 6 x 2403mm, Drilled
BOLT - arbor, 93-3/4 inch (2381 mm) long, 11 blade 9 inch spacing
1шт.
11
1986271C3
BOLT
BOLT - arbor, 112 inch (2845 mm) long, 13 blade 9 inch spacing
1шт.
12
1344908C1
WASHER
- bumper
2шт.
13
139773C1
WASHER
WASHER - end
1шт.
14
1284383C1
WASHER
- arbor bolt
1шт.
15
1263631C1
SPOOL
- spacing, 7-1/2 inch spacing
1шт.
15
139918C1
SPACER
SPOOL - spacing, 9 inch spacing
1шт.
17
101189C1
SPOOL
- bearing, 1-1/2 inch long, 7-1/2 inch spacing
1шт.
18
112769C1
BUSHING,38.91mm ID x 44.45mm OD x 183mm L
- support, 7-1/2 inch long
1шт.
18
112410C1
TUBE
BUSHING - support, 9 inch long
1шт.
19
425-1224
SLOTTED NUT,1 1/2"-6, G5
NUT - hex, slotted, 1-1/2 inch NC
1шт.
#19 std bolt to be used is 231-41124 1 1/2" csd
1шт.
20
432-1648
COTTER PIN,1/4" x 3"
Pin, Split (Cotter), 1/4" x 3"
1шт.
21
31387R1
DISC
DISK - solid, 510 x 4 mm
1шт.
21
31391R1
DISK HARROW
DISK - solid, 455 x 4 mm
1шт.
21
31390R1
DISK HARROW
DISK - solid, 559 x 4.5 mm
1шт.
21
31388R1
DISC
DISK - solid, 508 x 4.5 mm
1шт.
21
31392R1
DISK HARROW
DISK - solid, 457 x 4.5 mm
1шт.
21
31394R1
DISK HARROW
DISK - solid, 406 x 4.5 mm
1шт.
21
31232R2
DISC
DISK - solid, 508 x 6.5 mm
1шт.
21
31217R2
DISC
DISK - solid, 559 x 6.5 mm
1шт.
21
31000R1
DISC
DISK - solid, 559 x 5 mm
1шт.
21
30999R1
DISC
DISK - solid, 508 x 5 mm
1шт.
21
31230R1
DISC
DISK - solid, 457 x 5 mm
1шт.
22
31393R1
DISK HARROW
DISK - notched, 559 x 4.5 mm
1шт.
22
31389R1
DISK HARROW
DISK - notched, 508 x 4.5 mm
1шт.
22
31395R1
DISK HARROW
DISK - notched, 457 x 4.5 mm
1шт.
22
31197R1
DISK HARROW
DISK - notched, 559 x 5 mm
1шт.
22
31196R1
DISK HARROW
DISK - notched, 508 x 5 mm
1шт.
23
136222A1
SHIM
- scraper support
1шт.
