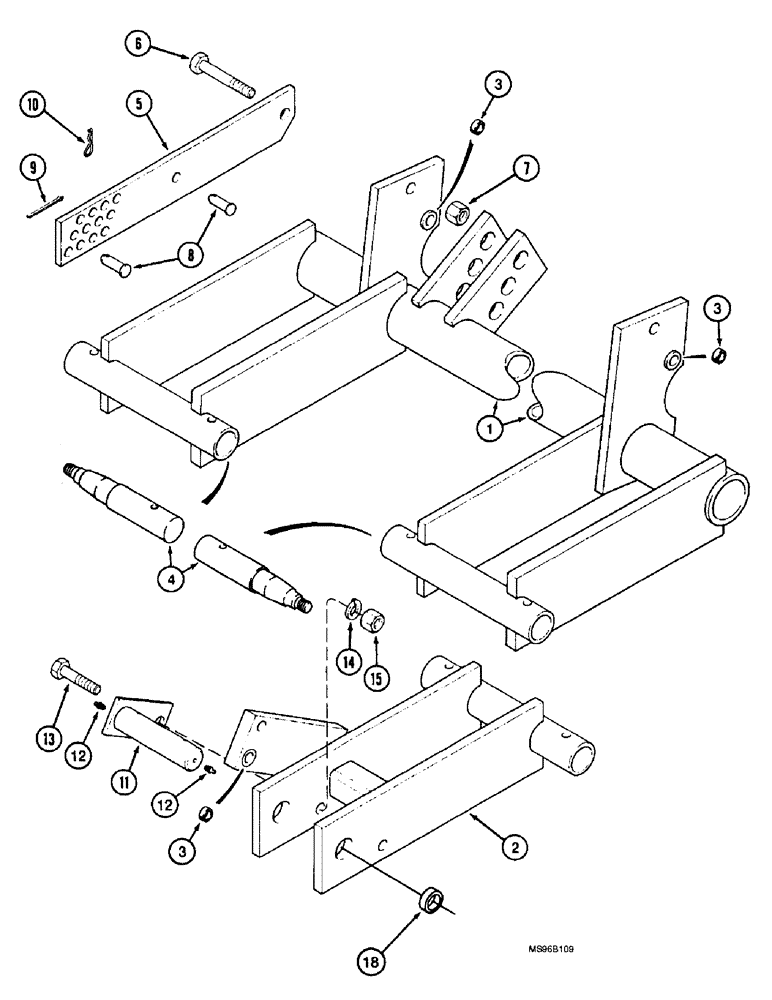

Запчасти Case IH 3900 (9-10) - WHEEL AXLE (09) - CHASSIS/ATTACHMENTS

1

1978718C2

AXLE

- wheel

1шт.

ref # 1 hp means high plains = 1978718c2 is hollow and 1978719c2 i solid per aj kl 9/24/99

1шт.

Used on disk harrows coded A, B, C, D, F, G, I and J.

1шт.

1

1978717C2

AXLE HOUSING

AXLE - wheel, not shown

1шт.

Used on disk harrows coded K, L, M, N, P, Q, S, T, U, V, W and X.

1шт.

1

1978719C2

AXLE HOUSING

AXLE - wheel

1шт.

Used on disk harrows coded E and H.

1шт.

1

1978720C2

AXLE HOUSING

AXLE - wheel

1шт.

Used on disk harrows coded O, R and Y.

1шт.

2

1978724C3

ARM ASSY.

ARM - wing wheel, right-hand

1шт.

2

1978723C3

ARM ASSY.

ARM - wing wheel, left-hand, not shown

1шт.

3

64601C1

BUSHING

- tension

4шт.

4

1978726C1

SPINDLE

- wheel hub

4шт.

5

139490C5

BAR

- gauging

8шт.

6

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

4шт.

7

231-41114

LOCK NUT,7/8"-9, GB

NUT - hex, self-locking, 7/8 inch NC

4шт.

8

439-51236

HEADED PIN,19.05mm OD x 57.15mm L

PIN - headed, 3/4 x 2-1/4 inch

8шт.

9

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

10

1978738C1

HAIR PIN COTTER

3/16"

4шт.

1284112C91

PACKAGE

KIT - repair, wing wheel pivot, Includes: Ref. 11 - 17

1шт.

11

1284054C1

PIN ASSY.

PIN - wing wheel

2шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

13

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

- hex, 7/8 NC x 2 inch, axle

2шт.

14

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

15

425-1414

JAM NUT,Jam, 7/8"-9, G5

2шт.

16

1284053C1

TUBE,44.958 - 46.05 mm ID, 60.325 mm OD, 146 mm Length

SUPPORT - wing wheel pivot, not shown

2шт.

17

1284106C1

BUSHING,44.45mm ID x 50.8mm OD x 31.75mm L

- frame tension, not shown, see Figure 9-4 for bushing location

4шт.

91317C91

RING, SET

KIT - repair, arm pivot, Includes: Ref. 18

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - tension

2шт.
