Запчасти Case IH 3900 (9-08) - HITCH CRANK (09) - CHASSIS/ATTACHMENTS

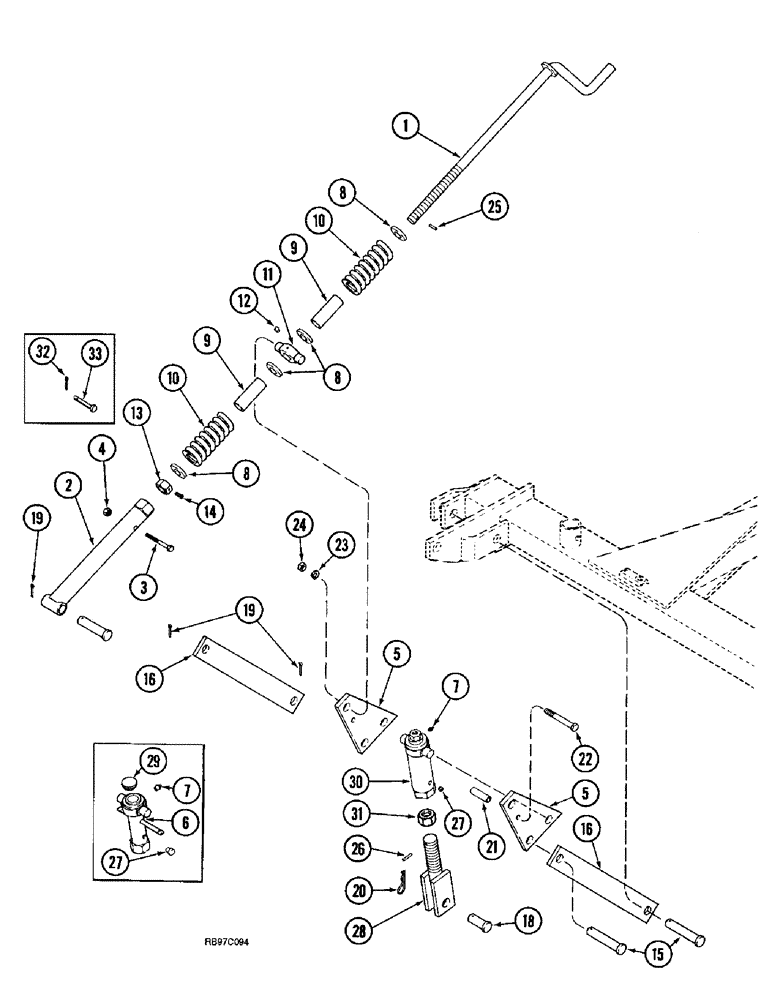

Схема запчастей Case IH 3900 - (9-08) - HITCH CRANK (09) - CHASSIS/ATTACHMENTS
16
27
24
29
9
30
8
21
5
28
1
18
7
9
12
16
2
10
22
13
26
14
8
25
8
20
5
4
27
31
33
23
19
15
3
32
6
19
11
7
10

Артикул

Название

Примечание

Количество

1

139647C2

CRANK

- hitch (Shown)

1шт.

Used on disk harrows coded A, B, C, D, E, F, G and H.

1шт.

1

139571C2

CRANK

- hitch

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U and V.

1шт.

2

139668C1

TUBE,477 mm Length

- hitch crank

1шт.

3

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

4

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

5

139483C1

BAR

- bellcrank

2шт.

6

139670C2

TUBE

- crank (If used)

1шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

8

60146C1

WASHER,32.51mm ID x 63.5mm OD x 6.35mm Thk

- flat, special

4шт.

9

147968C1

SPACER

- hitch crank

2шт.

10

139501C1

SPRING

- hitch crank

2шт.

11

60134C2

TRUNNION

- hitch crank

1шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

13

60149C2

LOCK NUT

- hex, special, 1-1/4 inch NC

1шт.

14

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW - set, square head, 5/16 NC x 1/2 inch, cup point

1шт.

15

427-20625

CLEVIS PIN,31.75mm OD x 158.75mm L

PIN - clevis, 1-1/4 x 6-1/4 inch, hardened

2шт.

16

147755C2

BAR

BRACE - hitch crank

2шт.

17

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch, hardened

1шт.

18

427-20300

CLEVIS PIN,31.75mm OD x 76.2mm L

PIN - clevis, 1-1/4 x 3 inch

1шт.

19

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

3шт.

20

1978738C1

HAIR PIN COTTER

3/16"

1шт.

21

139453C1

SPACER

- bell crank

1шт.

22

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

1шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

425-1010

NUT,5/8"-11, G5

1шт.

25

438-31620

PIN,1/4" x 1 1/4", Coiled

1шт.

26

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

1шт.

27

1017087R1

PLUG,Cap, .612" OD

RETAINER - plastic tapered (If used)

2шт.

28

147589C2

YOKE

- hitch

1шт.

29

432449

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2 inch OD (If used)

1шт.

30

256862A1

TUBE ASSY.,225 mm Length

TUBE - crank

1шт.

31

425-1424

JAM NUT,Jam, 1 1/2"-6, G5

- hex, jam, 1-1/2 inch NC

1шт.

32

432-1216

COTTER PIN,3/16" x 1"

Used with 439-5840 pin Ref 32, replaced by 230-4118 nut Ref 4 3/16" x 1"

1шт.

33

439-5840

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch, used with 432-1216 cotter pin Ref 33, replaced by 413-848 bolt Ref 3

1шт.

Выбрано товаров: 36
