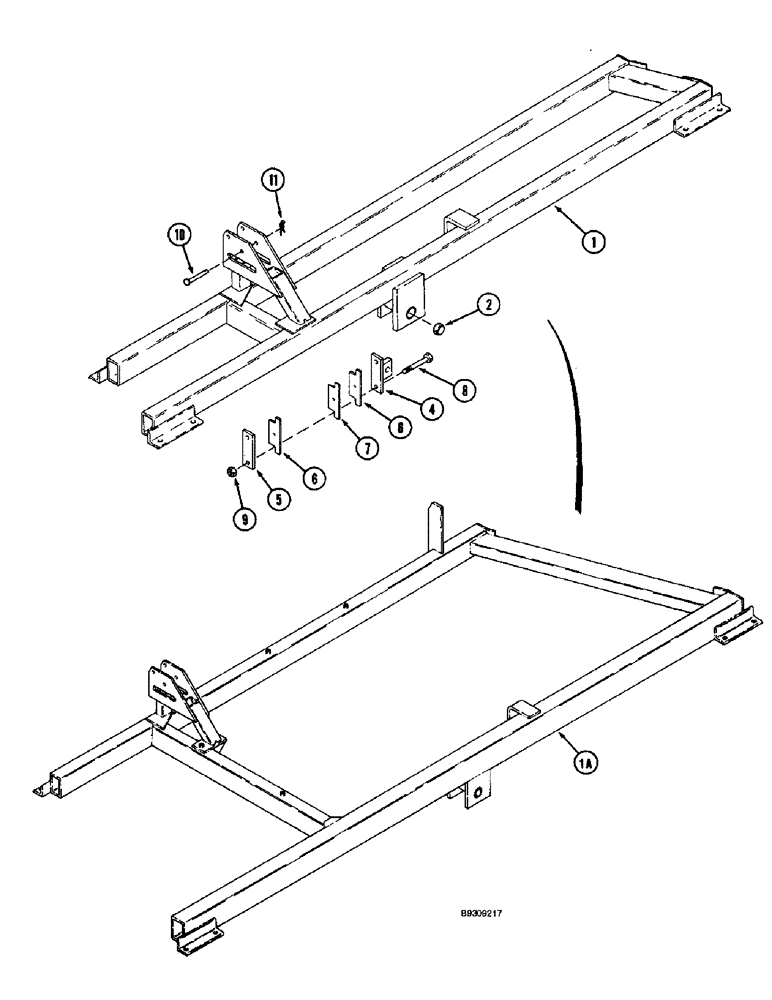

Запчасти Case IH 3900 (9-04) - WING FRAME (09) - CHASSIS/ATTACHMENTS

1

1986417C2

FRAME ASSY

FRAME - wing, right-hand

1шт.

Used on disk harrows coded A, B, C and D.

1шт.

1

1986416C2

FRAME ASSY

FRAME - wing, left-hand, not shown

1шт.

Used on Disk Harrow coded A, B, C and D.

1шт.

1

1986419C2

FRAME ASSY

FRAME - wing, right-hand, not shown

1шт.

Used on disk harrows coded F, G, I, J, K, L, M and N.

1шт.

1

1986418C2

FRAME ASSY

FRAME - wing, left-hand, not shown

1шт.

Used on disk harrows coded F, G, I, J, K, L, M and N.

1шт.

1

1986423C2

FRAME ASSY

FRAME - wing, right-hand, not shown

1шт.

Used on disk harrows coded E.

1шт.

1

1986422C2

FRAME ASSY

FRAME - wing, left-hand, not shown

1шт.

Used on disk harrows coded E.

1шт.

1

1986425C2

FRAME ASSY

FRAME - wing, right-hand, not shown

1шт.

Used on disk harrows coded H and O.

1шт.

1

1986424C2

FRAME ASSY

FRAME - wing, left-hand, not shown

1шт.

Used on disk harrows coded E.

1шт.

1a

1986421C2

FRAME ASSY

FRAME - wing, right-hand

1шт.

Used on disk harrows coded P, Q, S, T, U, V, W and X.

1шт.

1a

1986420C2

FRAME ASSY

FRAME - wing, left-hand, not shown

1шт.

Used on disk harrows coded P, Q, S, T, U, V, W and X.

1шт.

1a

1986427C2

FRAME ASSY

FRAME - wing, right-hand, not shown

1шт.

Used on disk harrows coded R and Y.

1шт.

1a

1986426C2

FRAME ASSY

FRAME - wing, left-hand, not shown

1шт.

Used on disk harrows coded R and Y.

1шт.

2

1284106C1

BUSHING,44.45mm ID x 50.8mm OD x 31.75mm L

- frame tension

2шт.

4

129682C2

ANCHOR

SUPPORT - wing cylinder anchor

2шт.

5

129683C1

BAR

- wing cylinder anchor

2шт.

6

129685C1

BAR

- spacer

4шт.

7

129686C1

BAR

- spacer

2шт.

8

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

4шт.

9

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

4шт.

10

439-5892

HEADED PIN,1/2" x 5 3/4", G5

PIN - headed, 1/2 x 5-3/4 inch

2шт.

11

1978738C1

HAIR PIN COTTER

3/16"

2шт.
