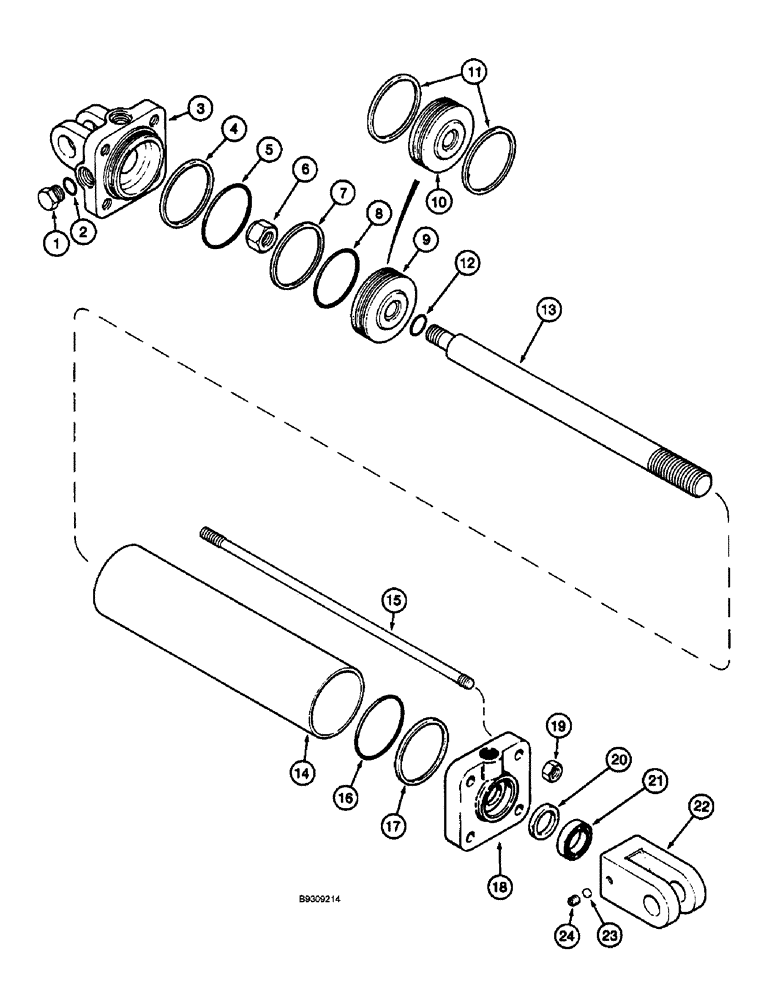

Запчасти Case IH 3900 (8-08) - HYDRAULIC WING FOLD CYLINDER, 3-1/2 INCH BORE X 42 INCH USED ON MACHINES 265" AND NARROWER (08) - HYDRAULICS

1344928C1

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 1067 mm (42 inch) stroke, hydraulic wing fold, uses 79978C1 seal kit, if used, Includes: Ref. 1 - 24

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

87388869R

REMAN-HYD CYLINDER

3900 (3/91-), Reman for New PN 1344928C1

1шт.

87388869C

CORE-HYD CYLINDER

Return Number

1шт.

1344928C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 1067 mm (42 inch) stroke, hydraulic wing fold, uses 79978C2 seal kit, if used, Includes: Ref. 1 - 24

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.

87388869R

REMAN-HYD CYLINDER

3900 (3/91-), Reman for New PN 1344928C2

1шт.

87388869C

CORE-HYD CYLINDER

Return Number

1шт.

1

214389

PLUG,3/4" - 16 ORB

Includes Ref. 2 Hex Hd, 3/4"-16 ORB

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of Seal Kit P/N 79978C1

1шт.

Part of Seal Kit P/N 79978C2

1шт.

3

1282334C1

HEAD

- cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of Seal Kit P/N 79978C1

1шт.

Part of Seal Kit P/N 79978C2

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of Seal Kit P/N 79978C1

1шт.

Part of Seal Kit P/N 79978C2

1шт.

6

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 79978C1

1шт.

Part of Seal Kit P/N 79978C2

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit P/N 79978C1

1шт.

Part of Seal Kit P/N 79978C2

1шт.

9

145422C2

PISTON

- cylinder, used with 1344928C1 cylinder assembly

1шт.

10

85179C1

PISTON

- cylinder, used with 1344928C2 cylinder assembly

1шт.

11

NSS

NOT SOLD SEPARAT

RING - wear, piston, used with 1344928C2 cylinder assembly, included in 79978C2 seal kit

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Kit P/N 79978C1

1шт.

Part of Seal Kit P/N 79978C2

1шт.

13

1986508C1

ROD

- piston

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

15

1986509C1

BOLT

- tie, cylinder

4шт.

16

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit P/N 79978C1

1шт.

Part of Seal Kit P/N 79978C2

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 79978C1

1шт.

Part of Seal Kit P/N 79978C2

1шт.

18

1282335C1

HEAD

GLAND - cylinder

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

Part of Seal Kit P/N 79978C1

1шт.

Part of Seal Kit P/N 79978C2

1шт.

22

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

23

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

24

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

79978C1

SEAL KIT

KIT - seal, Includes: Ref. 2, 4, 5, 7, 8, 12, 16, 17, 20 and 21, used with 1344928C1 cylinder assembly.

1шт.

79978C2

SEAL KIT

KIT - seal, Includes: Ref. 2, 4, 5, 7, 8, 12, 16, 17, 20 and 21, also includes two item 11 wear rings, used with 1344928C2 cylinder assembly.

1шт.
