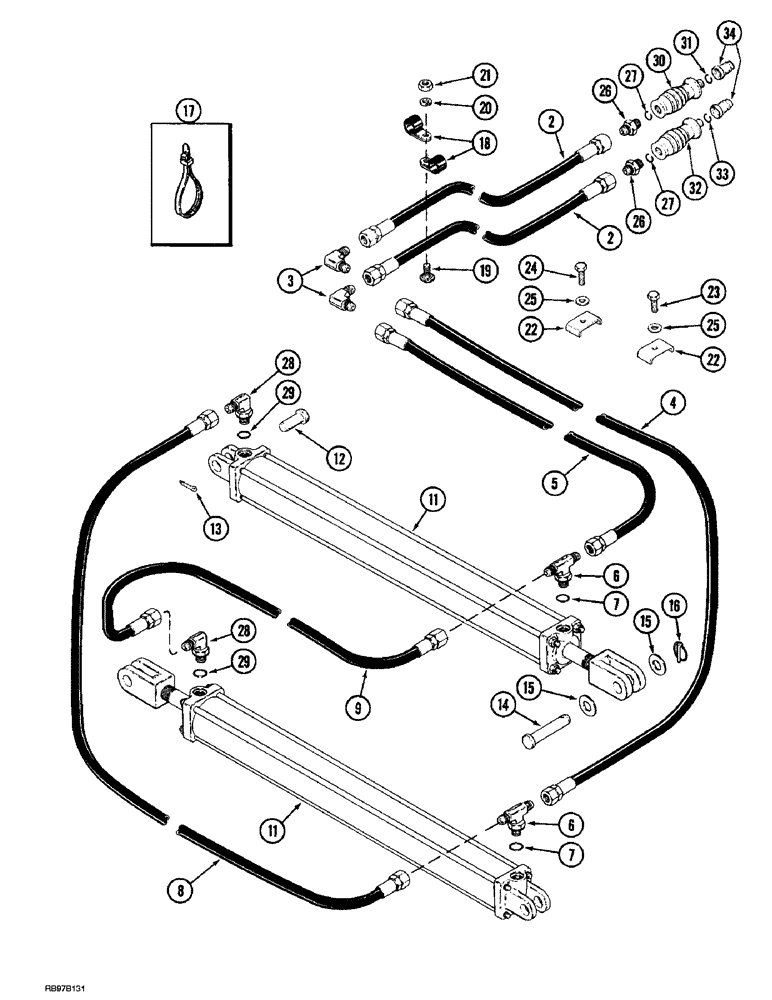

Запчасти Case IH 3900 (8-04) - HYDRAULIC FOLD SYSTEM (08) - HYDRAULICS

2

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - 4445 mm (175 inch) long

2шт.

3

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, 9/16-18 inch flare x flare

2шт.

4

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE - 3175 mm (125 inch) long

1шт.

Used on disk harrows coded A, B, C, D, E, F, G and H.

1шт.

4

129768C1

HYDRAULIC HOSE

HOSE - 2921 mm (115 inch) long

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U and V.

1шт.

5

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE - 3175 mm (125 inch) long

1шт.

Used on disk harrows coded A, B, C, D, E, F, G and H.

1шт.

5

1254526C2

HOSE ASSY.

HOSE - 3429 mm (135 inch) long

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U and V.

1шт.

6

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 adj O-ring branch x 9/16-18 inch flare x flare

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

812382C1

HYDRAULIC HOSE

HOSE - 1270 mm (50 inch) long

1шт.

Used on disk harrows coded A, B, C, D, E, F, G and H.

1шт.

8

139517C1

HYDRAULIC HOSE

HOSE - 2032 mm (80 inch) long

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U and V.

1шт.

9

812382C1

HYDRAULIC HOSE

HOSE - 1270 mm (50 inch) long

1шт.

Used on disk harrows coded A, B, C, D, E, F, G and H.

1шт.

9

147876C1

HYDRAULIC HOSE

HOSE - 1143 mm (45 inch) long

1шт.

Used on disk harrows coded I, J, K, L, M, N, O, P, Q, R, S, T, U and V.

1шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - wing fold

2шт.

Used on disk harrows coded A, B, C, D, E, F, G, H, I, J and L.

1шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - wing fold

2шт.

Used on disk harrows coded M, N, O, P, Q, R, S, T, U and V.

1шт.

12

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - clevis, 1-1/4 x 3-1/4 inch, hardened

2шт.

13

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

14

427-20500

CLEVIS PIN,31.75mm OD x 125mm L

PIN - headed, 1-1/4 x 4-1/2 inch

2шт.

15

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

- flat, 1-5/16 x 63/64 x 11/64 inch, hardened

4шт.

16

A30338

PIN

- lock

2шт.

17

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

6шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

16шт.

19

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

8шт.

20

492-11038

LOCK WASHER,3/8"

8шт.

21

425-106

NUT,3/8"-16, Cl 5

8шт.

22

129886C2

CLAMP

-

1шт.

23

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

1шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

25

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

26

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 27

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 29

2шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

236882A1

GRIP

KIT - HYDRA-GRIP, black, 1/2 inch PT (Not Shown), Includes: Ref. 30 - 33

1шт.

236879A1

GRIP

KIT - HYDRA-GRIP, black, 3/4-16 inch O-ring boss, Includes: Ref. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

HYDRA-GRIP - black, extend, 3/4-16 inch O-ring boss, Includes: Ref. 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

32

NSS

NOT SOLD SEPARAT

HYDRA-GRIP - black, retract, 3/4-16 inch O-ring boss, Includes: Ref. 33

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

34

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.
