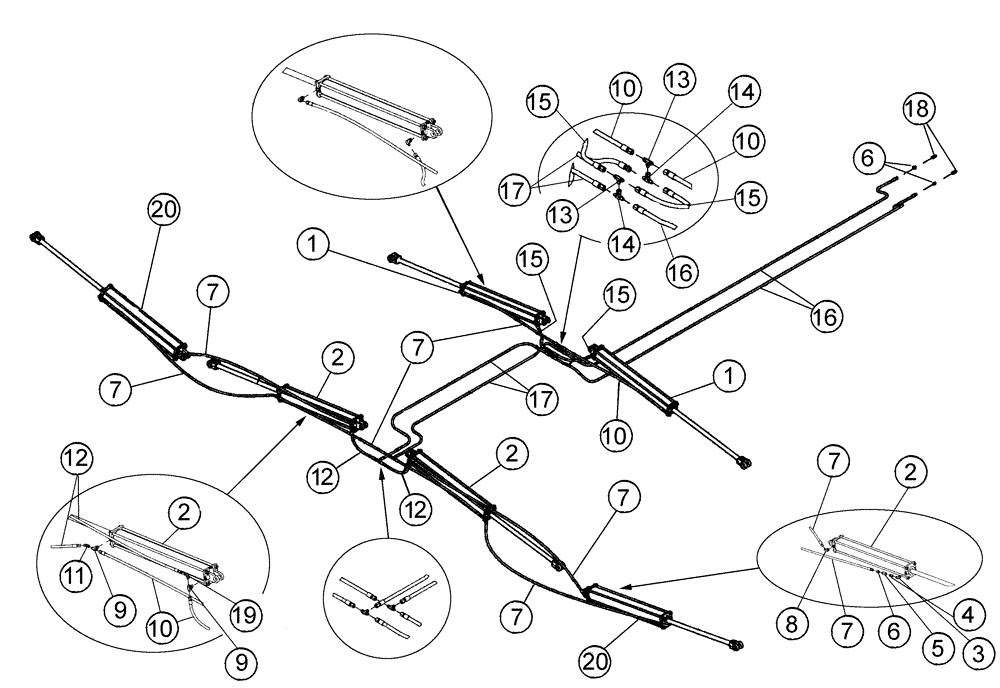

Запчасти Case IH 370 TRUE-TANDEM (35.100.02) - WING FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84130855

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

3-1/2 x 36

2шт.

2

87493928

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4 x 36

4шт.

3

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

4

25707534

ADAPTER

3/4 SAEM x 3/4 JICF

2шт.

5

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

2шт.

6

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

7

191936A1

HOSE

1/4 x 110

4шт.

8

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

6шт.

9

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

4шт.

10

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8 x 55

4шт.

11

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

12

1336840C1

HYDRAULIC HOSE

3/8 x 25

2шт.

13

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

4шт.

14

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

15

87706C1

HYDRAULIC HOSE

3/8 x 29

2шт.

16

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8 x 275

2шт.

17

812381C2

HYDRAULIC HOSE

3/8 x 115

2шт.

18

25705041

COUPLING

ISO Male

2шт.

19

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

20

87493928

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4 X 36, 42 Foot

2шт.

20

87493925

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4-1/2 x 36, 47 Foot

2шт.

87493925R

REMAN-HYD CYLINDER

370 TRUE-TANDEM 42’-47’ DISK HARROW

2шт.

87493925C

CORE-HYD CYLINDER

Return Number

1шт.
