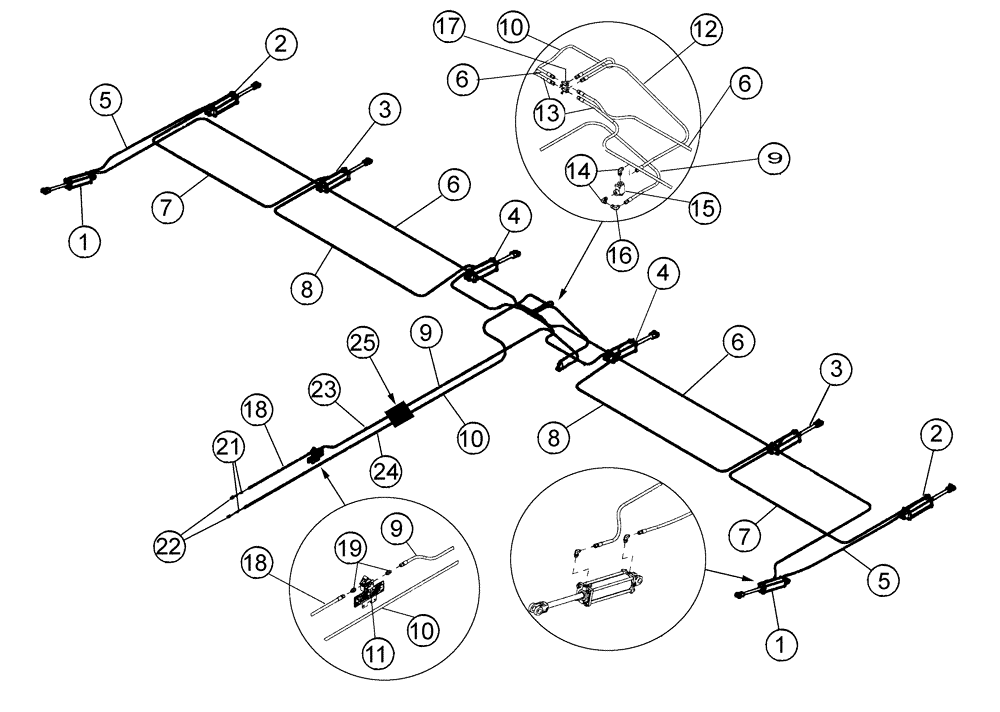

Запчасти Case IH 370 TRUE-TANDEM (35.100.01) - TRANSPORT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84182644

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 304.8mm Stroke

3-1/2 X 12

1шт.

2

84182654

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 304.8mm Stroke

3-3/4 X 12

1шт.

3

84182645

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 304.8mm Stroke

4 X 12

1шт.

4

84182647

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4-1/4 X 12

1шт.

5

812381C2

HYDRAULIC HOSE

3/8 X 115

1шт.

6

1284299C1

HYDRAULIC HOSE

3/8 X 350, 47 Foot

1шт.

6

1284268C1

HYDRAULIC HOSE

3/8 x 340, 42 Foot

1шт.

7

1284252C1

HYDRAULIC HOSE

3/8 X 140

1шт.

8

1284254C1

HYDRAULIC HOSE

3/8 X 170

1шт.

9

134212A1

HOSE

1/2 X 150

1шт.

10

91240C1

HOSE,12.70 mm ID x 3050.00 mm, SAE 100R1

1шт.

11

87328931

PLATE

Mounting

1шт.

12

90874C1

HYDRAULIC HOSE

1/2 x 55

1шт.

13

95778C1

HYDRAULIC HOSE,9.65 mm ID x 1778.00 mm, SAE 100 R1

1шт.

14

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

1шт.

15

396150A1

VALVE, CONTROL

1шт.

16

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

17

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

1шт.

18

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

19

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

20

87328528

SHUT-OFF VALVE

1шт.

21

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

22

25705041

COUPLING

ISO Male

1шт.

23

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

24

91158C1

HYDRAULIC HOSE,12.7mm ID x 4570mm L

1/2 x 180

1шт.

25

298624A1

VALVE

Double Piloted

1шт.
