Запчасти Case IH 370 TRUE-TANDEM (75.200.24) - COIL TINE HARROW PARTS (75) - SOIL PREPARATION

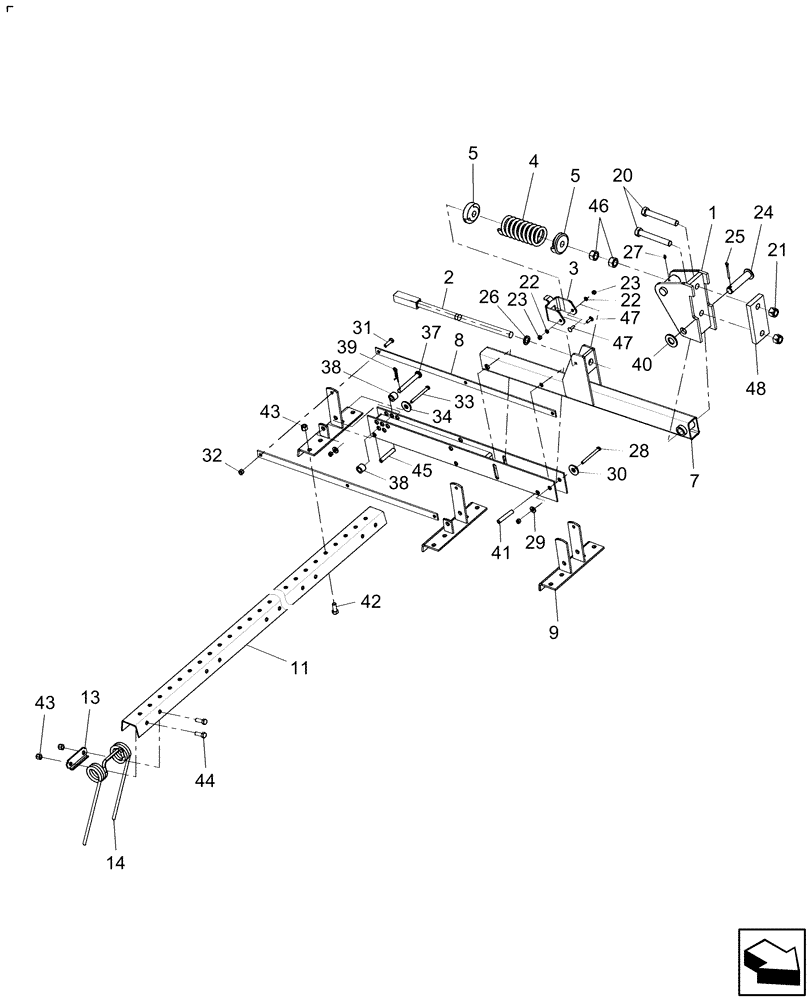

Схема запчастей Case IH 370 TRUE-TANDEM - (75.200.24) - COIL TINE HARROW PARTS (75) - SOIL PREPARATION
5
44
2
26
3
23
22
11
9
38
45
34
33
8
37
38
39
43
42
31
32
43
13
14
30
41
29
28
7
47
47
23
22
25
40
48
21
24
1
27
20
46
5
4

Артикул

Название

Примечание

Количество

1

06251376

BRACKET

Mounting

2шт.

2

06251351

THREADED ROD

2шт.

3

06251316

LOCKING DEVICE

Harrow

2шт.

4

24143902

COMPRESSION SPRING

2шт.

5

20090105

SPRING SEAT

Spring Holder

2шт.

6

38-1816

LOCK PIN,1/8" x 1", Slotted

2шт.

7

06251341

TUBE

2шт.

8

06250358

LINK

Tine

4шт.

9

06250150

CHANNEL

Channel

4шт.

10

06251331

LINKAGE

Linkage

2шт.

11

06250041

CHANNEL

4-Tine, 53 Inch

3шт.

11

06250051

CHANNEL

5-Tine, 68 Inch

3шт.

11

06250061

CHANNEL

6-Tine, 83 Inch

3шт.

11

06250071

CHANNEL

7-Tine, 98 Inch

3шт.

11

06250081

CHANNEL

8-Tine, 113 Inch

3шт.

11

06250091

CHANNEL

9-Tine, 128 Inch

3шт.

11

06250104

CHANNEL

10-Tine, 143 Inch

3шт.

12

06250180

CHANNEL

Splice

1шт.

13

06250200

CLAMP

1шт.

14

33404416

TINE

Coil

1шт.

15

06250155

CHANNEL

Rear Channel

2шт.

20

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

4шт.

21

280375

NUT,3/4"-10, GC

4шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

23

86992212

NUT

5/16, NC

2шт.

24

14816331

CLEVIS PIN

1 x 4-1/8

2шт.

25

432-2032

COTTER PIN,5/16" x 2"

5/16" x 2"

2шт.

26

17614030

BUSHING

7/8, Machinery

2шт.

27

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

28

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

29

425-108

NUT,1/2" - 13, Gr 5

4шт.

30

495-21056

WASHER,1/2"

Flat

4шт.

31

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

32

231-4246

LOCK NUT,3/8"-16, GB

6шт.

33

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

6шт.

34

495-21044

WASHER,3/8"

12шт.

35

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

36

425-106

NUT,3/8"-16, Cl 5

6шт.

37

14810290

HEADED PIN

5/8 x 4.4, Clevis

2шт.

38

06250210

BUSHING

Stop

4шт.

39

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

2шт.

40

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Flat

6шт.

41

06250170

SPACER

Pivot

4шт.

42

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

43

88871

NUT,1/2"-13, GC

1шт.

44

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

45

06250190

BUSHING

Pivot

2шт.

46

425-1014

NUT,7/8"-9, G5

4шт.

47

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

48

06250334

SPACER

Flat

2шт.

49

06251395

CRANK

Adjustment

1шт.

50

18534332

DECAL

Raise

2шт.

51

311864A1

REFLECTOR

Amber

1шт.

NOTE: Mount On Outside Main Frame Mounting Tubes Only

1шт.

Выбрано товаров: 54
