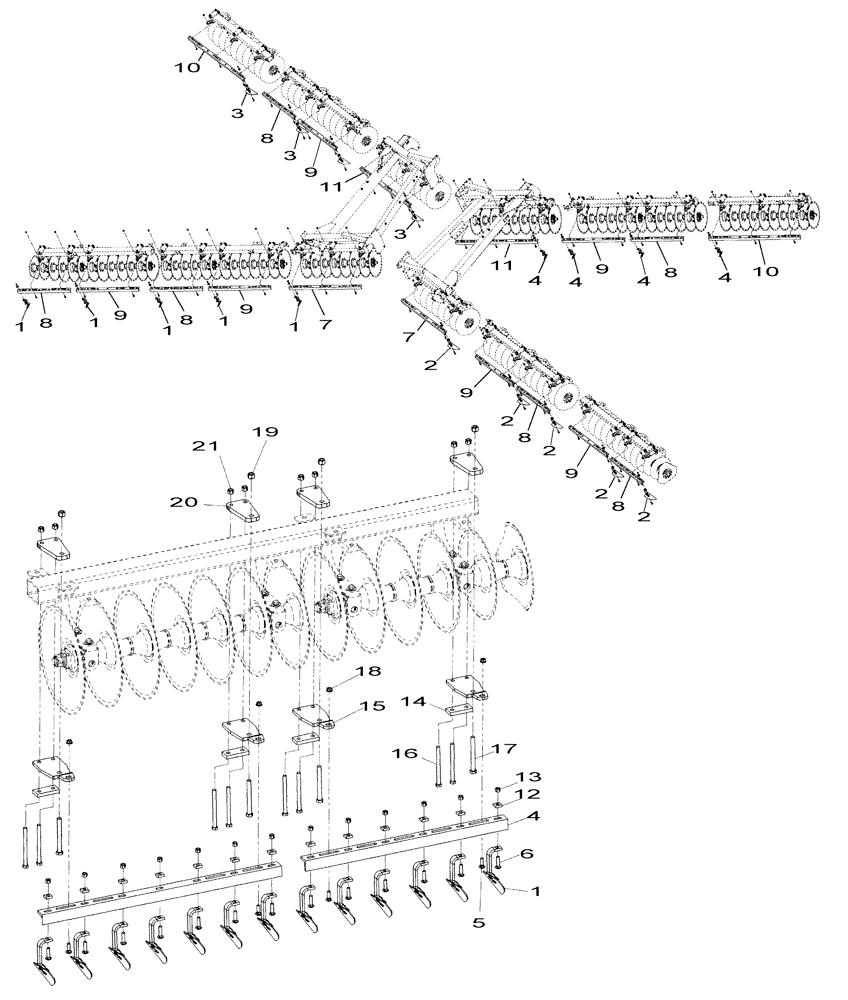

Запчасти Case IH 370 TRUE-TANDEM (75.200.16) - DISK SCRAPER (75) - SOIL PREPARATION

1

87567021

SCRAPER BLADE

LH RR, PTD

1шт.

2

87567027

SCRAPER BLADE

RH RR, PNTD

1шт.

3

87566995

SCRAPER

LH FR, PTD

1шт.

4

87567013

SCRAPER

SCRAPER ASSY, 920 ROC, RH FR, PTD

1шт.

5

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

6

84180924

CARRIAGE BOLT

5/8-11 X 2.5 GR8

1шт.

7

87565563

BRACKET

ANGLE, 8 BLD 8 SCRPR, 9 IN SPCNG, PTD

1шт.

8

87565555

BRACKET

47 Foot, Only Different On Outer Wing

1шт.

8

84154334

ANGLE

42 Foot, Only Different on Outer Wing

1шт.

9

87565561

BRACKET

ANGLE, DISK GANGS, PTD

1шт.

10

87565560

BRACKET

47 Foot ANGLE, DISK GANGS, PTD

1шт.

10

87565561

BRACKET

42 Foot ANGLE, DISK GANGS, PTD

1шт.

11

87484224

ANGLE

SCRAPER, 9 BLADE

1шт.

12

87623346

WASHER,16.66mm ID x 38.1mm OD x 13.72mm Thk

0.656 IN ID, SPECIAL, PTD

1шт.

13

85700693

NUT,5/8" - 11, Gr C

1шт.

14

410082A1

STRAP

PLATE PTD, GANGS

1шт.

15

84136899

BAR

GANG SCRAPER MOUNT

1шт.

16

280441

BOLT,Hex, 3/4" - 10 x 9", Gr 5

1шт.

17

87490804

BOLT

7/8-9X8.00 GR 5 ZND

1шт.

18

84180923

FLANGE NUT

FLANGE, P/T 5/8-11 GR G ZND

1шт.

19

87681198

NUT,Hex, 7/8"-9, 0.45 high

1шт.

20

84205366

PLATE

4X6 GANG, TOP, 7/8

1шт.

21

280375

NUT,3/4"-10, GC

1шт.
