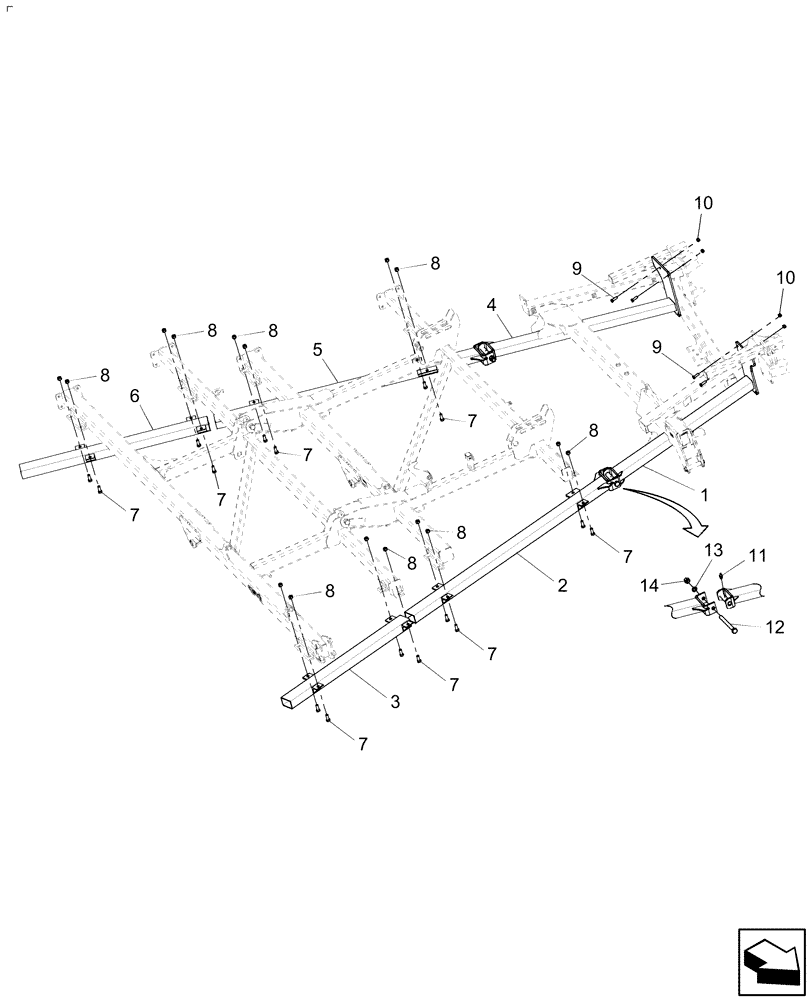

Запчасти Case IH 370 TRUE-TANDEM (75.200.04) - GANG TUBE PARTS (75) - SOIL PREPARATION

1

84145632

FRAME

Main Gang, Left Hand

1шт.

1

84145633

FRAME

Main Gang, Right Hand

1шт.

2

84136895

U-FRAME

Wing Gang, Left Hand, Front

1шт.

2

84144355

U-FRAME

Wing Gang, Right Hand, Front

1шт.

3

84148654

U-FRAME

Wing Gang, Outer, Left Hand, Front

1шт.

3

84148656

U-FRAME

Wing Gang, Outer, Right Hand, Front

1шт.

5

84136935

U-FRAME

Wing Gang, Left Hand, Rear

1шт.

5

84144830

U-FRAME

Wing Gang, Right Hand, Rear

1шт.

6

84148655

U-FRAME

Wing Gang, Outer, Left Hand Rear

1шт.

6

84148657

U-FRAME

Wing Gang, Outer, Right Hand, Rear

1шт.

7

20348

BOLT

32шт.

8

87681198

NUT,Hex, 7/8"-9, 0.45 high

32шт.

9

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

8шт.

10

280375

NUT,3/4"-10, GC

8шт.

11

87414

LUBE NIPPLE,1/4" - 28

4шт.

12

84144734

BOLT

4шт.

13

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

4шт.

14

86614103

NUT,1 1/4"-7, GC

4шт.
