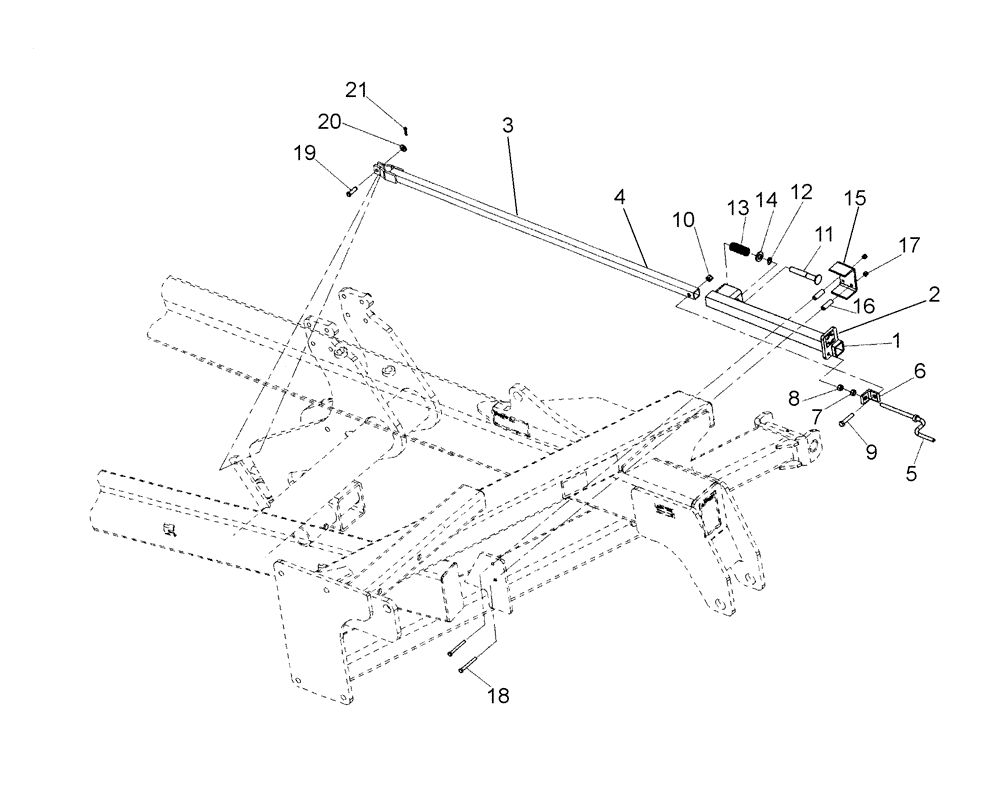

Запчасти Case IH 370 TRUE-TANDEM (75.200.03) - SINGLE POINT DEPTH CONTROL PARTS (75) - SOIL PREPARATION

1

441965A1

TUBE

Inc. 2

1шт.

2

87414072

DECAL

Depth

1шт.

3

84143684

TUBE,1553 mm L

Depth Control, Inc. 4

1шт.

4

1978881C1

DECAL

Depth Control

1шт.

5

87412274

HANDLE

Crank

1шт.

6

87412462

ANGLE

Bolt On

1шт.

7

280431

NUT,1/2"-13, G5

1шт.

8

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

9

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

10

88871

NUT,1/2"-13, GC

1шт.

11

396153A1

PIN

Hydraulic Depth Valve

1шт.

12

505026

SNAP RING,#75, .574" Dia, E-Type

1шт.

13

396152A1

COMPRESSION SPRING

Hydraulic Depth Valve

1шт.

14

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

15

84143775

LUG

Depth Control

1шт.

16

87417259

SPACER

2шт.

17

88902

NUT,3/8"-16

3/8, NC

2шт.

18

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

19

84158480

HEADED PIN

1шт.

20

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

21

87397

COTTER PIN,3/16" OD x 1" L

1шт.
