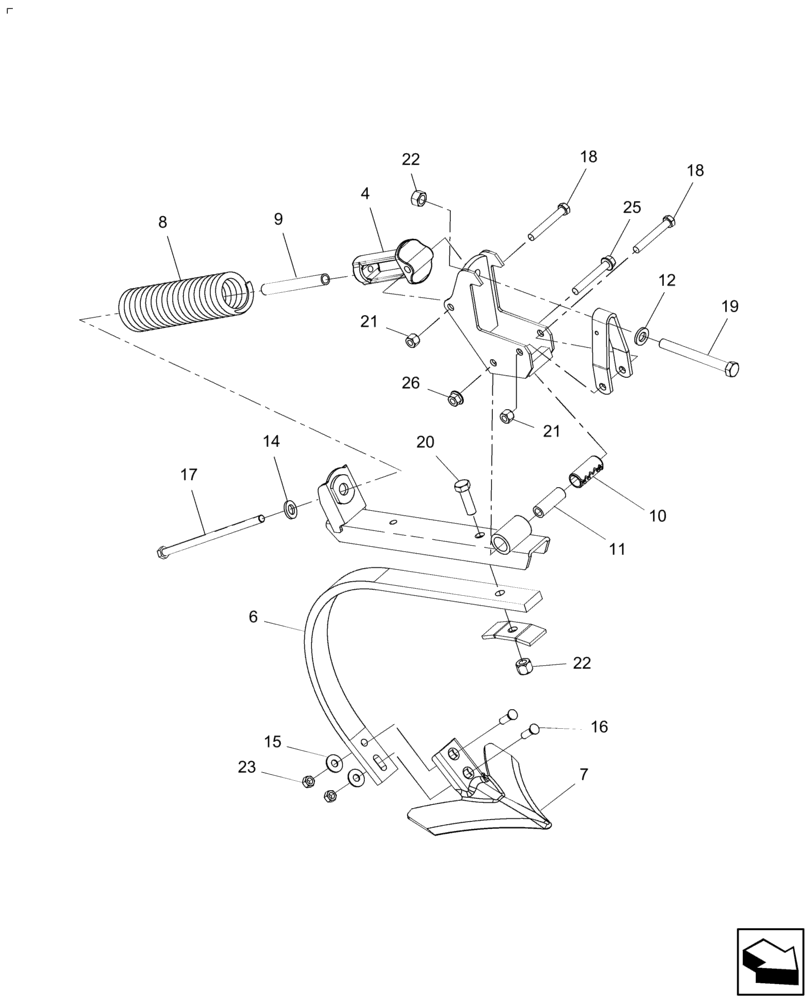

Запчасти Case IH 370 TRUE-TANDEM (75.200.02) - SHANK ASSEMBLY (75) - SOIL PREPARATION

1

06403260

MOUNTING PARTS

Shank (Does Not Include Items 7, 15 - 16, 23)

1шт.

4

20090192

SPRING

Pivot

1шт.

5

06210150

BRACKET

1шт.

6

33017584

SHANK

1шт.

7

372561A1

SWEEP

SWEEP, MAXXI-POINT 9.3"

1шт.

8

24143895

COMPRESSION SPRING

1шт.

9

06403415

BUSHING

1шт.

10

44008755

BUSHING,22.48mm ID x 28.84mm OD x 61.93mm L

7/8 ID Connex

1шт.

11

06403310

BUSHING

Heat Treated

1шт.

12

17411011

WASHER,17.2mm ID x 32mm OD x 4.37mm Thk

5/8 Flat

1шт.

14

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16 ID x 1-3/8 OD

1шт.

15

495-21050

WASHER,7/16"

2шт.

16

419-3724

PLOW BOLT,#3, 7/16" - 14 x 1 1/2", Gr 5

2шт.

17

16908445

BOLT

1/2 x 11, NC, Hex gr 5

1шт.

18

16908145

BOLT

1/2 x 3-1/2, NC Hex gr 5

2шт.

19

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

1шт.

20

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

1шт.

21

86992215

LOCK NUT,1/2"-13, GC

2шт.

22

85700693

NUT,5/8" - 11, Gr C

1шт.

23

425-107

NUT,7/16"-14, G5

2шт.

24

425-1010

NUT,5/8"-11, G5

1шт.

25

16908148

BOLT

1/2, Flanged Head, gr 8

1шт.

26

14120801

FLANGE NUT

1/2, Flanged, gr 8

1шт.
