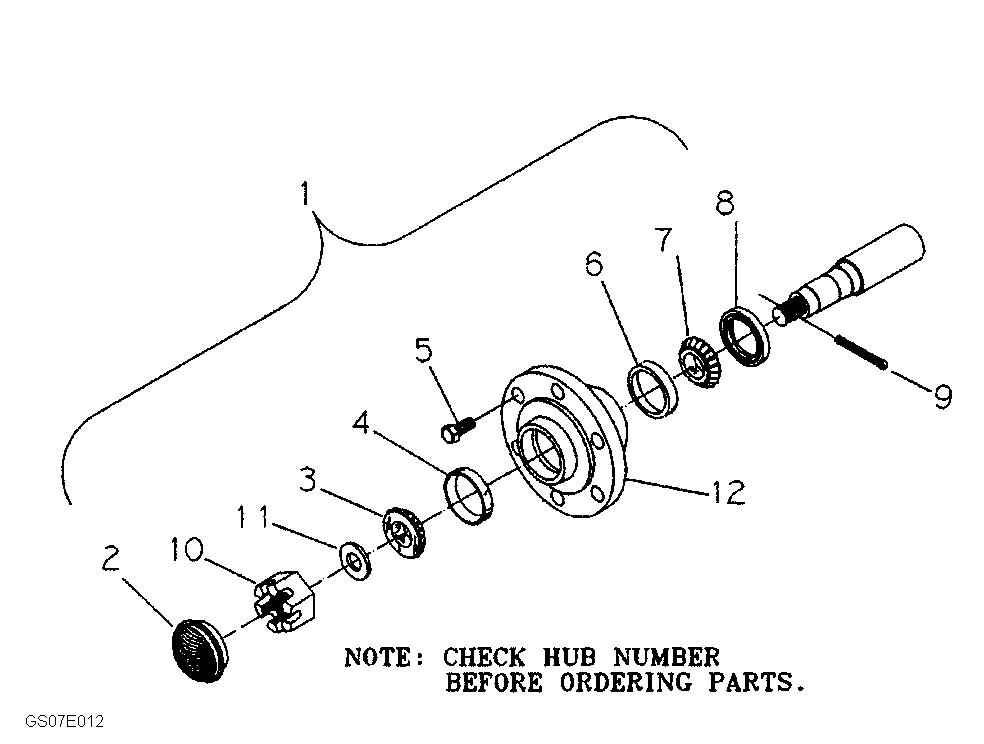

Запчасти Case IH 370 TRUE-TANDEM (44.100.06) - 783 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

1

28078351

HUB ASSY.

With Spindle

1шт.

2

28477700

HUB CAP

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25, Timken LM67048

1шт.

4

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

1шт.

5

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2, NF, Lug

6шт.

6

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

1шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

8

21931870

SEAL

1шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

Not Shown

1шт.

10

14051402

NUT

1шт.

11

17915000

WASHER

1шт.

12

28278300

HUB

With Cups

1шт.

13

28378351

SPINDLE

1шт.
