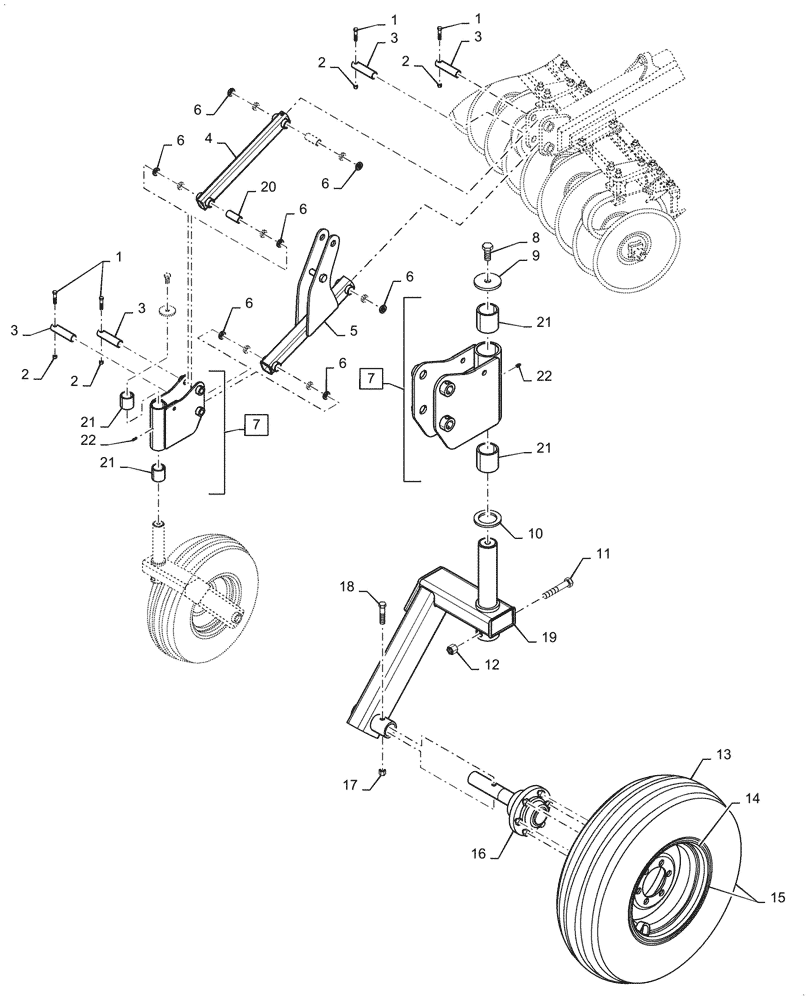

Запчасти Case IH 370 TRUE-TANDEM (44.100.04) - PIVOTING GAUGE WHEEL (44) - WHEELS

1

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

4шт.

2

88871

NUT,1/2"-13, GC

4шт.

3

84142649

PIN

Wheel

2шт.

4

84140291

UPPER LINK

Gauge Wheel

2шт.

5

84140337

UPPER LINK

Gauge Wheel

2шт.

6

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

2шт.

7

84140954

BRACKET, SUPPORTING

Gauge Wheel Incl 21-22

1шт.

8

87018375

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8, Full Thd

1шт.

9

84141269

WASHER

.75"

1шт.

10

84141231

WASHER

2.5"

1шт.

11

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

12

280375

NUT,3/4"-10, GC

1шт.

13

PL

PROCURE LOCALLY

Tire 9.5-15 8 Ply Tubless

1шт.

14

10108254

WHEEL

8 x 15 6 hole silver

1шт.

15

10008256

LAND WHEEL

9.5 -15

1шт.

16

28078351

HUB ASSY.

With Spindle 783

1шт.

17

88871

NUT,1/2"-13, GC

1шт.

18

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

19

84195166

FRAME

Pivoting Gauge Wheel

1шт.

20

84266874

BUSHING

1.5 x 1.25 x 3.625

2шт.

21

84261452

BUSHING

Polylube 3X 22.5 x 2.5

2шт.

22

87414

LUBE NIPPLE,1/4" - 28

1шт.
