(90.100.AA[04]) - HEAVY DUTY EYEBOLT UPGRADE KIT RIGHT 370

Запчасти Case IH 370 TRUE-TANDEM (90.100.AA[04]) - HEAVY DUTY EYEBOLT UPGRADE KIT RIGHT 370 (90) - PLATFORM, CAB, BODYWORK AND DECALS

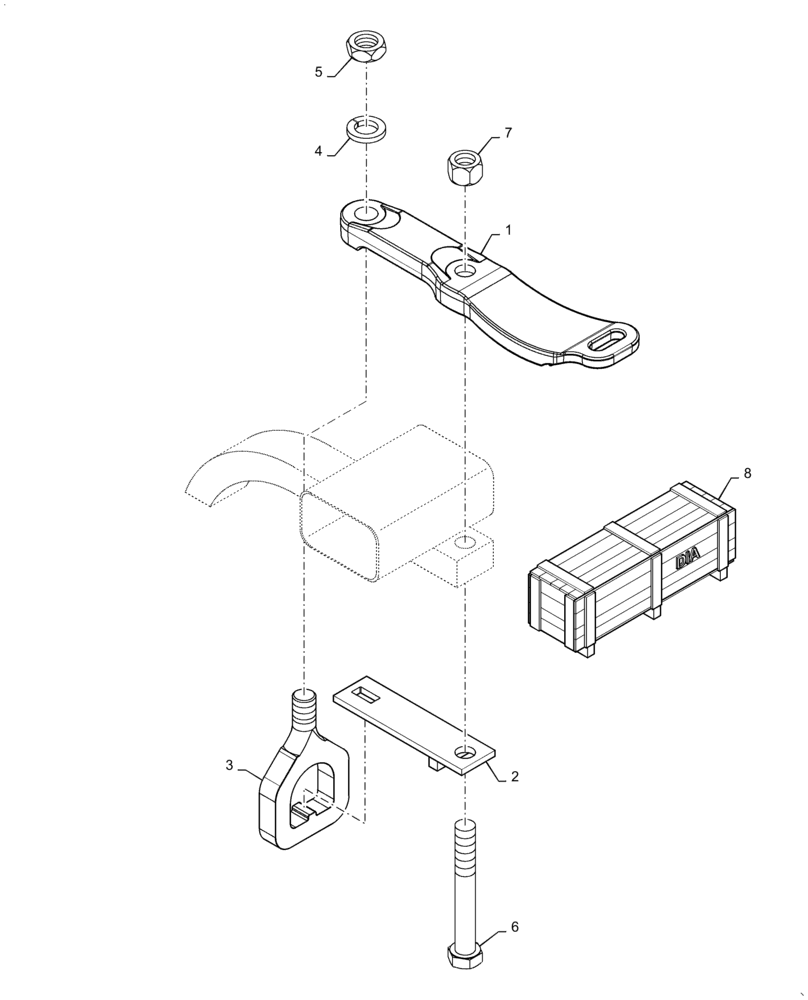

Схема запчастей Case IH 370 TRUE-TANDEM - (90.100.AA[04]) - HEAVY DUTY EYEBOLT UPGRADE KIT RIGHT 370 (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
3
2
8
6
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47762502

MOUNT

Scraper 1" Eyebolt 370 Right

1шт.

2

84559560

RETAINER

1шт.

3

84554629

EYEBOLT

1шт.

4

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.

5

87553819

JAM NUT

1шт.

6

87477172

BOLT

1шт.

7

87012309

LOCK NUT,7/8"-9, GB

1шт.

8

47762406

KIT

heavy duty eyebolt upgrade kit Incl 1 - 7 Ins Sheet 47708608

1шт.
