Запчасти Case IH 370 TRUE-TANDEM (75.200.15) - 9 IN MAIN GANG SCRAPER PARTS 2006 AND PRIOR UNITS (75) - SOIL PREPARATION

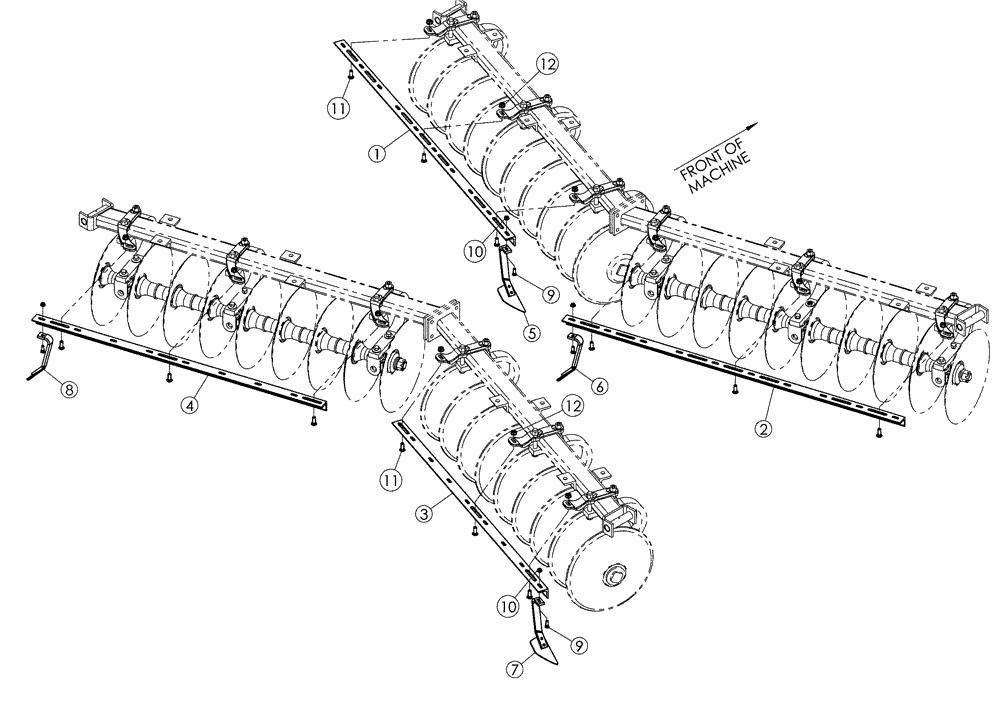

Схема запчастей Case IH 370 TRUE-TANDEM - (75.200.15) - 9 IN MAIN GANG SCRAPER PARTS 2006 AND PRIOR UNITS (75) - SOIL PREPARATION
12
2
11
1
9
3
8
9
11
10
12
4
6
5
10
7

Артикул

Название

Примечание

Количество

1

87403308

ANGLE

Scraper, 6 Blades, 6 Scrapers, 19 - 22 ft, Front Lh & Rh

1шт.

1

87403924

ANGLE

Scraper, 8 Blades, 8 Scrapers, 25 ft, Front, LH

1шт.

1

87403315

ANGLE

Scraper, 10 Blades, 10 Scrapers, 28 - 34 ft, Front, LH

1шт.

2

87408095

ANGLE

Scraper, 6 Blades, 5 Scrapers, 19 - 22 ft, Rear Rh

1шт.

2

87403924

ANGLE

Scraper, 8 Blades, 8 Scrapers, 25 ft, Front, RH

1шт.

2

87403315

ANGLE

Scraper, 10 Blades, 10 Scrapers, 28 - 34 ft, Front, RH

1шт.

3

87408096

ANGLE

Scraper, 6 Blades, 5 Scrapers, 19 - 22 ft, Rear, Lh

1шт.

3

87403309

ANGLE

Scraper, 7 Blades, 6 Scrapers, 25 ft, Rear, RH

1шт.

3

87403313

ANGLE

Scraper, 9 Blades, 8 Scrapers, 28 - 34 ft, Rear, RH

1шт.

4

87403310

ANGLE

Scraper, 7 Blades, 6 Scrapers, 25 ft, Rear, LH

1шт.

4

87403314

ANGLE

Scraper, 9 Blades, 8 Scrapers, 28 - 34 ft, Rear, LH

1шт.

5

404767A1

BRACKET

Rigid Assembly, Front, LH

1шт.

6

404768A1

BRACKET

Rigid Assembly, Front, RH

1шт.

7

404769A1

BRACKET

Rigid Assembly, Rear, LH

1шт.

8

404770A1

BRACKET

Rigid Assembly, Rear, RH

1шт.

9

231425A1

BOLT

1/2, Special

1шт.

10

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

11

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

12

1256884C1

NUT

Flange, 5/8, NC

1шт.

Выбрано товаров: 19
