Запчасти Case IH 370 TRUE-TANDEM (75.200.12) - 9 INCH RIGID WING GANG PARTS 2007 MODELS AND AFTER (75) - SOIL PREPARATION

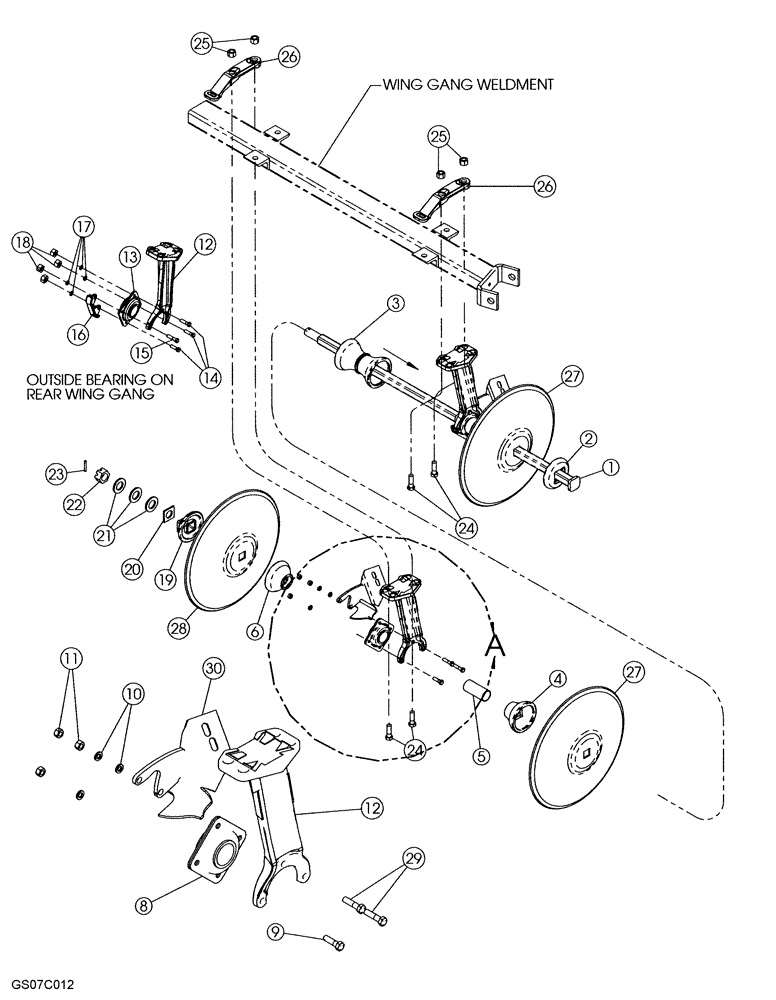

Схема запчастей Case IH 370 TRUE-TANDEM - (75.200.12) - 9 INCH RIGID WING GANG PARTS 2007 MODELS AND AFTER (75) - SOIL PREPARATION
26
19
1
15
12
4
2
23
25
0
11
22
13
24
27
5
10
17
26
12
8
27
8
29
25
18
16
3
21
9
2
14
6

Артикул

Название

Примечание

Количество

1

447938A1

PLOW BOLT

Square Arbor, 6 Blades, 34 Foot

1шт.

1

447939A1

PLOW BOLT

Square Arbor, 7 Blades, 19, 31-37 Foot

1шт.

1

447941A1

PLOW BOLT

Square Arbor, 9 Blades, 19, 22, 25-28, 34, And 37 Foot

1шт.

1

447943A1

PLOW BOLT

Square Arbor, 11 Blades, 22 & 31 Foot

1шт.

1

87401024

PLOW BOLT

Square Arbor, 12 Blades, 25 - 28 Foot

1шт.

1

447940A1

PLOW BOLT

Square Arbor, 8 Blades, 37 Foot

1шт.

2

60615C1

WASHER

Head

1шт.

3

437773A1

SPOOL

Spacing, 9 Inch

1шт.

4

437774A1

SPOOL

Bearing, Long, 9 Inch

1шт.

5

86983480

BUSHING,49.28mm ID x 55.17mm OD x 122mm L

Spacing Support

1шт.

6

437775A1

SPOOL

Bearing, Short, 9 Inch

1шт.

7

242130A1

SUPPORT

Bearing

1шт.

8

ST740B

BALL BEARING,55.58mm ID

1шт.

8

ST740BGV

BEARING

Value, Ball Bearing

1шт.

9

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

11

280431

NUT,1/2"-13, G5

1шт.

12

242130A1

SUPPORT

Bearing

1шт.

13

ST740B

BALL BEARING,55.58mm ID

1шт.

14

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

15

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

16

129753C1

BEARING COVER

Bearing

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

18

280431

NUT,1/2"-13, G5

1шт.

19

549973R2

SQ HOLE WASHER

End

1шт.

20

87428606

NUT

Strip, Square Hole

1шт.

21

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

22

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

23

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

23

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

37 ft

1шт.

24

87019287

BOLT

7/8 x 5-14, Gd 5

1шт.

25

87012309

LOCK NUT,7/8"-9, GB

Hex

1шт.

26

86988730

MOUNTING PARTS

Scraper Angle

1шт.

27

87443003

PLOW DISC

DISK, 24"X5mm CC 760mm R.O.C.\Concavity 69mm

1шт.

27

87443004

PLOW DISC

DISK, 24"X6.5mm CC 760mm R.O.C.\ Concavity 69mm

1шт.

27

87443005

PLOW DISC

DISK, 24"X5mm CC 920mm R.O.C.\Concavity 59mm

1шт.

27

87443006

PLOW DISC

DISK, 24"X6.5mm CC 920mm R.O.C.\Concavity 60mm

1шт.

27

87401019

PLOW DISC

DISK, TRIANGLE SCALLOPED BLADE, 508mm X 5mm

1шт.

28

87442999

PLOW DISC

DISK, 22"X5mm CC 760mm R.O.C.\Concavity 57mm

1шт.

28

87442998

PLOW DISC

DISK, 20"X5mm CC 760mm R.O.C.\Concavity 47mm

1шт.

28

87443000

PLOW DISC

DISK, 22"X6.5mm CC 760mm R.O.C.\Concavity 57mm

1шт.

28

87443001

PLOW DISC

DISK, 22"X5mm CC 920mm R.O.C.\Concavity 51mm

1шт.

28

87443002

PLOW DISC

DISK, 22"X6.5mm CC 920mm R.O.C.\Concavity 51mm

1шт.

28

87401019

PLOW DISC

DISK, 22"X5mm CC 760mm R.O.C.\Concavity 47.5mm

1шт.

29

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Plated

1шт.

30

87563131

BRACKET

Bracket, Scraper, Lh

1шт.

30

87563138

BRACKET

Bracket, Scraper, Rh

1шт.

Выбрано товаров: 47
