Запчасти Case IH 370 TRUE-TANDEM (75.200.10) - 9 INCH CUSHION MAIN GANG PARTS 2007 MODELS AND AFTER (75) - SOIL PREPARATION

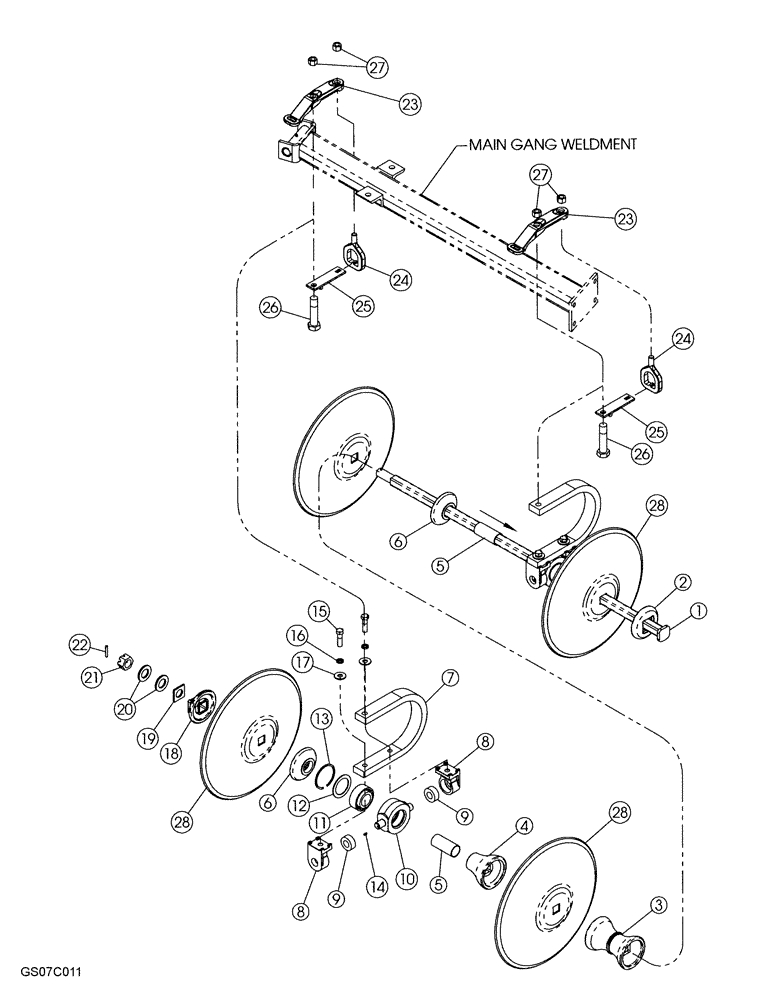

Схема запчастей Case IH 370 TRUE-TANDEM - (75.200.10) - 9 INCH CUSHION MAIN GANG PARTS 2007 MODELS AND AFTER (75) - SOIL PREPARATION
5
28
6
4
10
24
18
8
17
26
25
21
0
5
8
3
28
11
6
24
16
11
8
20
14
28
1
7
12
2
13
26
22
27
23
27
15
23
25
9
12

Артикул

Название

Примечание

Количество

1

447938A1

PLOW BOLT

Square Arbor, 6 Blades

1шт.

1

447939A1

PLOW BOLT

Square Arbor, 7 Blades

1шт.

1

447940A1

PLOW BOLT

Square Arbor, 8 Blades

1шт.

1

447941A1

PLOW BOLT

Square Arbor, 9 Blades

1шт.

1

447942A1

PLOW BOLT

Squre Arbor, 10 Blades

1шт.

2

60615C1

WASHER

Head

1шт.

3

437773A1

SPOOL

Spacing, 9 Inch

1шт.

4

86983463

SPOOL

Bearing, Long, 9 Inch

1шт.

5

86983480

BUSHING,49.28mm ID x 55.17mm OD x 122mm L

Spacing Support

1шт.

6

86983464

SPOOL

Bearing, Short, 9 Inch

1шт.

7

86988372

SPRING

Bearing

1шт.

8

195109A1

TRUNNION

Pivot

1шт.

9

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

Special

1шт.

10

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

1шт.

11

409556A1

BEARING, BALL,55.56mm ID x 110mm OD x 55.56mm W

1шт.

12

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

Bearing Retainer

1шт.

13

101-21433

SNAP RING,#433, 4.641", Int

Internal

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

1шт.

16

492-11075

LOCK WASHER,3/4"

1шт.

17

495-21081

WASHER,3/4"

9 Gauge

1шт.

18

549973R2

SQ HOLE WASHER

End

1шт.

19

87428606

NUT

Strip, Square Hole

1шт.

20

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

21

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

22

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

23

86988730

MOUNTING PARTS

Scraper Angle, Heavy Rigid

1шт.

24

195495A1

EYEBOLT,Spring, 7/8" - 9 x 176mm

BOLT, EYE

1шт.

25

244620A1

RETAINER

1шт.

26

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

1шт.

27

87012309

LOCK NUT,7/8"-9, GB

1шт.

28

87443003

PLOW DISC

DISK, 24"X5mm CC 760mm R.O.C.\Concavity 69mm

1шт.

28

87443004

PLOW DISC

DISK, 24"X6.5mm CC 760mm R.O.C.\ Concavity 69mm

1шт.

28

87443005

PLOW DISC

DISK, 24"X5mm CC 920mm R.O.C.\Concavity 59mm

1шт.

28

87443006

PLOW DISC

DISK, 24"X6.5mm CC 920mm R.O.C.\Concavity 60mm

1шт.

Выбрано товаров: 35
