Запчасти Case IH 370 TRUE-TANDEM (75.200.07) - 9 INCH RIGID MAIN GANG PARTS 2006 AND PRIOR UNITS (75) - SOIL PREPARATION

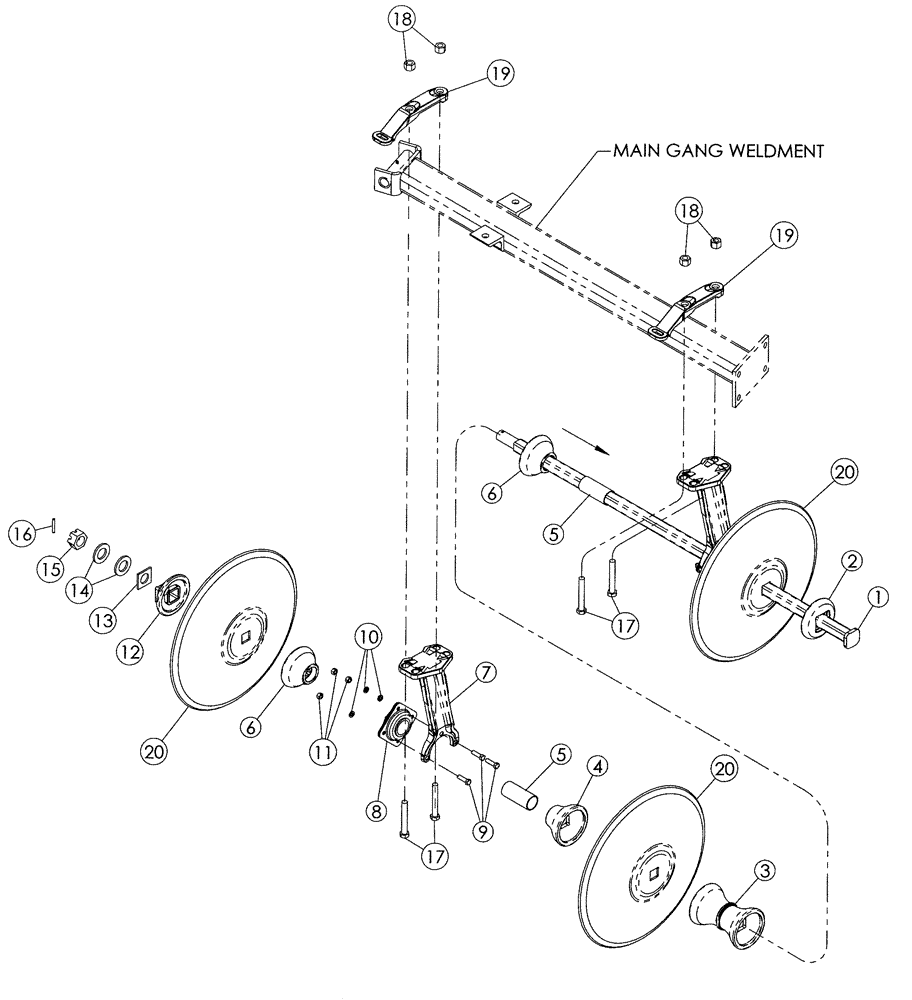

Схема запчастей Case IH 370 TRUE-TANDEM - (75.200.07) - 9 INCH RIGID MAIN GANG PARTS 2006 AND PRIOR UNITS (75) - SOIL PREPARATION
16
15
9
17
6
12
2
17
14
10
5
11
7
20
20
20
18
18
1
5
19
6
3
13
4
8
19

Артикул

Название

Примечание

Количество

1

447938A1

PLOW BOLT

Square Arbor, 6 Blades, 19 - 22 ft

1шт.

1

447939A1

PLOW BOLT

Square Arbor, 7 Blades, 25 ft

1шт.

1

447940A1

PLOW BOLT

Square Arbor, 8 Blades, 25 ft

1шт.

1

447941A1

PLOW BOLT

Square Arbor, 9 Blades, 28 - 34 ft

1шт.

1

447942A1

PLOW BOLT

Square Arbor, 10 Blades, 28 - 34 ft

1шт.

2

60615C1

WASHER

Head

1шт.

3

437773A1

SPOOL

Spacing, 9 In

1шт.

4

437774A1

SPOOL

Bearing, Long, 9 In

1шт.

5

86983480

BUSHING,49.28mm ID x 55.17mm OD x 122mm L

Spacing Support

1шт.

6

437775A1

SPOOL

Bearing, Short, 9 In

1шт.

7

242130A1

SUPPORT

Bearing

1шт.

8

ST740B

BALL BEARING,55.58mm ID

1шт.

8

ST740BGV

BEARING

Value, Ball Bearing

1шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

1шт.

12

549973R2

SQ HOLE WASHER

End

1шт.

13

87428606

NUT

Strip, Square Hole

1шт.

14

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor Bolt

1шт.

15

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

16

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

17

87019287

BOLT

7/8 x 5-1/4, gr 5

1шт.

18

87012309

LOCK NUT,7/8"-9, GB

1шт.

19

86988730

MOUNTING PARTS

Scraper Angle

1шт.

20

87443003

PLOW DISC

DISK, 24"X5mm CC 760mm R.O.C.\Concavity 69mm

1шт.

20

87443004

PLOW DISC

DISK, 24"X6.5mm CC 760mm R.O.C.\ Concavity 69mm

1шт.

20

87443005

PLOW DISC

DISK, 24"X5mm CC 920mm R.O.C.\Concavity 59mm

1шт.

20

87443006

PLOW DISC

DISK, 24"X6.5mm CC 920mm R.O.C.\Concavity 60mm

1шт.

Выбрано товаров: 28
