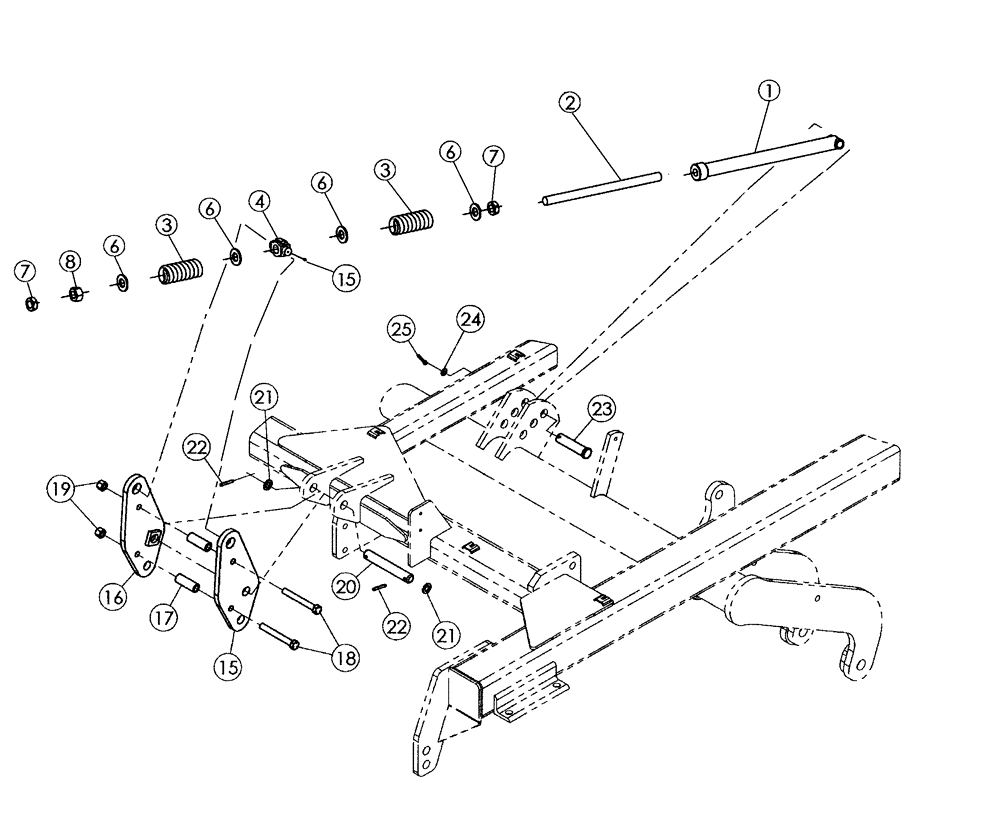

Запчасти Case IH 370 TRUE-TANDEM (75.200.02) - SPRING LEVELING PARTS 37 FOOT (75) - SOIL PREPARATION

1

NSS

NOT SOLD SEPARAT

Leveling, 37 Foot, 87482013

1шт.

2

87455477

ADJUSTMENT SCREW,1 1/2" - 6 x 635mm

Threaded Leveling

1шт.

3

446677A1

SPRING

Hitch

2шт.

4

87455476

TRUNNION

Hitch Screw

1шт.

6

84156982

WASHER,1.53" ID x 3" OD x 0.26" Thk

1.531 x 3 x 0.259 HTS ZND HDN

4шт.

7

87010729

JAM NUT,Jam, 1 1/2"-6, G5

2шт.

8

3541

NUT,1 1/2"-6, G5

1.5 - 6 GR5 ZND

1шт.

14

87414

LUBE NIPPLE,1/4" - 28

1шт.

15

87401106

CRANK

Bell, Lh

1шт.

16

87401107

CRANK

Bell, Rh

1шт.

17

447862A1

TUBE

Leveling

2шт.

18

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

19

280375

NUT,3/4"-10, GC

2шт.

20

86989785

PIN

1-1/4 x 187 mm

1шт.

21

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

2шт.

22

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

2шт.

23

427-20500

CLEVIS PIN,31.75mm OD x 125mm L

1шт.

24

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

1шт.

25

432-1632

COTTER PIN,1/4" x 2"

1шт.
