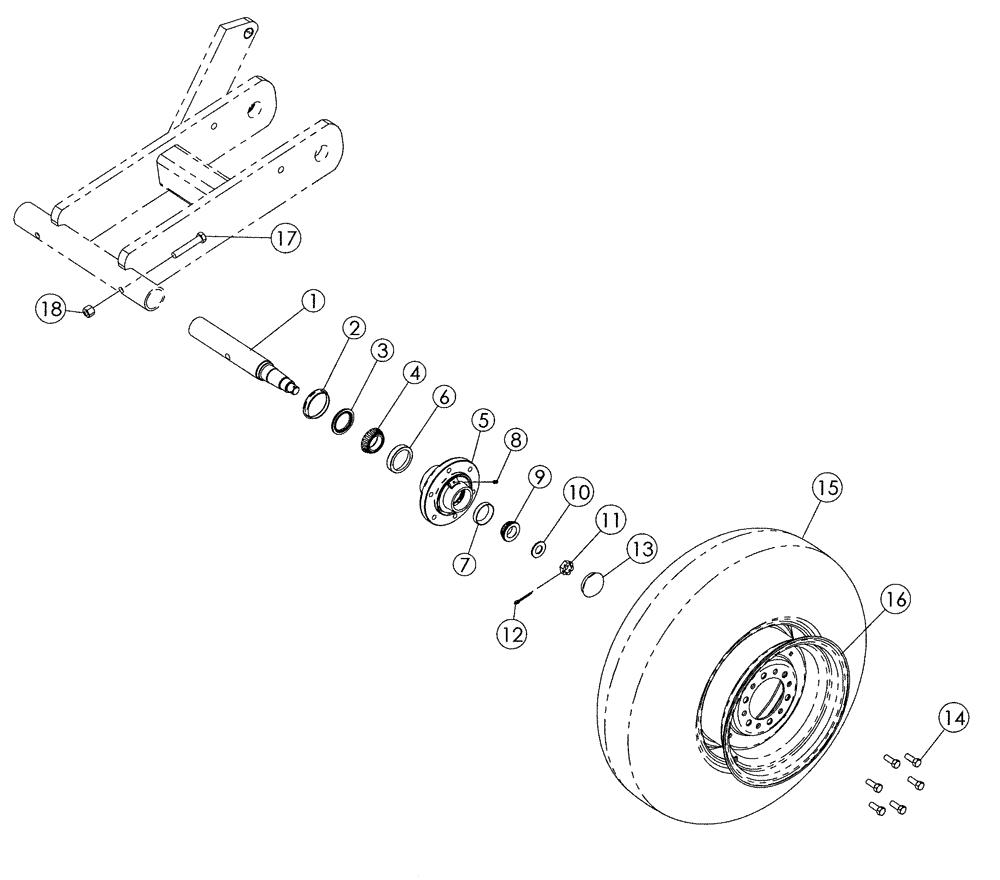

Запчасти Case IH 370 TRUE-TANDEM (44.100.09) - WING DUAL 6-BOLT PARTS (44) - WHEELS

1

86990480

SPINDLE

6-Bolt

1шт.

2

594703R1

SLEEVE

Wear

1шт.

3

594702R91

SEAL

Type X15

1шт.

4

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625 ID

1шт.

5

87426111

HUB

Machined, Inc. 6, 7

1шт.

6

663558R1

BEARING CUP

2.892 OD

1шт.

7

651817R1

BEARING CUP

2.33 OD

1шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 ID

1шт.

10

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

23/32 ID

1шт.

11

70120D

SLOTTED NUT,7/8"-14

1шт.

12

432-832

COTTER PIN,1/8" x 2"

1шт.

13

224066C1

HUB CAP

1шт.

14

277538A1

BOLT,1/2" - 20 x 1.42"

Wheel

1шт.

15

NSS

NOT SOLD SEPARAT

Tire - 11L x 15 (8 Ply) I-1 Tubeless

1шт.

16

10108254

WHEEL

15 x 8LBH, Silver

1шт.

17

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

18

85700693

NUT,5/8" - 11, Gr C

1шт.
