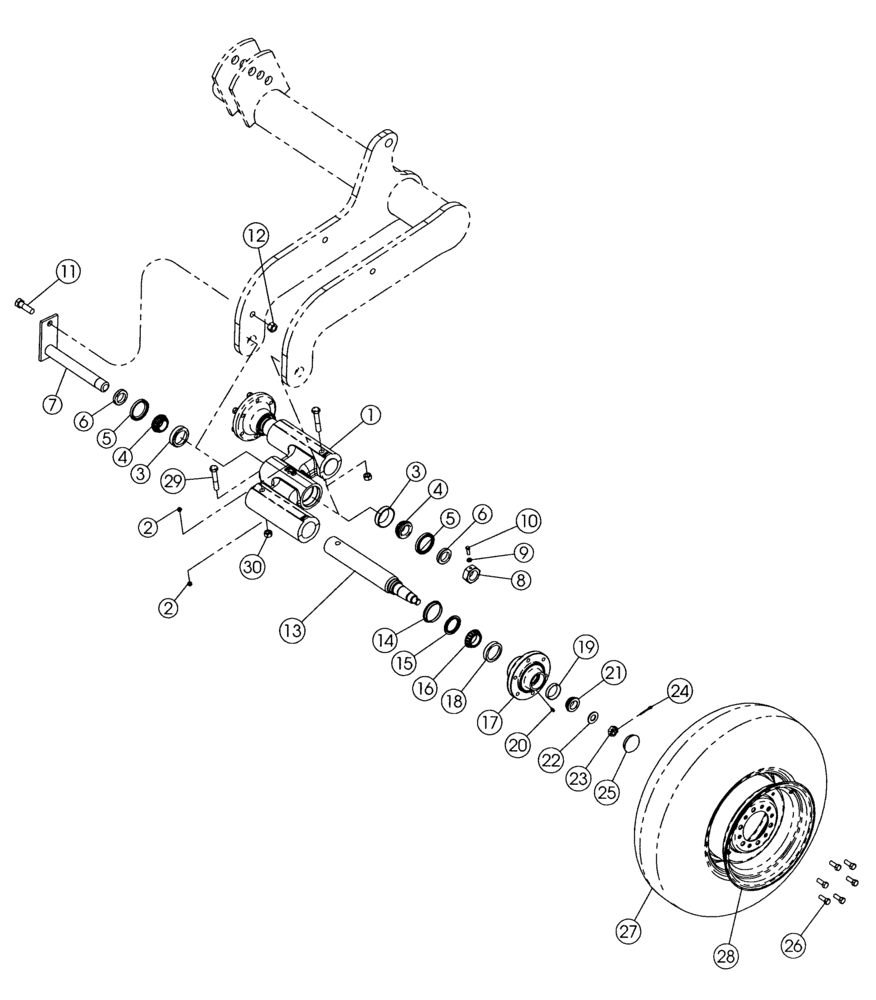

Запчасти Case IH 370 TRUE-TANDEM (44.100.02[01]) - ROCKSHAFT TANDEM 6-BOLT PARTS (44) - WHEELS

1

397171A1

TUBE

6-Bolt Tandem Axle Inc. 2, 3

2шт.

Prior to 2007 Models

1шт.

Replaced By 87561153 (1) & 87517019 (2)

1шт.

1

87561153

CASTING

6-Bolt Tandem Axle

2шт.

Used On 2007 And After Models

1шт.

2

219-86

LUBE NIPPLE,1/8" NPTF

4шт.

3

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

3.000 OD

4шт.

4

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50 ID

4шт.

5

21932510

SEAL

2.29 ID

4шт.

6

06400573

SPACER

Bearing

4шт.

7

87401183

PIN,38.07mm OD x 325mm L

1-1/2, Tandem

2шт.

8

14032409

NUT

1-1/2, Special Jam

2шт.

9

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

10

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Set, Square Head

2шт.

11

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

12

280375

NUT,3/4"-10, GC

2шт.

13

86990480

SPINDLE

6 Bolt

4шт.

Prior to 2007 Models

1шт.

13

87517011

STUB AXLE/STEERING S

6 Bolt

4шт.

Used On 2007 And After Models

1шт.

14

594703R1

SLEEVE

Wear

4шт.

15

594702R91

SEAL

Type X15

4шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625 ID

4шт.

17

87426111

HUB

With Cups, Inc. 18, 19

4шт.

18

663558R1

BEARING CUP

2.892 OD

4шт.

19

651817R1

BEARING CUP

2.33 OD

4шт.

19

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

21

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 ID

4шт.

22

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

23/32 ID

4шт.

23

70120D

SLOTTED NUT,7/8"-14

4шт.

24

432-832

COTTER PIN,1/8" x 2"

4шт.

25

224066C1

HUB CAP

4шт.

26

277538A1

BOLT,1/2" - 20 x 1.42"

Wheel

24шт.

27

NSS

NOT SOLD SEPARAT

12.5L x 15 (10 Ply) I-1 Tubeless

4шт.

28

10110254

WHEEL ASSY.

15 x 10 lb SAE, Silver

4шт.

29

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

30

85700693

NUT,5/8" - 11, Gr C

4шт.
