Запчасти Case IH 370 TRUE-TANDEM (35.100.07) - 4-1/4 X 8 INCH TRANSPORT CYLINDER 34 FOOT TANDEM DISK (35) - HYDRAULIC SYSTEMS

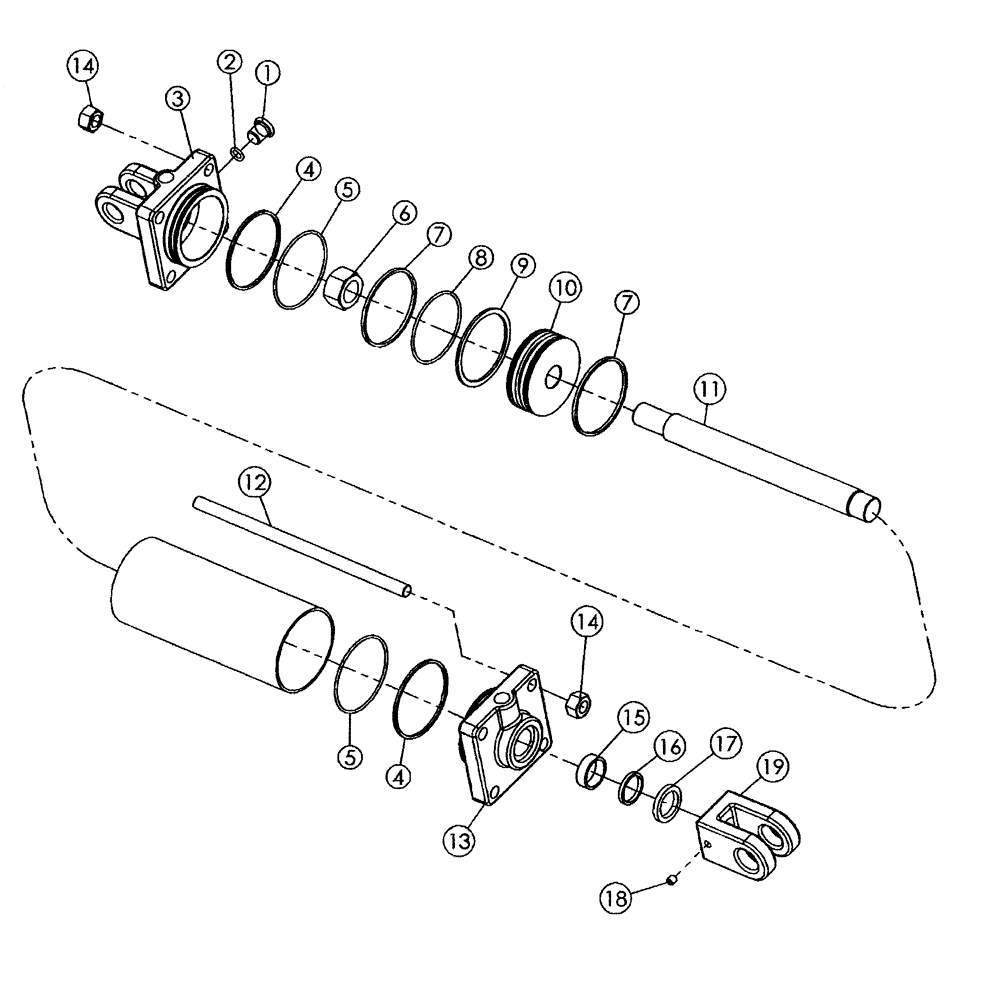

Схема запчастей Case IH 370 TRUE-TANDEM - (35.100.07) - 4-1/4 X 8 INCH TRANSPORT CYLINDER 34 FOOT TANDEM DISK (35) - HYDRAULIC SYSTEMS
16
12
18
15
19
7
14
7
13
8
11
2
5
5
4
17
1
4
6
9
14
3
10

Артикул

Название

Примечание

Количество

84281668

CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

4 X 8 cyl

1шт.

84281668R

REMAN-HYD CYLINDER

370 TRUE-TANDEM 19'-37' DISK HARROW, RMX370 TANDEM DISK (6/03-), Both 4.0 X 8 cyl, 4-1/4 x 8 Inch, Rephasing

1шт.

84281668C

CORE-HYD CYLINDER

Return Number

1шт.

84281668

CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

4-1/4 x 8 Inch, Rephasing, Inc. 1 - 19

1шт.

84281668R

REMAN-HYD CYLINDER

370 TRUE-TANDEM 19'-37' DISK HARROW, RMX370 TANDEM DISK (6/03-), Both 4.0 X 8 cyl, 4-1/4 x 8 Inch, Rephasing

1шт.

84281668C

CORE-HYD CYLINDER

Return Number

1шт.

47576396R

REMAN-HYD CYLINDER

Reman Double Acting, 35.05mm Rod, 203.2mm Stroke

1шт.

47576396C

CORE-HYD CYLINDER

Return Number

1шт.

84262936

CYLINDER,Double Acting, 38.1mm Rod, 203.2mm Stroke

4-1/4 x 8, Inc. 1 - 19

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

3

87425784

CYLINDER END CAP

Clevis Base End

1шт.

3

87409389

CLEVIS,1 -1/2" - 12

1шт.

6

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

10

87409473

PISTON

Cylinder

1шт.

11

87393647

PISTON ROD

1шт.

Chrome Rod

1шт.

11

87409454

PISTON

1шт.

Black Rod (Nitro-Steel)

1шт.

12

87409486

BOLT

Tie Rod

4шт.

12

87409491

THREADED TIE-ROD

1шт.

13

87409398

HEAD

Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409389

CLEVIS,1 -1/2" - 12

Rod End

1шт.

87409041

SEAL KIT

1шт.

Inc. 4 - 5, 7 - 9, 15 - 17

1шт.

Выбрано товаров: 26
