Запчасти Case IH 370 TRUE-TANDEM (35.100.02) - 25 FOOT WING FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS

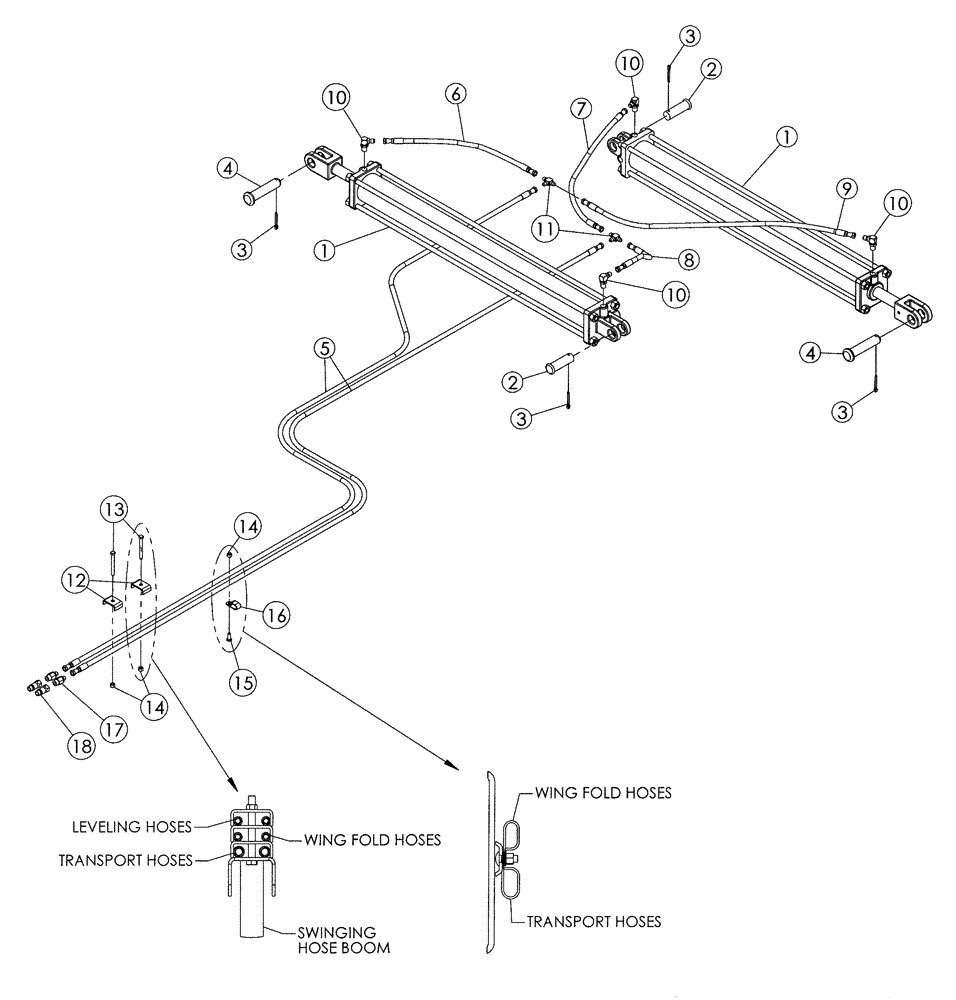

Схема запчастей Case IH 370 TRUE-TANDEM - (35.100.02) - 25 FOOT WING FOLD HYDRAULICS (35) - HYDRAULIC SYSTEMS
1
10
10
11
14
13
5
10
10
6
2
14
8
3
15
7
17
3
4
16
3
4
18
1
3
2
9
12

Артикул

Название

Примечание

Количество

1

87388875

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

4 In x 42 In, 25 ft

2шт.

See Figure 08-08

1шт.

Chrome Rod

1шт.

2

87388875R

REMAN-HYD CYLINDER

RMX370 TANDEM DISK (6/03-), 370 TRUE TANDEM 19'-37' DISK HARROW, Both 4 In x 42 In, 25 ft, Chrome Rod

2шт.

2

87388875C

CORE-HYD CYLINDER

Return Number

2шт.

1

87388875

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

4 x 42, 25 ft

2шт.

See Figure 08-08

1шт.

Black Rod (Nitro-Steel)

1шт.

2

87388875R

REMAN-HYD CYLINDER

RMX370 TANDEM DISK (6/03-), 370 TRUE TANDEM 19'-37' DISK HARROW, Both 4 In x 42 In, 25 ft, Black Rod (Nitro-Steel)

2шт.

2

87388875C

CORE-HYD CYLINDER

Return Number

2шт.

2

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

2шт.

3

432-2032

COTTER PIN,5/16" x 2"

4шт.

4

439-52088

HEADED PIN,31.75mm OD x 139.7mm L

2шт.

5

337157A1

HOSE ASSY.,6.4mm ID x 6860mm L

1/4 In x 270 In

2шт.

6

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

1шт.

7

97638C1

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm, SAE 100 R1

1шт.

8

1969386C1

HOSE

1/4 In x 23 In

1шт.

9

147876C1

HYDRAULIC HOSE

1/4 In x 45 In, 25 ft

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

4шт.

11

218-593

TEE,9/16"-18, 37 Degree

2шт.

12

06200125

HOSE CLAMP

6шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(2 clamps)

2шт.

13

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(3 clamps)

2шт.

14

86992213

NUT

3/8, NC

1шт.

15

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

16

22510700

HOSE CLAMP,15.86mm

Cushion, 5/8

1шт.

17

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

2шт.

18

25705041

COUPLING

3/4 SAEF - Male ISO

2шт.

Выбрано товаров: 28
