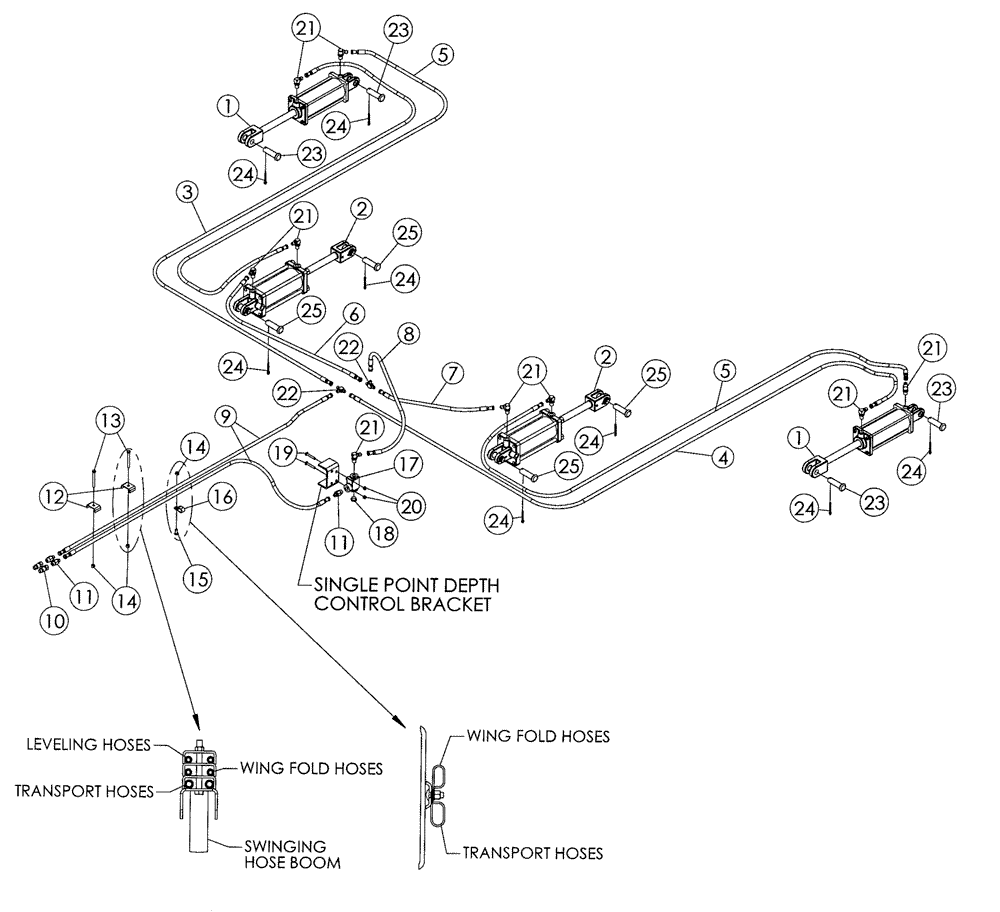

Запчасти Case IH 340 (35.100.01) - TRANSPORT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84262947

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

Hydraulic, 3.5 x 8, Rephase, 19 - 22 ft, Monarch

2шт.

Chrome Rod

1шт.

1

84255910

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

Replaces 87423771 - Eagle

2шт.

84255910R

REMAN-HYD CYLINDER

340, RMX340 (6/03-)

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

1

84262946

HYDRAULIC CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

Hydraulic 3.75 x 8, Rephase, Main Lift, 25 - 31 ft

2шт.

Chrome Rod

1шт.

1

84262946R

REMAN-HYD CYLINDER

340 TRUE-TANDEM DISK HARROW Hydraulic, RMX340 TANDEM DISK (6/03-), Both 3.75 x 8, Rephase, Main Lift, 25 - 31 ft

2шт.

1

84262946C

CORE-HYD CYLINDER

Return Number

2шт.

1

84281668

CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

Hydraulic, 4 x 8, Rephase, Main Lift, 34 ft

2шт.

Chrome Rod

1шт.

2

84262946

HYDRAULIC CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

3.75 x 8, Rephase, Main Lift, 19 - 22 ft

2шт.

Chrome Rod

1шт.

84262946R

REMAN-HYD CYLINDER

340, RMX340 (6/03-)

2шт.

84262946C

CORE-HYD CYLINDER

Return Number

1шт.

2

84281668

CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

Hydraulic, 4 x 8, Rephase, Main Lift, 25 - 31 ft

2шт.

2

84281668R

REMAN-HYD CYLINDER

340 TRUE-TANDEM DISK HARROW, Main Lift, 34 ft, RMX340 TANDEM DISK, Main Lift, 25 - 31 ft (6/03-), Both Hydraulic, 4 x 8, Rephase

2шт.

2

84281668C

CORE-HYD CYLINDER

Return Number

2шт.

2

47576396R

REMAN-HYD CYLINDER

Reman Double Acting, 35.05mm Rod, 203.2mm Stroke

2шт.

2

47576396C

CORE-HYD CYLINDER

Return Number

2шт.

Chrome Rod

1шт.

2

87388863

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 203.2mm Stroke

Hydraulic, 4.25 In x 8 In, Rephase, Main Lift, 34 ft

2шт.

Chrome Rod

1шт.

2

87388863R

REMAN-HYD CYLINDER

Remanufactured Hydraulic Cylinder

2шт.

2

87388863C

CORE-HYD CYLINDER

Return Number, HYD. CYLINDER

2шт.

3

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

19 ft

1шт.

3

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8 In x 185 In, 22 ft

1шт.

3

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

3/8 In x 225 In, 25 ft

1шт.

3

1284259C1

HYDRAULIC HOSE

3/8 In x 250 In, 28 - 34 ft

1шт.

4

1284252C1

HYDRAULIC HOSE

3/8 In x 140 In, 19 ft

1шт.

4

1284254C1

HYDRAULIC HOSE

3/8 In x 170 In, 22 ft

1шт.

4

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

3/8 In x 210 In, 25 ft

1шт.

4

1284314C1

HYDRAULIC HOSE

3/8 In x 235 In, 28 - 34 ft

1шт.

5

139519C2

HYDRAULIC HOSE

3/8 In x 135 In, 19 ft

2шт.

5

1284298C1

HYDRAULIC HOSE

3/8 In x 160 In, 22 ft

2шт.

5

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8 In x 185 In, 25 ft

2шт.

5

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

3/8 In x 210 In, 28 - 31 ft

2шт.

5

435694A1

HYDRAULIC HOSE

3/8 In x 190 In, 34 ft

2шт.

6

1285380C2

HYDRAULIC HOSE

3/8 In x 50 In, 19 - 31 ft

1шт.

6

95778C1

HYDRAULIC HOSE,9.65 mm ID x 1778.00 mm, SAE 100 R1

1шт.

7

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

19 - 31 ft

1шт.

7

1285380C2

HYDRAULIC HOSE

3/8 In x 50 In, 34 ft

1шт.

8

1284323C1

HYDRAULIC HOSE

3/8 In x 15 In, 19 - 31 ft

1шт.

8

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

34 ft

1шт.

9

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8 In x 185 In, 19 - 31 ft

2шт.

9

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

3/8 In x 210 In, 34 ft

2шт.

10

25705041

COUPLING

3/4 SAEF - Male ISO

2шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

3шт.

12

06200125

HOSE CLAMP

2шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(2 clamps)

2шт.

13

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(3 Clamps)

2шт.

14

86992213

NUT

3/8, NC, Lock

1шт.

15

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

16

22510700

HOSE CLAMP,15.86mm

Cushion, 5/8

1шт.

17

396150A1

VALVE, CONTROL

Hydraulic Depth

1шт.

396151A1

KIT

Hydraulic Depth (For 396150A1)

1шт.

18

214389

PLUG,3/4" - 16 ORB

1шт.

19

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

2шт.

20

86992212

NUT

5/16, NC, Lock

2шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

9шт.

22

218-593

TEE,9/16"-18, 37 Degree

9/16 JICM

2шт.

23

87735776

PIN,25.4mm OD x 111.5mm L

1 Clevis

4шт.

24

432-1632

COTTER PIN,1/4" x 2"

8шт.

25

87735776

PIN,25.4mm OD x 111.5mm L

1 Clevis, 19 - 31 ft

4шт.

25

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

34 ft

4шт.
