(90.100.AA[02]) - HEAVY DUTY EYEBOLT UPGRADE KIT LEFT 340

Запчасти Case IH 340 (90.100.AA[02]) - HEAVY DUTY EYEBOLT UPGRADE KIT LEFT 340 (90) - PLATFORM, CAB, BODYWORK AND DECALS

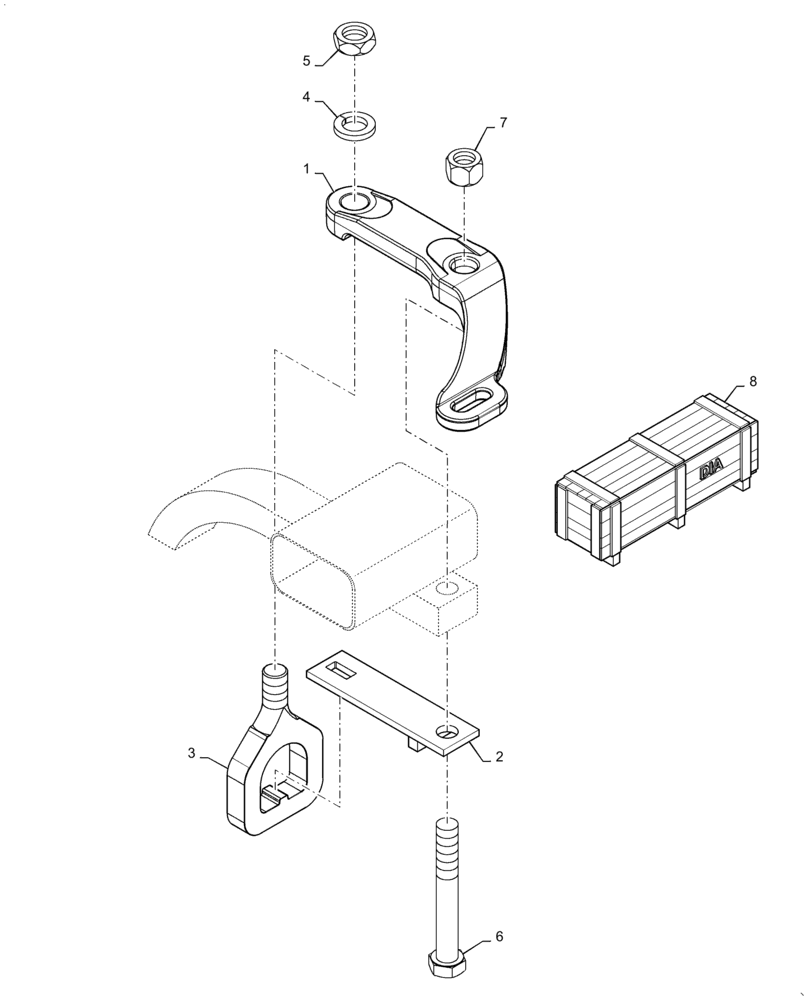

Схема запчастей Case IH 340 - (90.100.AA[02]) - HEAVY DUTY EYEBOLT UPGRADE KIT LEFT 340 (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
5
8
7
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47762497

MOUNT

Scraper 1" Eyebolt 340 Left

1шт.

2

84559560

RETAINER

1шт.

3

84554629

EYEBOLT

1шт.

4

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.

5

87553819

JAM NUT

1.000-8

1шт.

6

87477172

BOLT

.875 X 6.50

1шт.

7

87012309

LOCK NUT,7/8"-9, GB

1шт.

8

47762401

KIT

Kit HD Eye Bolt 340 LH Incl 1 - 7 Ins Sheet 47708608

1шт.
