(90.100.AA[01]) - HEAVY DUTY EYEBOLT UPGRADE KIT 340 RIGHT

Запчасти Case IH 340 (90.100.AA[01]) - HEAVY DUTY EYEBOLT UPGRADE KIT 340 RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

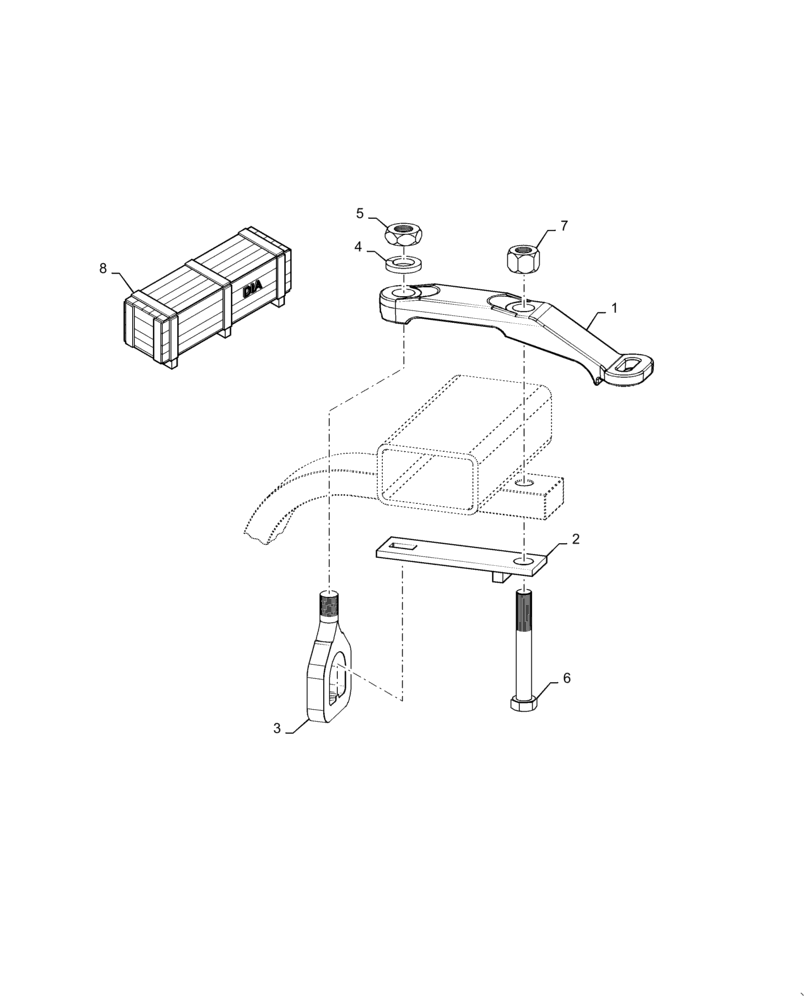

Схема запчастей Case IH 340 - (90.100.AA[01]) - HEAVY DUTY EYEBOLT UPGRADE KIT 340 RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
2
6
4
3
7
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47762493

MOUNT

Scraper 1" Eye Bolt

1шт.

2

84559560

RETAINER

1шт.

3

84554629

EYEBOLT

1шт.

4

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.

5

87553819

JAM NUT

1шт.

6

87477172

BOLT

1шт.

7

87012309

LOCK NUT,7/8"-9, GB

1шт.

8

47762399

KIT

heavy duty eyebolt upgrade kit Incl 1 - 7 Ins Sheet 47708608

1шт.
